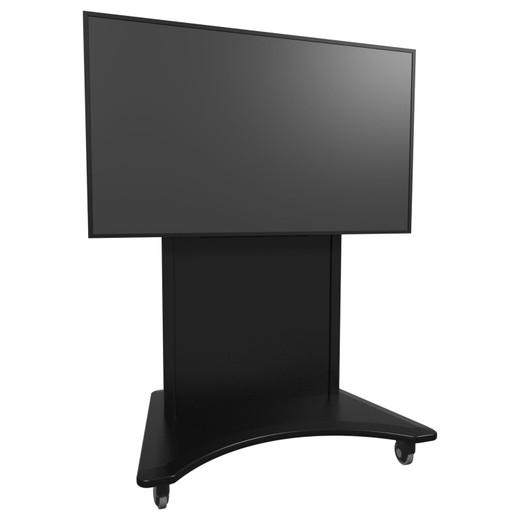

Middle Atlantic FVS-1200EC-BHA5 FlexView Electric Lift IFP Display Cart

The Middle Atlantic FVS-1200EC-BHA5 is a motorized interactive flat panel display cart built for conference rooms, briefing centers, and command suites where a fixed-height mount simply does not work. The electric lift mechanism lets a single operator reposition a panel up to 102 inches diagonally without tools or assistance — a practical necessity when the same room cycles between seated presentations, standing reviews, and ADA-accessible configurations.

Overview

Manufactured in the USA and TAA compliant, the FVS-1200EC-BHA5 combines an HPL wood-finish cabinet with a black powder-coat steel base. The finished unit ships at 300 lbs and is UL-rated to hold 320 lbs of display and peripheral load — headroom you will appreciate when mounting a large-format commercial panel with attached peripherals. The cart measures 47.31 in wide × 34.67 in deep × 68.98 in tall, sized to clear standard door openings while providing a stable footprint on a rolled-out operations floor.

Key Features

• Electric Lift to 102-in Panels: The motorized column raises and lowers displays up to 102 in diagonal, accommodating commercial IFPs that are too large and heavy for manual height-adjust poles. One button press repositions the screen — no wrenches, no two-person lift.
• 190 lb Weight Capacity: The mount assembly is rated for 190 lbs of display payload, covering virtually every commercial IFP in current production. The cart structure itself is UL-rated to 320 lbs total, so ancillary gear mounted to the rack section does not eat into your panel budget.
• Integrated 10-32 Rack Rail: Onboard 10-32 rack rails with 4.3 in of usable depth let you rack a small AV receiver, PC, or codec directly on the cart. Everything travels together — no separate equipment trolley required.
• 8-Outlet NEMA 5-15R Power Strip, 10-ft Cord: Eight NEMA 5-15R receptacles are built into the cabinet. The 10-ft (3.1 m) power cord gives enough slack to position the cart away from a wall outlet without an extension cord — a recurring headache in rooms with limited floor boxes.
• HPL Wood Finish, Black Base: The high-pressure laminate cabinet surface is durable against daily contact in high-traffic briefing rooms and holds up to repeated sanitization cycles better than painted MDF alternatives.
• TAA Compliant, Made in USA: Qualifies for GSA Schedule purchases and federal facilities contracts without a waiver. Country of origin is confirmed USA for all Federal Acquisition Regulation purposes.

Integration & Compatibility

The FVS-1200EC-BHA5 (often searched as FVS 1200EC BHA5) accepts standard VESA-pattern monitor mounting hardware included in the package. The 10-32 rack rail section integrates with standard 10-32 rack-mount equipment. Review your panel's VESA pattern and weight against the 190 lb capacity before ordering — most 86-in to 98-in commercial IFPs fall well within range, but some dual-display configurations may approach the limit. The NEMA 5-15R outlets are standard 15A receptacles; panels or PCs drawing more than 15A total will require a separate circuit.

Frequently Asked Questions

Q: What is the maximum screen size the FVS-1200EC-BHA5 supports?

A: The cart is rated for displays up to 102 inches (259.1 cm) diagonal.

Q: Is the FVS-1200EC-BHA5 TAA compliant?

A: Yes. It is TAA compliant and manufactured in the USA, qualifying it for GSA Schedule and federal procurement.

Q: How many power outlets does the cart include?

A: Eight NEMA 5-15R outlets are built in, served by a 10-ft power cord.

Q: What is the weight capacity for the display?

A: The monitor mount is rated for 190 lbs (86.2 kg). The overall UL-rated cart load capacity is 320 lbs (145.2 kg).

Q: Does the cart include rack mounting capability?

A: Yes. It includes 10-32 rack rails with 4.3 inches of usable depth for mounting AV or compute equipment.

Q: What are the overall cart dimensions?

A: 47.31 in wide × 34.67 in deep × 68.98 in tall (120.2 cm × 88.1 cm × 175.2 cm).

James Everett

The FVS-1200EC-BHA5 stands out in the Middle Atlantic FlexView line specifically because of its electric lift column — a feature that matters the moment you are deploying 85-in or larger IFPs in multi-use spaces. At 300 lbs shipped and a 320 lb UL load rating, this cart is engineered for commercial-grade IFPs, not consumer TVs.

Technical Highlights:

• Electric Lift, 102-in Max: Motorized height adjustment covers the full range of current large-format commercial panels without manual effort — critical for ADA compliance in federal or public-sector briefing rooms.
• 320 lb UL Load / 190 lb Display Capacity: The split between display capacity (190 lb) and total cart capacity (320 lb) tells you there is real structural budget for rack-mounted gear — not just a sticker number on the cart frame.
• 8 × NEMA 5-15R, 10-ft Cord: Eight outlets on a 10-ft cord is the right spec for a self-contained AV station: panel, PC, codec, and a PoE injector can all terminate here without a separate power strip on the floor.

Deployment Considerations:

• The 4.3-in usable rack depth is shallow — verify your codec or mini-PC chassis fits before ordering rack equipment to co-mount on this cart.
• At 47.31 in wide and 300 lbs, confirm your elevator and door clearances before delivery; repositioning post-delivery in a fully built-out space is a two-person job at minimum.

The FVS-1200EC-BHA5 is the right call for government briefing centers, federal operations rooms, and enterprise boardrooms that require TAA-compliant, ADA-flexible large-format display infrastructure with integrated power and rack space — all on a single mobile platform.
