Middle Atlantic FRM Dstand 66WX75H Fstd D5055 D8 WHT - FM-DS-6675FS-GD8W

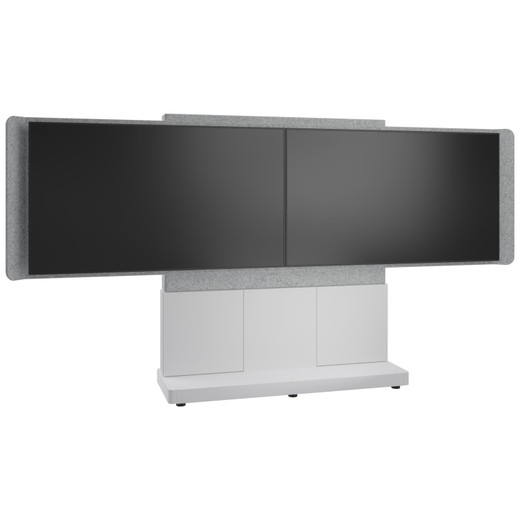

Middle Atlantic FM-DS-6675FS-GD8W Forum Collaboration Display Stand

Overview

The Middle Atlantic FM-DS-6675FS-GD8W is a free-standing display and rack stand from the Middle Atlantic Forum series, engineered for command centers, control rooms, and collaboration spaces where wall-mounting is not an option. At 66 inches wide and 74.5 inches tall, this unit supports two displays simultaneously (50"–55" each) and integrates a 3-bay rack section — giving integrators a single footprint that handles both screen mounting and equipment housing. It ships in Designer White with Silver Gray accents, positioning it for finished environments like enterprise NOCs, broadcast suites, and government ops rooms. TAA compliance makes it eligible for federal procurement.

Compatibility

Designed for flat-panel displays in the 50"–55" size range, with a mounting depth that adjusts between 7.78 in and 16.78 in to accommodate varying display chassis depths — covers most commercial-grade displays from manufacturers such as Samsung, LG, and NEC in that size class. The integrated rack section uses standard 10-32 rack rail threading, making it compatible with any 10-32 rack-mount equipment up to 4 RU per bay. Each rack bay supports up to 50 lbs, and each display arm supports up to 150 lbs — sufficient for commercial panels in the supported size range. Part of the Forum collaboration furniture line, it pairs with other Forum Series components including shrouds, cable management accessories, and worksurface extensions for full console builds. Review the rack furniture planning guide if you are sizing a multi-unit console run.

Installation Notes

At 308 lbs assembled (374.55 lbs shipping weight), floor load and two-person installation are non-negotiable — plan accordingly before scheduling the install. The free-standing base requires a level surface; no wall anchoring is required, but seismic or tip-over restraints should be evaluated for applicable building codes. Overall footprint is 66 in W x 20 in D — verify aisle clearance and door widths before delivery. The 4 RU rack integration across 3 bays is shallow-depth oriented; confirm your specific equipment fits within the 16.78 in maximum mounting depth before specifying rack-mount accessories.
