Middle Atlantic FRM Dstand 48WX75H Fstd S5665 A3 BLK - FM-DS-4875FS-BA3B

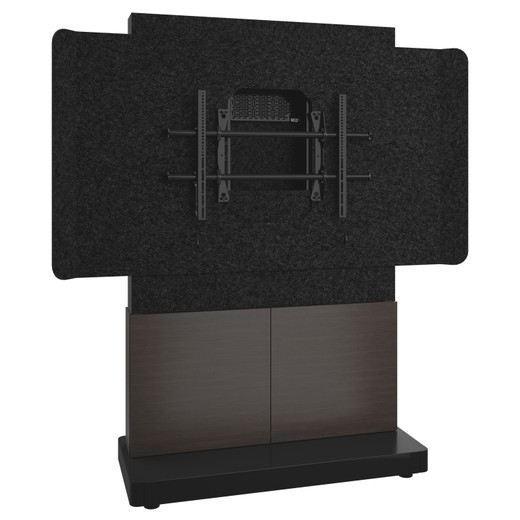

Middle Atlantic FM-DS-4875FS-BA3B Forum Collaboration Display Stand with Rack Bays

Overview

The Middle Atlantic FM-DS-4875FS-BA3B is a free-standing display and rack integration unit from the Middle Atlantic Forum Collaboration Suite line. At 48 inches wide and 74.5 inches tall, it mounts one large-format display (56"–65") while providing two integrated 10-32 rack bays — 4 RU total — for co-locating AV or security equipment directly beneath the screen. That combination eliminates the need for a separate equipment rack alongside a display pedestal, which matters in control rooms, dispatch centers, and lobby installations where floor space is constrained. FM-DS-4875FS-BA3B is TAA-compliant, making it eligible for US federal, state, and education procurement requiring domestic-origin products.

Compatibility

Designed for displays in the 56"–65" size range with a product weight up to 150 lbs (68 kg). Mounting depth adjusts between 7.78 in and 16.78 in (42.6 cm max), accommodating most commercial flat-panel displays in that size class — including large-format commercial video displays from manufacturers such as Samsung, LG, and NEC in the QM/QE and E/P series ranges with VESA patterns that fall within the bracket envelope. Each rack bay supports up to 50 lbs (22.6 kg), suited for NVR appliances, media players, or PoE switches in the typical sub-2U form factor. The Forum series finish — Asian Night (black and charcoal gray) — integrates with other Middle Atlantic rack furniture in the Forum family for matched deployments across multi-station control environments.

Installation Notes

Unit ships at 323 lbs (146.5 kg) — plan for two-person lift and pallet delivery access. Installed weight with a fully loaded display and rack equipment can approach or exceed 450 lbs; verify floor load rating before placement. Rack rails are 10-32 threaded, compatible with standard rack mounting hardware and cage nut systems. Overall footprint is 48 in W × 20 in D — confirm aisle clearance for rear cable management access before positioning. MDF and steel construction with acoustic felt (PET) panels; avoid sustained moisture exposure in the installation environment.
