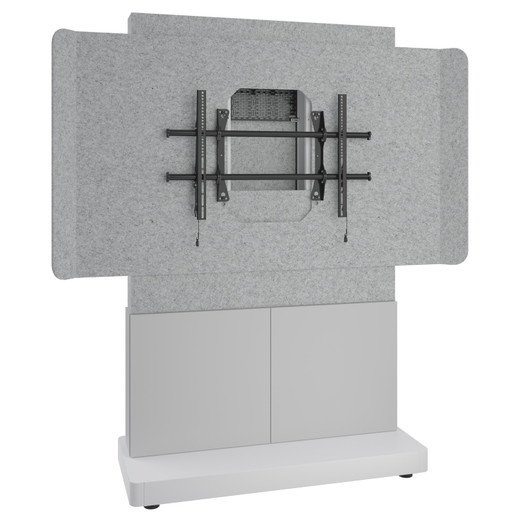

Middle Atlantic FM-DS-4875FS-CD8W Forum Collaboration Display Stand with Shroud

Overview

The Middle Atlantic FM-DS-4875FS-CD8W is a free-standing display and rack integration unit from the Forum Collaboration Suite, engineered for operations centers, command rooms, and video wall deployments where a single large-format display and rack-mounted gear must share a unified footprint. At 48 inches wide and 74.5 inches tall, this stand accepts displays from 66 to 75 inches — anchored to a mounting depth range of 7.78 to 16.78 inches to accommodate varying panel thicknesses without shimming. The Designer White finish with Silver Gray accents suits modern briefing room and federal ops environments. The FM-DS-4875FS-CD8W ships TAA-compliant and is manufactured in the USA, satisfying procurement requirements on government and federally funded contracts without additional documentation overhead.

Compatibility

Designed around displays in the 66–75 inch class on standard VESA-pattern mounts. The integrated rack section uses 10-32 threaded rail — compatible with any standard EIA-310 rack equipment including patch panels, AV receivers, network switches, and cable management. The stand accommodates two rack bays at 4 RU total capacity, with each bay rated for 50 lbs (22.6 kg) — sufficient for 1U or 2U AV processors, switchers, or power distribution units. Display weight capacity is 150 lbs (68 kg), covering virtually all commercial panels in the supported size range. Part of the Middle Atlantic Forum series, making it compatible with Forum-series accessory shrouds, cable covers, and side panels. Pairs naturally with rack enclosures and accessories and integrates into broader AV furniture and mounting deployments.

Installation Notes

Mounting depth adjusts between 7.78 and 16.78 inches — verify your panel's depth and VESA offset before ordering; panels near the 16.78-inch limit leave minimal clearance for cable dress behind the display. At 253 lbs product weight and 328 lbs shipping weight, plan for a two-person installation minimum and confirm floor load capacity at the install site, particularly on raised access flooring common in network operations center builds. The free-standing base does not require wall anchoring under normal conditions, but seismic or high-traffic environments may warrant supplemental anchoring per local code. Cable routing through the shroud and into the rack bays should be planned before the display is mounted — access tightens considerably once the panel is in place. Use standard 10-32 rack screws and cage nuts for equipment mounting in the integrated bays; floating nut strips are recommended for frequent equipment changes. Verify final placement before securing as the fully loaded unit is not practical to reposition.
