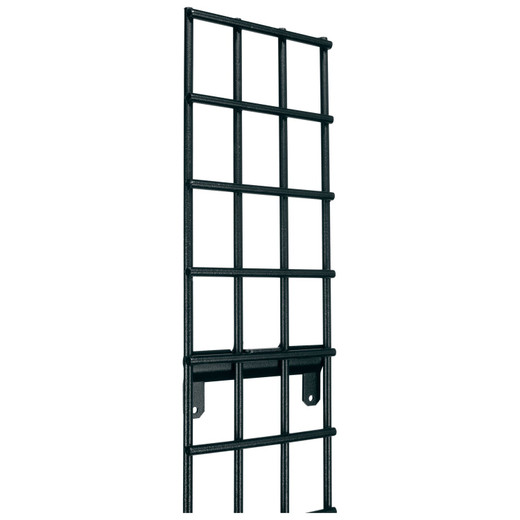

Middle Atlantic Forward 3 W Wire Lace Fits 24U-27U 1PC - FWD-LACE-WB3-24-27

Middle Atlantic FWD-LACE-WB3-24-27 Forward Vertical Wire Lace for 24U–27U Racks

The Middle Atlantic FWD-LACE-WB3-24-27 is a forward-mount vertical wire lace panel engineered for structured cable routing in 24U and 27U open-frame and enclosed rack systems. At 3 inches wide and 42.09 inches tall, it occupies 24 rack units of vertical real estate while keeping your power, data, and signal bundles organized, forward-accessible, and away from active equipment airflow paths. If your rack builds have been suffering from cable drag across adjacent 1U gear or tech complaints about tracing runs during maintenance, this is the component that solves it at the physical layer.

Key Features

• Forward-Mount Orientation (42.09 in / 106.9 cm tall): The "Forward" designation means the lace panel positions cabling in front of the rack rail plane rather than behind it — cables stay accessible for adds, moves, and changes without pulling equipment. At 42.09 inches, it spans the full usable height of a 24U or 27U cabinet in a single piece, eliminating stacked segments and mid-run gaps where bundles tend to migrate out of lane.
• 3-Inch Channel Width: The 3-inch (7.6 cm) wide wire grid accommodates medium-to-large cable bundles — appropriate for consolidated runs of Cat6, fiber patch, and power cord dressing on a fully populated rack. Narrower 1.5" or 2" guides work for light builds; at 3", you have margin for growth without a hardware swap.
• Steel Construction: The panel is fabricated from steel — not plastic — which matters in high-density installs where cable bundles can reach significant cumulative weight. Steel resists flex and distortion under load, so the channel geometry stays true over the life of the rack build. Black finish blends with standard rack hardware.
• 0.56-Inch Profile Depth: At just 0.56 inches (1.4 cm) deep, the FWD-LACE-WB3-24-27 projects minimally into the front cabinet opening. That shallow footprint preserves usable rack depth for deep 1U/2U equipment and keeps the front door clearance intact on enclosed cabinets.
• Mounting Hardware Included: The panel ships with mounting hardware, so installation doesn't require a separate fastener run. Standard rack-rail compatibility means it drops into any Middle Atlantic rack and most EIA-310-compliant cabinets without modification.
• Single-Piece Unit (1PC): This listing covers one wire lace panel. For a dual-sided or multi-bay run, plan your quantity accordingly — a 27U two-post build with runs on both vertical rails needs two units.
• 6.5 lb Assembled Weight: At 6.5 lbs (3 kg), the steel panel adds negligible load relative to a populated rack's total weight, but it's worth noting for overhead ladder tray transitions where cumulative accessory weight is tracked against structural limits.

Integration & Compatibility

The FWD-LACE-WB3-24-27 is sized for Middle Atlantic rack systems in the 24U–27U range and integrates with the broader rack cable management lineup including horizontal lace bars, D-rings, and patch panel organizers. It mounts to standard EIA-310 rack rails, making it compatible with third-party open-frame and enclosed network racks and enclosures that follow that spec. If you're building out a structured AV rack system or a security head-end with NVRs, switches, and patch panels stacked in a single cabinet, pairing this vertical lace with a horizontal cable manager at the top and bottom gives you a complete cable containment envelope. Not designed for overhead cable tray or wall-channel applications — it is a rack-rail-mount component only.

Frequently Asked Questions

Q: What rack sizes does the FWD-LACE-WB3-24-27 fit?

A: The FWD-LACE-WB3-24-27 is designed for 24U and 27U racks. Its 42.09-inch height spans the full vertical rail on cabinets in that size range.

Q: How wide is the cable channel on the FWD-LACE-WB3-24-27?

A: The wire lace channel is 3 inches (7.6 cm) wide, suitable for medium to large cable bundles including consolidated Cat6, fiber, and power cord runs on a densely populated rack.

Q: Does the FWD-LACE-WB3-24-27 include mounting hardware?

A: Yes. Mounting hardware is included with the panel. It mounts to standard EIA-310 rack rails.

Q: What material is the FWD-LACE-WB3-24-27 made from?

A: Steel with a black finish. Steel construction resists flex and distortion under the cumulative weight of dressed cable bundles.

Q: How much rack depth does the FWD-LACE-WB3-24-27 consume?

A: The panel is only 0.56 inches (1.4 cm) deep, so it projects minimally into the front of the cabinet and preserves clearance for equipment and front doors.

Q: Does this listing include one or two wire lace panels?

A: This listing covers a single panel (1PC). For dual-rail or multi-bay builds, order one unit per vertical run.

James Everett

The FWD-LACE-WB3-24-27 is one of those components that experienced integrators spec without a second thought on 24U–27U builds — but junior techs often skip until they're elbow-deep in a rack wondering why the Cat6 bundle is flopped across a 2U firewall. The 3-inch steel channel at 0.56 inches of forward projection solves the cable containment problem without eating rack depth or requiring a second trip for hardware.

Technical Highlights:

• 42.09-inch single-piece span: Covers the full vertical height of a 24U or 27U cabinet in one panel — no joints, no mid-run gaps, no bundles migrating between segments during moves and changes.
• 3-inch channel width: Handles the consolidated runs typical of a security head-end or AV rack — Cat6 for IP cameras, fiber for NVR uplinks, and AC power cord dressing all co-routed without crowding.
• Steel at 0.56 in depth: Forward profile keeps the front door clearance intact on enclosed cabinets, and steel construction holds the channel geometry under load where plastic guides eventually bow and let bundles sag out of lane.

Deployment Considerations:

• This is a single-panel listing (1PC) — dual-rail builds on a 24U cabinet need two units; confirm your quantity before ordering to avoid a return on a time-sensitive install.
• The "Forward" mount positions cabling in front of the rail plane; if your cabinet layout requires rear cable routing (e.g., to a rear patch panel), this panel is not the right geometry — look at Middle Atlantic's rear vertical lace options instead.

This panel is the right call for security integrators building 24U or 27U head-end racks where NVRs, PoE switches, and patch panels share a single cabinet and cable accessibility during maintenance is non-negotiable.
