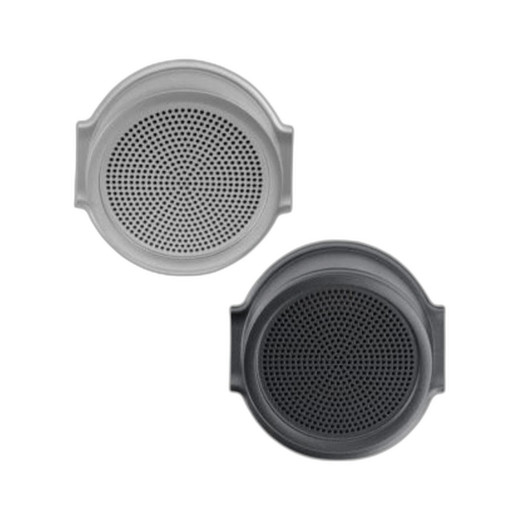

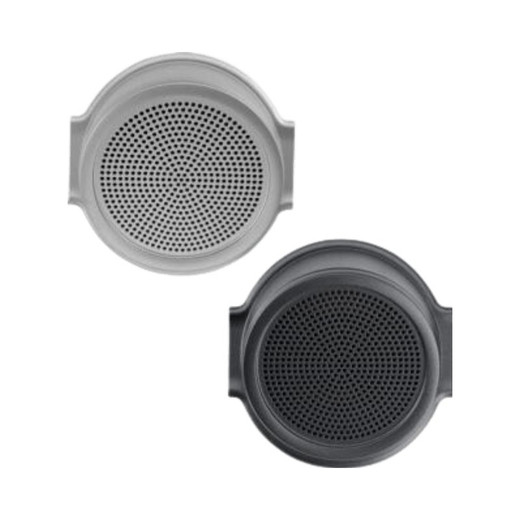

Bosch DCN-FLSP-D Flush Loudspeaker Panel Dark
The Bosch DCN-FLSP-D is a flush-mount loudspeaker panel designed for integration into Bosch DCN conference and communication systems. This audio accessory mounts directly into wall or ceiling cavities, delivering clear speech and alert audio across meeting rooms, control centers, and commercial facilities without surface-mounted enclosure clutter. The angled grille design prioritizes intelligibility in dynamic environments where meeting participants and staff require reliable audio clarity for announcements, delegate audio, and system-wide messaging.
Key Features
- Flush Mount Design: Direct cavity installation (1.6" H × 3.9" W × 3.94" D opening required) eliminates visible speaker boxes and preserves architectural aesthetics in finished spaces.
- Angled Grille: Engineering optimizes speech reproduction and reduces reflective distortion common in enclosed rooms with hard surfaces.
- DCN Ecosystem Integration: Pairs exclusively with Bosch DCN-DDI (Dual Delegate Interface) and DCN system architecture for seamless audio routing and delegate control.
- Dark Finish: Discretely blends into ceiling and wall cavities; reduces visual contrast in commercial and institutional settings.
- Compact Footprint: Fits standard cavity depth constraints in retrofit installations without major structural modification.
- Audio Clarity: Engineered for voice intelligibility (speech frequency emphasis) rather than music playback — optimized for conference, emergency, and paging scenarios.
The DCN-FLSP-D is a purpose-built audio distribution component within the Bosch DCN ecosystem. Unlike standalone loudspeakers, it requires direct wiring integration via Bosch DCN harnesses and must be paired with a DCN-DDI or equivalent system controller to function. This architecture ensures synchronized audio timing across multiple panels and maintains delegation audio routing without requiring external mixing consoles.
Cavity preparation is critical to successful installation. Wall and ceiling cavities must be cut to exact specification (1.6" H × 3.9" W × 3.94" D); undersized or oversized openings compromise acoustic sealing and may require retrofit framing. Verify structural depth before cutting — shallow cavities (<2 inches) may not accommodate mounting hardware and connector termination. The panel ships with connection details for DDI wiring — standard audio cabling will not function. Bosch DCN-specific harnesses handle impedance matching and level control at the system controller, not at the speaker terminals.
This component serves facilities where concealed audio distribution and compliance with architectural guidelines outweigh the flexibility of portable, adjustable loudspeaker placement. Conference centers, boardrooms, institutional control rooms, and facilities with rigid interior design standards are typical buyers. Emergency communication systems using DCN infrastructure also benefit from flush installation to avoid physical hazards and reduce maintenance touchpoints in critical spaces.
The DCN-FLSP-D is compatible exclusively with Bosch DCN systems — no cross-ecosystem or standalone amplifier compatibility. Facilities planning migration from legacy Bosch audio systems should confirm their current DCN controller supports the DDI interface before specifying this panel. Bosch Manufacturer Warranty applies; consult regional Bosch distributors for warranty terms and field service availability.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the DCN-FLSP-D across conference facilities, emergency operations centers, and institutional meeting spaces where architectural aesthetics and audio distribution integration demand a flush-mount solution. The real operational win is invisibility: once installed, the panel becomes part of the ceiling or wall plane, eliminating the visual clutter and potential trip/impact hazards of surface-mounted enclosures. On a 200-seat auditorium renovation, flush speakers reduced installation labor by eliminating bracket runs and visible cable dress. The trade-off is strict ecosystem lock-in — this panel works only within Bosch DCN architecture, and improper cavity preparation is the leading cause of field callbacks. We've also encountered situations where integrators ordered the panel without verifying their customer's DCN controller supported the DDI interface, resulting in non-functional installations until the system was upgraded.
Technical Highlights:
- DCN Harness Architecture: Unlike standard passive loudspeakers with simple audio in/out, the DCN-FLSP-D integrates directly into Bosch's proprietary digital communication backbone. Timing sync and delegation audio routing happen at the controller, not the speaker — this eliminates latency issues across multiple panels and ensures that delegate audio and alerts are never out of phase.
- Speech-Optimized Frequency Response: The angled grille and internal acoustic design emphasize 2–4 kHz (consonant intelligibility) and de-emphasize ultra-low frequencies. In a reverberant conference room, this design choice outperforms flat-response general-purpose speakers for voice clarity.
- Compact Cavity Requirement: 1.6" profile depth accommodates most modern drop-ceiling and drywall constructions without requiring structural backing — a major cost advantage on retrofit projects where cavity depth is limited.
- Dark Finish Discretion: The charcoal/dark grille finish blends into standard ceiling tiles and dark paint — visible in a white ceiling or light walls, but largely invisible in modern commercial finishes.
Deployment Considerations:
- Cavity sizing is non-negotiable. We've seen field retrofits where inexact cavity cuts forced installers to use filler material or trim adapter rings, degrading acoustic seal and introducing audible resonance. Use the exact template provided by Bosch; do not estimate or round dimensions.
- Verify DDI controller compatibility before ordering. Not all Bosch DCN system versions support the Dual Delegate Interface — legacy single-delegate systems will not route audio to the flush panel. Confirm system version with the customer's IT/AV lead.
- Wiring runs must use Bosch DCN harnesses with proper termination at the controller. Standard balanced audio cable will not deliver the control protocol signals required for level, muting, and delegation routing. Budget for harness procurement and qualified termination labor.
- Acoustic testing post-installation is essential. Cavity depth variations and ceiling tile density affect frequency response — perform a quick SPL sweep at typical seating distance to confirm intelligibility before closing the project.
- This is an accessory component, not a standalone product. Stock and sales velocity depend on DCN system adoption rates in your region — consult Bosch channel inventory before building customer price quotes around these panels.
The DCN-FLSP-D is the right choice for integrators specifying premium conference suites, boardrooms, and control centers where architectural concealment and system-level audio synchronization justify the ecosystem commitment. Facilities with legacy standalone audio systems or cross-manufacturer equipment should evaluate open-protocol alternatives. For Bosch DCN customers, this flush speaker panel is the gold-standard solution — explore the broader Bosch catalog to understand the full DCN architecture and compatible delegate interfaces.
