Bosch FIXED DOME 5MP HDR 3-10MM AUTO - NDI-5503-AL

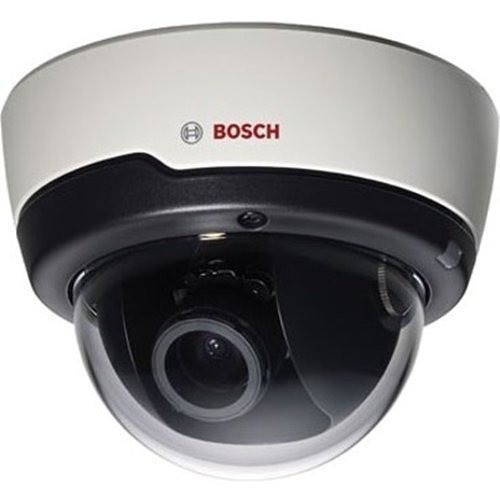

Bosch NDI-5503-AL Fixed Dome 5MP Indoor Camera with HDR and Auto Varifocal Lens

Overview

The Bosch NDI-5503-AL is a 5MP indoor fixed dome camera built around a 4–10mm motorized varifocal lens and high dynamic range imaging — a practical combination for lobby entrances, retail floors, and corporate corridors where lighting swings hard between daylight and artificial sources. If you're speccing a multi-camera deployment where every channel needs to hold up in mixed-light conditions without constant manual lens adjustment, this is the model to evaluate. Browse the full Bosch Security camera line for outdoor and specialty variants.

The NDI-5503-AL (often searched as NDI 5503 AL) ships as a surface- and suspended-ceiling-ready dome, so it fits cleanly into drop-ceiling grids without an adapter plate in most standard installs.

Key Features

• 5MP Resolution at 30 fps: Five megapixels gives you roughly 2.5× the pixel density of a 1080p camera — enough to crop and still read a face or badge at the distances typical of a 12-foot-wide corridor. Holding 30 fps eliminates the motion smear that plagues lower-frame-rate cameras on fast-moving subjects like door traffic.
• 4–10mm Auto Varifocal Lens: The motorized varifocal range means you can dial in the field of view from a wide 4mm angle (roughly 90°+ horizontal) down to a tighter 10mm (roughly 35°–40° horizontal) without physically opening the camera after mount — useful when scene geometry is unknown at order time or when final positioning shifts during install.
• High Dynamic Range (HDR): HDR processing handles scenes where bright windows, open doors, or overhead skylights blow out the image in a standard camera. On a reception desk with a glass facade behind it, HDR keeps both the subject and the background in a usable exposure — the difference between evidence-grade footage and a silhouette.
• H.265 / H.264 / M-JPEG Compression: H.265 typically cuts storage requirements 40–50% versus H.264 at equivalent quality settings. On a 24/7 multi-camera recorder, that halves your drive spend or doubles your retention window. M-JPEG remains available for VMS integrations that require frame-accurate individual images.
• Two-Way Audio: Onboard two-way audio lets you tie this camera into an intercom or announcement workflow — front-desk verification, access point challenge/response — without running a separate audio device to the same location.
• Flexible Power Input — PoE or 12VDC/24VAC: Standard PoE (802.3af class) means you can run a single Cat5e/6 cable from your PoE switch with no separate power supply. The 12VDC/24VAC input gives you a fallback for legacy panel-fed installations where PoE infrastructure doesn't yet reach.
• Up to 2TB Local Storage: Onboard storage capacity up to 2TB means the camera can buffer locally during network outages — critical for sites where WAN or switch failures can't be allowed to create evidence gaps. Check your specific media slot specification before ordering high-capacity cards.
• Surface, Wall, and Suspended-Ceiling Mounting: Three certified mounting modes — surface, wall, and drop-ceiling — cover the majority of commercial interior install scenarios. No specialty bracket required for standard grid ceiling installations, which keeps deployment cost down on large-floor footprints.
• Indoor Operating Environment: Rated for indoor use. This is not the model for covered parking structures with temperature extremes, loading docks with wash-down exposure, or any environment that requires an IP ingress rating. For those applications, see outdoor-rated IP cameras with IP66 or IP67 ratings.

Integration and Compatibility

The NDI-5503-AL supports H.265, H.264, and M-JPEG streams, which aligns with every major VMS platform. Two-way audio and multi-stream output are standard on Bosch FLEXIDOME-family cameras. For PoE deployment planning, consult a PoE switch selection guide to confirm per-port and total chassis power budgets before committing to switch hardware — 5MP cameras with audio draw more than basic 2MP units. Pair with a compatible network video recorder to take full advantage of H.265 storage efficiency across all channels.

Frequently Asked Questions

Q: Can the NDI-5503-AL be used outdoors?

A: No. The NDI-5503-AL is rated for indoor use only and does not carry an IP ingress protection rating. For outdoor deployments, select a model from the Bosch outdoor camera lineup with a verified IP66 or IP67 rating.

Q: Does the NDI-5503-AL support PoE power?

A: Yes. The camera accepts standard PoE (802.3af) as well as 12VDC and 24VAC inputs, giving you flexibility to use either a PoE switch or a traditional low-voltage power supply.

Q: What compression formats does the NDI-5503-AL support?

A: H.265, H.264, and M-JPEG. H.265 is recommended for 24/7 recording to maximize storage efficiency — typically 40–50% savings over H.264 at comparable image quality.

Q: What mounting options are available for the NDI-5503-AL?

A: The camera supports surface mount, wall mount, and suspended-ceiling (drop-ceiling grid) mount. No specialty adapter is required for standard grid ceiling installations.

Q: Does the NDI-5503-AL include two-way audio?

A: Yes. Two-way audio is built in, enabling intercom-style communication or challenge/response workflows at monitored access points without a separate audio device.

Q: What is the maximum local storage supported by the NDI-5503-AL?

A: The camera supports up to 2TB of local storage, providing onboard buffering during network interruptions to prevent evidence gaps.

Marty Allison

The NDI-5503-AL is one of those cameras I keep recommending for mid-sized commercial interior projects because the 4–10mm motorized varifocal lens solves a real-world install problem: you don't always know your final framing until you're on a ladder with a ceiling tile pulled. Being able to adjust digitally after mount — without cracking the housing — saves time on commissioning across a 40-camera rollout, and at 5MP you still have headroom to crop tight without going back to add a camera.

Technical Highlights:

• 5MP / 30 fps: Sustained 30 fps at full 5MP resolution maintains temporal detail on door-traffic scenes — no ghosting on badge-tap events that 15 fps cameras routinely smear.
• HDR Imaging: High dynamic range processing is the deciding spec for any lobby or atrium camera where a glass facade or skylight sits in the background. You get readable subject detail instead of a silhouette, which is the difference between footage that holds up in review and footage that doesn't.
• H.265 Compression: At 5MP/30fps, bitrates add up fast across channels. H.265 typically cuts that load by 40–50% versus H.264 — on a 16-channel NVR running continuous recording, that's the difference between a 4TB and an 8TB storage build.

Deployment Considerations:

• The 12VDC/24VAC power input is a genuine advantage on retrofit jobs where PoE infrastructure doesn't reach a specific camera location — you can home-run low-voltage from an existing panel without re-cabling. Confirm your supply voltage before wiring; 12VDC and 24VAC are not interchangeable at the terminal.
• This is an indoor-only camera. No IP rating is listed. Do not specify this model for covered parking structures, loading docks, kitchen environments, or anywhere humidity or temperature swings exceed normal indoor commercial ranges — you'll need an IP66-rated outdoor variant for those positions.

For a corporate campus deployment covering lobbies, elevator banks, and internal corridors — where lighting is mixed, ceilings are drop-tile, and the VMS team wants H.265 to control storage costs — the NDI-5503-AL is a practical, well-matched choice.
