Panduit FRIVRA6X4LBL FiberRunner 90° Inner Vertical Angle Fitting

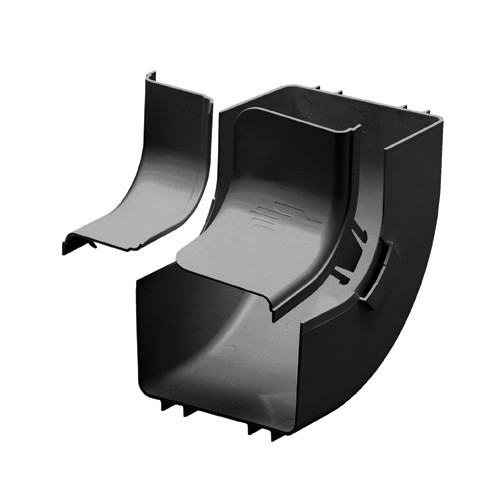

The Panduit FRIVRA6X4LBL creates a 90-degree upward transition from horizontal FiberRunner raceway to vertical cable routing in data center and telecom installations. This inner vertical angle fitting pairs with the FROVRA6X4LBL outer vertical angle to form a complete plane-change assembly, directing fiber bundles from overhead pathways down to equipment racks or from floor-level distribution to ceiling-mounted trays. Engineered for the 6x4 FiberRunner system, it maintains pathway integrity through vertical bends while meeting UL 2024A and NEBS Level 3 environmental requirements for mission-critical telecommunications infrastructure.

Key Features

• 90° inner vertical angle fitting for upward transitions from horizontal FiberRunner runs
• Pairs with FROVRA6X4LBL outer angle to create complete vertical pathway assembly
• Polycarbonate/ABS construction resists impact and environmental stress in data center conditions
• UL 2024A listed for optical fiber cable assemblies and raceways
• NEBS Level 3 compliant per Telcordia GR-63-CORE for seismic and environmental durability
• Designed for 6x4 FiberRunner system compatibility (use with 24x4 pathway sections)
• Black finish integrates with structured cabling aesthetics in telecom rooms and data halls
• RoHS-compliant materials meet environmental equipment standards

Data center and telecom fiber deployments require pathway systems that manage high-density cable bundles through complex three-dimensional routes—horizontal overhead distribution, vertical drops to equipment rows, and rack ingress points. The FRIVRA6X4LBL inner vertical angle solves the geometric challenge of transitioning from a straight horizontal FiberRunner section to a vertical descent without exceeding fiber bend-radius limits or creating congestion points that complicate MACs (moves, adds, changes). The fitting's curved inner surface guides fiber bundles smoothly through the 90-degree plane change, distributing tension across the bundle rather than concentrating stress at a sharp corner. This matters in environments where a single fiber pathway may carry dozens of MPO trunk cables or hundreds of individual fibers serving blade chassis, spine switches, or cross-connect fields.

Installation pairs this inner angle with the FROVRA6X4LBL outer vertical angle—the two components sandwich together to form the full vertical transition assembly. The inner fitting mounts first to the horizontal raceway endpoint, establishing the curve geometry. The outer angle then attaches to complete the enclosure and provide the connection point for the downstream vertical FiberRunner section. This two-piece design allows installers to pre-position cable bundles inside the inner curve before closing the assembly, simplifying fiber placement in congested pathways where post-installation cable pulls are impractical. The polycarbonate/ABS material combination delivers the rigidity needed to support cable weight in vertical runs while resisting the cracking and UV degradation common in lesser thermoplastics—critical for pathways that may remain in service for 15–20 years as the underlying fiber infrastructure is reused across multiple equipment generations.

Compliance with UL 2024A and NEBS Level 3 standards positions this fitting for telecom central offices, colocation facilities, and enterprise data centers where pathway systems must meet the same environmental and seismic resilience requirements as the active equipment they serve. NEBS Level 3 testing validates performance under seismic zone 4 earthquake simulation, rapid temperature cycling (-40°C to +65°C), and sustained humidity exposure—conditions that reveal weaknesses in pathway joints, mounting points, and material composition. UL 2024A listing confirms the assembly meets flame-spread and smoke-generation limits for plenum and riser installations, ensuring the pathway system doesn't introduce code compliance gaps when routed through HVAC return-air spaces or vertical shafts. For integrators designing structured cabling systems in financial trading floors, cloud service provider halls, or carrier hotels, these certifications remove the risk of AHJ (authority having jurisdiction) rejections during final inspections and provide the documentation trail required for LEED, TIA-942, or Uptime Institute certification audits.

Dimensions of 7.08 inches wide by 8.64 inches high establish the fitting's footprint in pathway layouts—important when calculating clearances in overhead cable tray zones or planning vertical drops in tight mechanical spaces. The fitting ships individually (one per package, five per carton), allowing project procurement to match exact transition-point counts in pathway designs without forcing bulk purchases of fittings that may not be needed. For data center builds running 10–15 parallel FiberRunner pathways from MDA (main distribution area) to equipment rows, this packaging flexibility prevents over-ordering of specialty fittings while ensuring adequate stock for the vertical transitions at each row-end termination point. Pair with Panduit FiberRunner horizontal sections, couplers, and mounting brackets to build complete overhead-to-vertical fiber routing systems that scale from small telecom rooms to hyperscale data halls.
