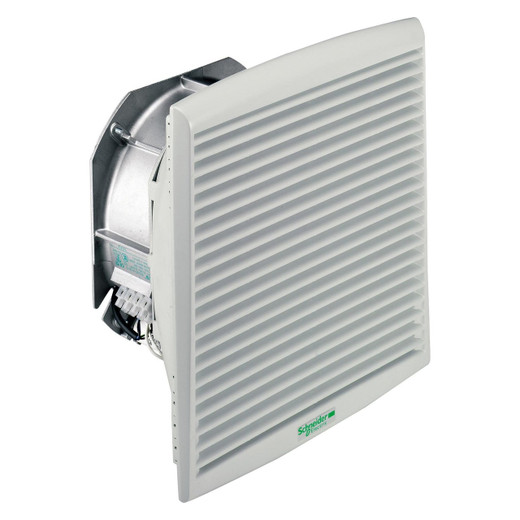

APC by Schneider Electric NSYCVF850M230PF Filterfan Concise Descriptor

Overview

The APC by Schneider Electric NSYCVF850M230PF is a 230V filterfan designed to provide 850 m³/h of airflow for enclosure cooling. This unit is critical for maintaining optimal operating temperatures within electrical enclosures, preventing component failure due to overheating. Its IP54 rating ensures protection against dust ingress and splashing water, making it suitable for demanding industrial environments where dust and moisture are present. The NSYCVF850M230PF is engineered to support the longevity and reliable operation of sensitive electronic equipment housed within control cabinets.

Compatibility

This filterfan is designed for integration into various enclosure systems that require forced ventilation. It is compatible with standard enclosure mounting patterns that accommodate its physical dimensions and airflow requirements. While not tied to specific camera or NVR models, it serves a crucial role in the supporting infrastructure for surveillance systems by ensuring the reliability of the network switches, power supplies, and recording devices housed within protected enclosures.

Installation Notes

Requires a 230V AC power source for operation. Mounting requires a standard cutout compatible with the fan's dimensions. Ensure adequate clearance for airflow intake and exhaust. The IP54 rating is maintained when properly installed and sealed within the enclosure. Electrical connections must be made by qualified personnel following local electrical codes.
