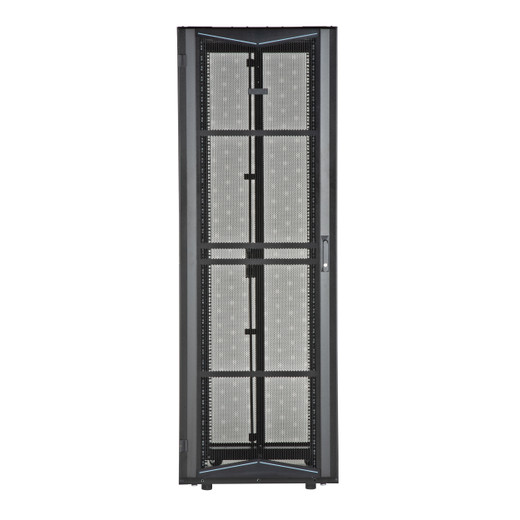

Panduit XG74522BS000D Network Cabinet

Panduit XG74522BS000D Network Cabinet

Overview

The Panduit FlexFusion™ XG74522BS000D is a 45U network cabinet engineered for high-density equipment housing in data centers, server rooms, and telecommunications spaces. Its 700mm width and 1200mm depth provide substantial vertical and horizontal space, optimizing airflow management for critical IT infrastructure. This cabinet, model XG74522BS000D, is designed to support a significant load capacity, ensuring stability for complex deployments.

Compatibility

This 45U network cabinet is designed to house standard 19-inch rack-mount equipment compliant with EIA-310-E and IEC 60297 standards. It is suitable for a wide range of IT hardware including servers, network switches, NVRs, and patch panels commonly found in enterprise and commercial AV installations. Its broad compatibility ensures integration with diverse equipment from various manufacturers.

Installation Notes

The Panduit XG74522BS000D cabinet supports a static load capacity of 3,000 lbs (1,361 kg) and a dynamic load capacity of 2,250 lbs (1,021 kg), requiring a stable, level floor for installation. Ensure adequate clearance for the 1200mm depth and 700mm width, along with access for cable management and equipment servicing. Installation should adhere to UL 2416 guidelines for safety and compliance.
