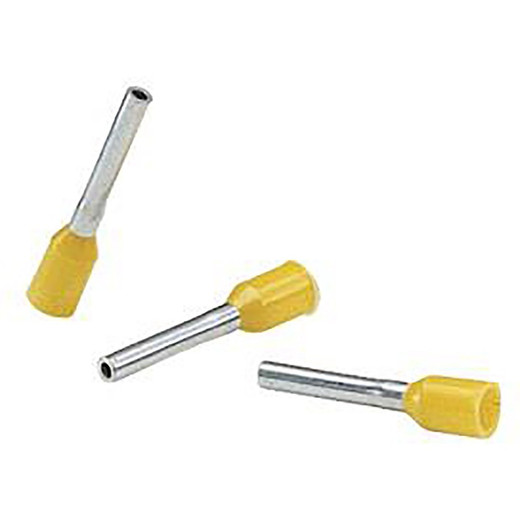

Panduit FSD77-12-D Ferrule 18 AWG .47(12MM) RE

Overview

The Panduit FSD77-12-D is a ferrule designed for terminating 18 AWG wire. It ensures a clean, secure, and reliable connection point, critical for preventing wire fraying and maintaining signal integrity in structured cabling systems. This ferrule is specifically engineered for applications requiring a 12mm (approximately 0.47 inch) termination diameter, commonly found in industrial automation and network infrastructure deployments where robust wire management is essential.

Compatibility

This ferrule is designed for use with 18 AWG stranded or solid copper conductors. It is compatible with Panduit's crimping tools and other industry-standard tools capable of applying ferrules of this size. While not specific to any single camera or network device manufacturer, it serves as a universal component for terminating wires that connect to devices requiring secure, standardized wire termination, such as network switches, power supplies, or control systems.

Installation Notes

Proper installation requires a compatible crimping tool to ensure the ferrule is securely compressed onto the wire strands. A consistent crimp is vital for electrical conductivity and mechanical strength. Ensure the wire conductor is stripped to the appropriate length before insertion into the ferrule to prevent stray strands from causing shorts or poor connections. The 12mm length provides sufficient surface area for a stable termination.
