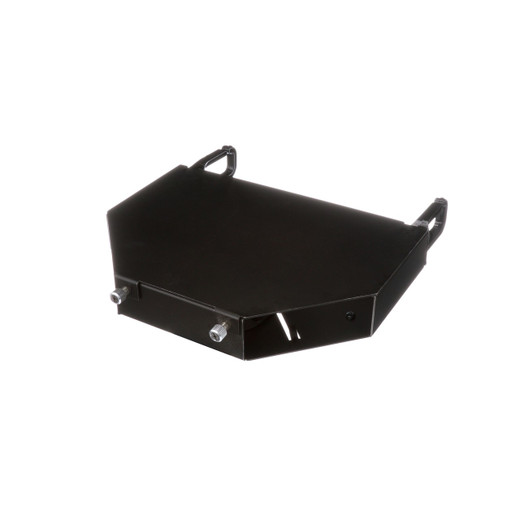

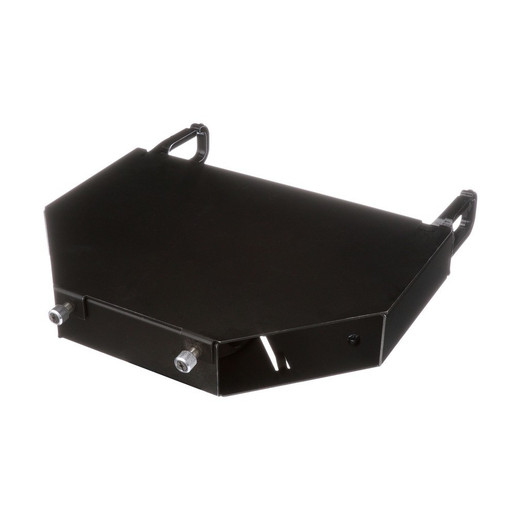

Panduit FLRME Fiber Ladder Rack Mount Enclosure

Overview

The Panduit FLRME is a 1U-profile fiber enclosure engineered as a consolidation point for overhead cable trays and underfloor fiber distribution systems. At 1.7 in. H × 10.7 in. W × 8.0 in. D (43 mm × 271 mm × 203 mm), it fits cleanly into standard ladder rack runs without consuming excessive vertical space — a real constraint in dense structured cabling environments where every rack unit counts. Built under Panduit's Opticom® fiber management line, the FLRME ships as a complete, ready-to-install kit with all the hardware you need to manage slack and protect fiber at the consolidation point.

If you are sourcing fiber infrastructure for a commercial building, data center, or enterprise campus, this enclosure belongs in the fiber optic enclosure category of your BOM — it is not a passive passthrough; it is a managed termination and slack-storage point that keeps overhead and underfloor fiber routes serviceable over the long term.

Key Features

• Compact 1.7 in. Profile: The 43.2 mm height means the FLRME sits flush within a standard ladder rack without impeding adjacent cable runs or requiring custom spacing. In tight overhead trays above suspended ceilings, this low profile is often the difference between a clean install and a forced re-route.
• Three Molded Fiber Management Rings: Integrated rings route and retain fiber inside the enclosure without sharp bends, protecting minimum bend radius on single-mode and multimode cables. This eliminates the improvised zip-tie loops that cause micro-bend attenuation over time.
• Raw Slack Spool Included: Fiber slack storage is one of the most overlooked steps in ladder rack installations. The included spool gives technicians a controlled place to coil and store excess fiber length — critical for future moves, adds, and changes without re-pulling cable.
• 100 Feet of Grommet Edging: Metal ladder rack edges are a common source of fiber jacket abrasion. The included grommet edging protects cable jackets at every bar crossing, reducing long-term attenuation caused by jacket wear — a low-cost insurance policy on expensive fiber runs.
• Hook and Loop Cable Ties: Reusable hook-and-loop ties are included so technicians can dress cables properly from day one without separate procurement. Unlike plastic zip ties, hook-and-loop fasteners allow non-destructive adjustments during MACs.
• Metal Construction, Black Finish: The all-metal enclosure handles the mechanical stresses of overhead and underfloor environments — vibration, temperature cycling, and physical contact during cable pulls — without the creep and deformation risk of plastic housings. The black powder coat is consistent with standard rack aesthetics.
• RoHS Compliant: The FLRME meets RoHS requirements, satisfying procurement mandates in healthcare, government, and enterprise accounts that restrict hazardous substances in installed infrastructure. No additional compliance documentation workaround needed.
• 10.66 in. Width (270.8 mm): This width accommodates standard 12-inch ladder rack widths while leaving clearance at both sides, so the enclosure drops in without modification on the most common ladder rack systems in the field.

Integration and Compatibility

The FLRME is designed for fiber optic cable management on overhead ladder rack and underfloor distribution systems. It functions as a midspan consolidation point — not a full patch panel — so pair it with appropriate Panduit Opticom® fiber panels, cassettes, or splice trays when you need termination capability at the same location. For structured cabling projects combining copper and fiber, the enclosure integrates cleanly alongside standard EIA-310 rack hardware without special adapters.

When planning a multi-drop overhead fiber route, review your structured cabling planning for slack allowances at each consolidation point. The FLRME's built-in slack spool handles one consolidation node; budget one unit per drop location, not one per run.

What's in the Box

• 1× Panduit FLRME Fiber Ladder Rack Mount Enclosure (black metal)
• 3× Molded fiber management rings
• 1× Raw slack spool
• 100 ft grommet edging
• Hook and loop cable ties

Frequently Asked Questions

Q: What are the exact dimensions of the FLRME?

A: The FLRME measures 1.7 in. H × 10.7 in. W × 8.0 in. D (43.2 mm × 270.8 mm × 203 mm), making it a compact 1U-profile enclosure for ladder rack and underfloor installations.

Q: Is the FLRME suitable for both overhead and underfloor fiber systems?

A: Yes. The FLRME is explicitly designed as a consolidation point for both overhead cable tray/ladder rack systems and underfloor fiber distribution, making it versatile for either physical infrastructure type.

Q: Does the FLRME include all hardware needed for installation?

A: The FLRME ships with three molded fiber management rings, a raw slack spool, 100 feet of grommet edging, and hook and loop cable ties. It is sold as a single unit (package quantity 1).

Q: Is the FLRME RoHS compliant?

A: Yes, the FLRME meets RoHS compliance standards, which satisfies procurement requirements in healthcare, government, and enterprise environments that mandate restriction of hazardous substances.

Q: What fiber types is the FLRME compatible with?

A: The FLRME is a mechanical enclosure and slack management point within the Panduit Opticom® fiber system. It is not fiber-type specific — it accommodates both single-mode and multimode cable runs depending on what panels or cassettes you pair it with at the consolidation point.

Q: Can the FLRME be used as a standalone termination panel?

A: No. The FLRME is a consolidation and slack management enclosure, not a patch panel. For fiber termination at the same location, pair it with Panduit Opticom® fiber panels or cassette modules.

Karl Wilson

The FLRME earns its place on the BOM because of the included 100 feet of grommet edging — that detail tells you Panduit engineered this for real ladder rack environments, not just clean lab installs. In the field, unprotected fiber crossing bare metal ladder rungs is one of the top causes of attenuation creep over a 5-10 year building lifecycle, and most competing enclosures ship without edging, leaving that to the installer's discretion.

Technical Highlights:

• 1.7 in. H Profile: At 43.2 mm tall, the FLRME occupies minimal vertical space in overhead trays — critical in plenum spaces with less than 6 in. of clearance above drop ceilings where every millimeter of cable management hardware matters.
• Integrated Slack Spool: Slack management at consolidation points is non-negotiable for future MAC work. The raw spool included in the FLRME means technicians don't improvise with cable loops hung off ladder rungs — a practice that causes kink damage over repeated handling cycles.
• All-Metal, 270.8 mm Width: The metal enclosure and 10.66 in. width seat cleanly on standard 12 in. ladder rack without modification, and the metal construction handles the mechanical abuse of overhead environments where plastic housings eventually crack at mounting points.

Deployment Considerations:

• The FLRME is a consolidation enclosure, not a termination panel — budget one unit per midspan slack point and separate Opticom cassette or panel hardware for every active termination location on the same route.
• Watch out: the enclosure dimensions are 8.0 in. deep (203 mm). In underfloor systems with tight depth constraints or access floor tiles that sit close to the subfloor, verify clearance before specifying this unit — the depth is the limiting dimension, not the height.

The FLRME is the right call for enterprise campus horizontal distribution runs and data center overhead tray systems where fiber routes span multiple consolidation nodes and future MAC serviceability needs to be designed in from day one — not retrofitted later.
