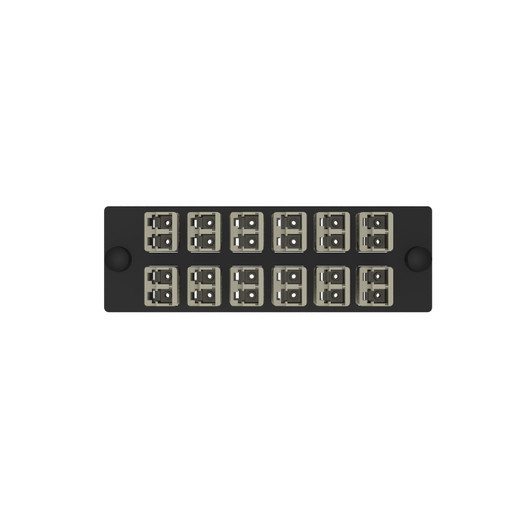

Panduit FAP12WEIDLCZ Fiber Adapter Panel
Overview
The Panduit FAP12WEIDLCZ is a fiber optic adapter panel designed to terminate and manage multimode fiber optic connections within structured cabling systems. This panel provides 12 duplex LC connectors, enabling the consolidation of up to 24 fiber strands (12 transmit, 12 receive) in a standard 1RU rack space. It's crucial for environments requiring high-bandwidth data transmission, such as video surveillance networks where reliable, high-density fiber connectivity is paramount. The FAP12WEIDLCZ ensures clean termination and easy access for maintenance or upgrades.
Compatibility
This adapter panel is designed for use with Panduit's Fiber Adapter Panels (FAP) and Fiber Optic Enclosures. It accepts standard duplex LC connectors, making it compatible with a wide range of multimode fiber optic transceivers and network equipment from various manufacturers, including switches, media converters, and cameras utilizing LC interfaces. Specifically, it integrates seamlessly into Panduit's Net-Access™ and Mini-Com® systems for comprehensive structured cabling solutions.
Installation Notes
Installation requires mounting within a compatible Panduit Fiber Adapter Panel chassis or enclosure. Ensure proper fiber optic cleaning procedures are followed before connecting any fiber strands to prevent signal degradation. The panel is designed for standard 19-inch rack mounting. Torque specifications for securing the panel within its chassis should be followed as per Panduit's installation guidelines to ensure mechanical integrity.
What's in the Box
- 1x Panduit FAP12WEIDLCZ Fiber Adapter Panel
- 12x Duplex LC Multimode Adapters (pre-installed)
