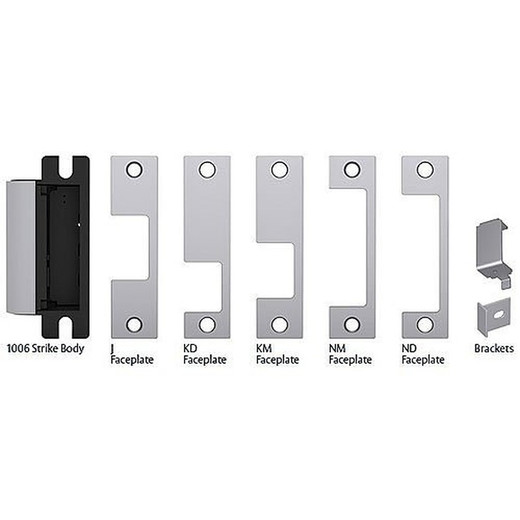

HES 1006-630 Fail Secure Electric Strike
Overview
The HES 1006-630 is a fail-secure electric strike designed for standard wooden and metal door frames in commercial access control installations. It operates on 12 or 24VDC, giving you flexibility in power architecture for small to mid-size door control deployments. The universal mounting footprint accommodates most frame types without custom fabrication, reducing installation time on retrofit and new-build access control systems.
Fail-secure operation means the strike remains locked when power is lost—a critical safety feature for secured areas where unauthorized entry during power outages must be prevented. This characteristic makes the 1006-630 suitable for perimeter security, data center access, pharmaceutical storage, and other environments where fail-safe behavior (unlocking on power loss) is not acceptable.
Authentication and credentials
The 1006-630 is a passive electric strike—it does not integrate readers or credential validation directly. Instead, it works downstream of your card reader or biometric reader and door controller. Your door controller receives authentication signals from credentials (proximity cards, mobile credentials, PIN entry, biometric data), validates them against your access database, and energizes the strike solenoid to unlock the door frame. This separation of concerns means you choose your reader technology independently, allowing upgrades to credential types without replacing the strike itself.
Door and zone capacity
The 1006-630 is a single-door strike—one unit controls access to one door opening. In multi-door access control deployments, you provision one strike per controlled opening. Frame-mounted installation (rather than mortise) simplifies wiring in existing buildings where routing conduit through door stiles is impractical. The universal faceplate design accommodates standard North American door frame widths and depths, reducing the need for custom brackets or adapters on typical commercial installations.
Integration and protocols
The 1006-630 operates as a simple solenoid lock—it expects 12 or 24VDC input from your door controller's strike output. No protocol communication (no Wiegand, no Ethernet, no RS-485) flows through the strike itself; all control logic resides in your access control panel or controller. This simplicity is a strength: the strike is agnostic to panel brand and firmware version. Whether you deploy it with Honeywell, LENEL, Salto, or any other panel that provides 12/24VDC strike output, the 1006-630 will perform identically. Standard low-voltage wiring (18–16 AWG recommended for most runs under 500 feet) connects the controller output to the strike terminals.
Installation and wiring
Frame-mounted installation requires routing power and ground from your door controller to the strike solenoid—typically two conductors in conduit or armored cable depending on local code. The universal mounting plate fastens to the door frame at the strike pocket using the hardware provided or standard wood/machine screws. Vertical adjustment on the faceplate accommodates typical frame tolerances without shimming on most installations. Dual voltage rating (12 or 24VDC) means you can wire it to whichever output your panel provides—no transformer or voltage selector needed.
Power draw is moderate enough that 12/24VDC outputs on most commercial access panels will handle the strike without overload, though high-current installations (multiple strikes wired in parallel) may require a dedicated power supply. Always verify your panel's strike output amperage rating against the strike's draw specifications before commissioning.
What's in the Box
Specific package contents are not detailed in the available evidence. Contact the manufacturer directly for an exact bill of materials.
Frequently Asked Questions
Q: Is the HES 1006-630 fail-safe or fail-secure?
A: The 1006-630 is fail-secure—it locks (strikes) when power is de-energized. The door remains locked until power and an unlock command from the controller are both present. This design prevents unauthorized entry during power outages, making it suitable for high-security perimeter and data center applications.
Q: Can I use the 1006-630 with a 12V or 24V power supply?
A: Yes. The 1006-630 is rated for both 12VDC and 24VDC operation. Connect it to whichever voltage your door controller outputs—no configuration or voltage selector is required.
Q: Does the 1006-630 work with any brand of access control panel?
A: Yes. The 1006-630 is a passive solenoid strike that expects only 12 or 24VDC input from a door controller output. It is compatible with any panel or controller that can supply that voltage—Honeywell, LENEL, Salto, UTC, or any other brand with a strike output port.
Q: What's the warranty on the HES 1006-630?
A: Specific warranty terms for this model are not provided in the available documentation. Contact HES directly at 623-582-4626 or 1-800-626-7590 for warranty details and coverage terms.
Q: Is the 1006-630 suitable for retrofit installations?
A: Yes. The universal frame-mount design and faceplate adjustment accommodate most standard North American door frames without custom fabrication. This makes it practical for retrofit access control upgrades where door frame modifications are minimized.
Q: What wiring gauge should I use for the 1006-630?
A: 18–16 AWG low-voltage wire is typical for strike connections under 500 feet of run. Always verify the current draw of the strike against your controller's output amperage rating and follow local electrical code requirements for your installation.
The HES 1006-630 is the workhorse of retrofit access control—fail-secure operation without the complexity of smart locks or networked hardware. If you're retrofitting a 50-door commercial building or managing a small multitenant facility where each tenant needs independent keyed access, the 1006-630's dual voltage (12/24VDC) and brand-agnostic solenoid design means you can standardize on one strike across multiple panel types. No firmware compatibility headaches, no protocol negotiation—just voltage in, strike out.
Technical Highlights:
- Fail-secure solenoid operation: Door locks when de-energized—no power loss, no unauthorized entry. Critical for perimeter and data center environments where fail-safe unlocking is unacceptable.
- Dual voltage (12/24VDC): Eliminates the need for voltage regulators or selectors. Wire directly to your panel's strike output and go—simple, reliable, one fewer component to fail in the field.
- Universal frame-mount faceplate: Accommodates standard North American door frame widths and depths without custom brackets. Retrofit installations move faster because you're not waiting for fabricated parts.
- Panel-agnostic: No protocol dependency. Works with Honeywell, LENEL, Salto, UTC, or any access panel with a 12/24VDC strike output. Vendor lock-in is zero.
Deployment Considerations:
- The 1006-630 is a dumb solenoid—all access logic lives in your controller or panel. If you're planning remote mobile credential provisioning or real-time audit logging, ensure your panel supports those features before specifying this strike.
- Verify your panel's strike output amperage before wiring multiple strikes in parallel. A single 1006-630 on a standard panel output is fine; daisy-chaining three strikes to one output may brown out the solenoid and cause erratic locking. Run separate conduit runs from the panel to each strike if you have multiple doors.
Position the 1006-630 for warehouse loading docks, school hallways, and office suites where you need fail-secure per-door control without the maintenance overhead of electromechanical locks or the cost of networked smart hardware. For retrofit integrators, it's the fastest path from key locks to card readers on a modest budget.
