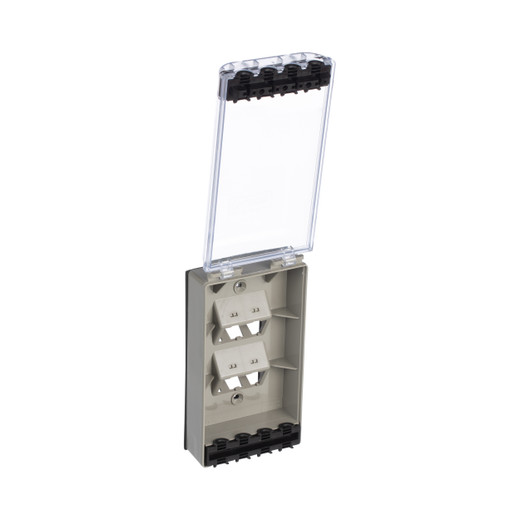

Panduit CFPWR4CIG Mini-Com Weatherproof Faceplate
The Panduit CFPWR4CIG is an IP56-rated weatherproof faceplate that houses four Mini-Com modules in outdoor and industrial installations. Its beveled single-gang design with hinged clear cover provides tool-free access to keystones while maintaining dust-tight and water-jet protection. Ships complete with gaskets, mounting screws, and a polycarbonate enclosure rated for UV exposure and temperature extremes, eliminating the need to source sealing components separately for exterior data drops.
Key Features
- IP56 dust-tight and water-jet resistant enclosure for exterior and wash-down environments
- Four-port capacity accepts any Mini-Com keystone modules (RJ45, fiber, coax, A/V)
- Beveled profile with angled cover promotes water runoff and reduces dirt accumulation
- Hinged clear polycarbonate cover allows visual inspection without opening the seal
- Includes pre-installed gaskets and stainless hardware for immediate weatherproof deployment
- International Gray finish matches industrial and commercial exterior surfaces
The IP56 ingress protection rating certifies this faceplate against dust infiltration (6) and high-pressure water jets from any direction (6). In practice, this means you can mount the CFPWR4CIG on exterior walls exposed to rain, irrigation overspray, or pressure-washing, and on factory floors where dust and washdown procedures would destroy standard faceplates. The polycarbonate housing resists UV degradation and maintains structural integrity across a wide temperature range, while the integrated gasket system creates a continuous seal around the perimeter and each module opening. The beveled face angles the cover downward, shedding water away from the hinge and reducing the surface area where debris can settle.
This faceplate is engineered for installations where data connectivity must extend into uncontrolled environments—security camera home-runs at building perimeters, access control readers at gated entries, warehouse Wi-Fi drops in high-bay areas, or process control stations in food production zones. The four-port capacity supports multi-drop consolidation (camera plus intercom plus card reader, for example) in a single weatherproof enclosure, reducing the number of penetrations through the building envelope. The clear hinged cover lets you verify link lights and cable seating during troubleshooting without breaking the IP seal, and the toolless latch speeds moves/adds/changes in the field. Mount with standard single-gang boxes or Panduit surface-mount boxes; the included gasket compresses to seal against textured CMU, stucco, or painted steel.
RoHS compliant and compatible with the entire Mini-Com module ecosystem, the CFPWR4CIG meets European and North American environmental standards for outdoor data infrastructure. When you need four keystones behind a weatherproof cover and want the install to include gaskets, hardware, and a clear inspection window in one SKU, this is the single-gang solution that handles IP cameras, outdoor Wi-Fi, and perimeter access control without custom fabrication.
