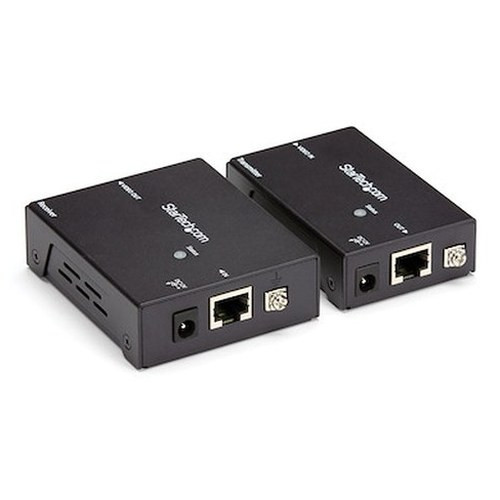

The StarTech ST121HDBTE is an HDMI extender designed to transmit high-definition video and audio signals up to 230 feet (70 meters) over a single, standard Cat 5e or Cat 6 Ethernet cable. This unit is ideal for extending HDMI displays in environments where running a direct HDMI cable is impractical or cost-prohibitive, such as large conference rooms, auditoriums, or digital signage deployments. The ST121HDBTE supports Power over Cable (PoC) functionality, meaning only one of the units (either transmitter or receiver) requires a power connection, simplifying installation. It supports resolutions up to 4K @ 30 Hz at shorter distances (35m) and 1080p @ 60 Hz at its maximum range (70m).
This extender is compatible with standard Cat 5e UTP or better cabling. It supports a wide range of digital resolutions including 3840x2160, 2560x1600, 1920x1200, 1920x1080, and 1280x720. It also passes 7.1 surround sound audio. The input and output connectors are 1x HDMI and 1x RJ-45 on both the transmitter and receiver units. It requires a separate power adapter (included) for one of the units, drawing a maximum of 7 Watts.
The operating temperature range is 0C to 40C (32F to 104F), with storage temperatures between -10C to 60C (14F to 140F). The unit requires 100-240V AC input and outputs 12V DC at 1.5A. The physical dimensions of each unit are 8.0 cm (length) x 6.7 cm (width) x 2.5 cm (height), with a weight of 428.0 g.
Manufacturer-verified compatible cameras, recorders, mounts, accessories, and licenses for this product. Adjust quantities and add the entire bundle to your cart in one click.
Compact HDBaseT Lite extender designed to transmit HDMI audio/video signals over a single Cat 5e or Cat 6 cable
HDBaseT Lite extender designed to transmit HDMI signals over a single Cat5e/6 cable, extending your reach up to 230 feet
