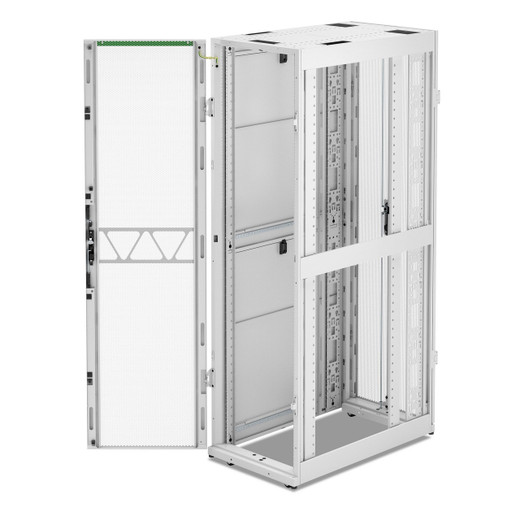

Vertiv GL45UEX-60120W-MS-SP 45U Enterprise Floor Rack with Shock Pallet

Overview

The Vertiv GL45UEX-60120W-MS-SP is a 45U open-frame floor rack from the Vertiv EX Series, designed for enterprise server and network infrastructure deployments where physical depth, organized cabling, and safe equipment transit all matter. Built at 600mm wide by 1200mm deep, it provides the footprint most 2-post and 4-post server populations need without the oversize penalty of 800mm-wide alternatives. The white finish suits data center environments with specific color-coding or aesthetic standards — common in modular or co-location builds where tenant zones are visually differentiated.

What separates GL45UEX-60120W-MS-SP from a standard rack shell is the shock pallet design, engineered to protect populated or partially populated enclosures during controlled deployment and transport. Moving a loaded rack across a raised floor, through a data center doorway, or onto a freight pallet without proper vibration and shock mitigation is one of the leading causes of premature drive failure and connector damage. The integrated shock pallet addresses this directly — it is not an afterthought accessory but part of the rack's deployment architecture.

Key Features

• 45U Form Factor: 45U of usable rack space means you can mount the full stack — top-of-rack switches, patch panels, 1U servers, and PDUs — without splitting across two enclosures. For a standard 42U population plus a 1U KVM and 2U PDU, this gives you meaningful headroom without going to a 48U frame.
• 600mm Width: Standard 19-inch EIA rail spacing fits within the 600mm exterior, which keeps aisle footprint tight. 600mm-wide racks are compatible with most raised-floor tile grids and standard hot/cold aisle containment curtain kits — no custom containment hardware needed.
• 1200mm Depth: The 1200mm depth accommodates deep 2-socket servers (Dell PowerEdge, HPE ProLiant, Cisco UCS) plus rear PDU mounting and cable management arms without forcing cables into the airflow path. Budget-class 900mm racks require servers to be cabled with doors open or removed — this depth eliminates that workaround.
• Shock Pallet Design: Controlled deployment and transport protection is built into the unit. When rolling a populated rack across uneven flooring or loading it for intra-campus moves, the shock pallet absorbs transient vibration loads that would otherwise propagate through the frame to spinning media or unseated DIMMs. This is specifically relevant for pre-staged deployments where the rack is configured off-site and delivered fully loaded.
• White Color Finish: The white finish is not cosmetic-only — in environments with structured color zoning (e.g., tenant-separated co-lo cages, healthcare IT rooms, broadcast infrastructure), a white rack provides immediate visual differentiation from standard black infrastructure. It also shows dust accumulation more clearly, which is useful in environments with regular airflow audits.
• Floor Mounting: The floor-mount design means this rack is intended for permanent or semi-permanent installation, not wall-hung or overhead positioning. Leveling feet and floor anchor points (verify against current Vertiv EX hardware documentation for bolt pattern) allow secure installation on both concrete slab and raised-floor environments.
• 832 lb Rated Weight: At 832 lbs, this figure accounts for the shipping and transport weight including the shock pallet assembly. Plan your floor loading calculations accordingly — raised-floor tiles typically have point-load ratings between 1,000 and 2,500 lbs depending on tile type and pedestal spacing. A fully loaded 45U rack with high-density blade infrastructure can approach those limits, so verify tile ratings before positioning.

Integration and Compatibility

The Vertiv EX Series is designed to accept standard 19-inch EIA-310 rack-mount equipment. The 600mm x 1200mm envelope is compatible with standard hot/cold aisle containment systems, overhead cable trays, and underfloor cable routing common in enterprise data centers. The white EX enclosure pairs with Vertiv's own PDU lineup, blanking panel kits, and cable management accessories — keeping the infrastructure single-vendor where standardization on spares and tooling matters.

For broader floor rack selection including black-finish variants and alternative depth options, the full rack enclosure catalog covers the range. If you are specifying this rack alongside Vertiv power and cooling infrastructure, the EX Series is designed to integrate with Vertiv's PDU and UPS ecosystem. For guidance on rack density planning and floor loading, consult the data center infrastructure category for complementary products. The shock pallet design also makes this a natural fit for pre-staged rack accessories and deployments where populated transit is part of the project scope.

Frequently Asked Questions

Q: What does the shock pallet design on the GL45UEX-60120W-MS-SP actually protect against?

A: The shock pallet is designed for controlled deployment and transport — it absorbs vibration and impact loads when the rack is moved across floors, loaded onto freight, or deployed pre-staged with equipment already installed. This protects spinning hard drives, seated DIMMs, and connector integrity during transit.

Q: What is the weight of the GL45UEX-60120W-MS-SP?

A: The listed weight is 832 lbs, which includes the shock pallet assembly. Factor this into your floor loading calculations, particularly on raised-floor environments where tile and pedestal point-load ratings may be a constraint at full rack density.

Q: Does the GL45UEX-60120W-MS-SP fit standard 19-inch rack-mount equipment?

A: Yes. The EX Series uses standard 19-inch EIA-310 rail spacing. The 600mm width accommodates this rail standard while remaining compatible with most standard aisle containment systems.

Q: Why choose a 1200mm depth over a 1000mm or 900mm option?

A: The 1200mm depth comfortably fits deep 2-socket servers with cable management arms deployed, rear-mounted vertical PDUs, and patch panels without routing cables through the airflow path. Shallower racks often require doors to be removed during cabling or force compromises in cable bend radius.

Q: Is the white finish purely cosmetic, or is there a functional reason to specify it?

A: The white finish has practical applications in environments with color-zoned infrastructure — co-location cages, healthcare IT rooms, and broadcast facilities often use rack color to differentiate tenants, criticality tiers, or system types. White also makes dust accumulation visible earlier than black finishes, which matters in airflow-managed environments.

Q: What mounting type does the GL45UEX-60120W-MS-SP use?

A: Floor mounting. This is a permanent or semi-permanent floor-standing enclosure, not a wall-mount or overhead-mount solution. It is intended for raised-floor or concrete-slab data center environments.

Marty Allison

The GL45UEX-60120W-MS-SP is one of those specs I see come up specifically in pre-staged deployment projects — the shock pallet is the differentiator here, not the rack itself. When a systems integrator is building out a full rack off-site and rolling it into a data center or server room pre-loaded, a standard rack without vibration mitigation is a liability. The 832 lb shipping weight on this unit tells you it's moving as a complete assembly, and that shock pallet is doing real work on the loading dock and across the raised floor.

Technical Highlights:

• Shock Pallet: Engineered for controlled transport of populated enclosures — prevents vibration-induced drive errors and connector failures during intra-campus and freight moves, which is the most common cause of post-deployment hardware issues on pre-staged racks.
• 1200mm Depth: Gives you full cable management arm deployment behind deep 2-socket servers without door removal or compromised airflow — the spec that separates this from budget-depth alternatives in high-density builds.
• 45U at 600mm Width: Maximum density in a standard aisle footprint. You get three extra rack units over a 42U frame — enough for a full cable management shelf and a spare PDU slot without going to a wider or taller enclosure.

Deployment Considerations:

• At 832 lbs with pallet, verify your raised-floor tile and pedestal point-load ratings before positioning, especially in high-density rows where adjacent fully-loaded racks compound the distributed floor load.
• The white finish requires attention to accessory sourcing — blanking panels, PDU mounts, and cable managers in white are not always stocked by every supplier; confirm Vertiv EX-compatible white accessories are available before finalizing the BOM.

This rack is the right call for pre-staged enterprise deployments — systems integrators building fully configured racks off-site for delivery to healthcare facilities, co-location installations, or remote branch data rooms where on-site build time is constrained and equipment protection during transit is non-negotiable.
