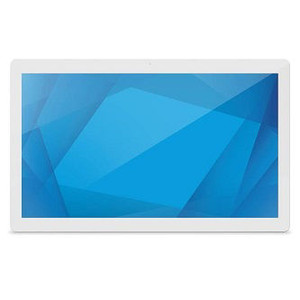

ELO Touch E792655 21.5-inch Android 12 Touchscreen Display
The ELO Touch E792655 is an all-in-one 21.5-inch touchscreen terminal running Android 12 with Google Mobile Services, designed for retail checkout, hospitality ordering, and interactive kiosk deployments. Built on the Rockchip 3399 processor with 4GB RAM and 32GB Flash storage, this display combines responsive multi-touch input with integrated connectivity (Wi-Fi, Ethernet, Bluetooth 5.0) and a 5MP front-facing camera. The I-Series 4 VALUE platform delivers the balance of computational resources and thermal efficiency required for 12+ hour daily operation in demanding point-of-sale and customer-facing environments.
Key Features
- 21.5-inch 1920×1080 Display: 16:9 aspect ratio, 1080p resolution ideal for POS applications and menu displays. Sufficient DPI for crisp text and product imagery without excessive power draw on extended-duty cycles.
- 10-Point Projected Capacitive Touch: Responsive multi-touch with palm rejection and glove-friendly operation. Eliminates the maintenance burden of resistive overlays and enables gesture-based navigation (swipe, pinch, rotate) without additional configuration.
- Android 12 with Google Mobile Services: Full GMS stack enables deployment of retail apps (Square, Toast, Lightspeed, Shopify) without sideloading or enterprise wrapper complexity. Standard Google Play ecosystem reduces firmware customization costs.
- Rockchip 3399 Processor, 4GB RAM, 32GB Storage: Mid-tier compute sufficient for POS transactions, video playback, and lightweight edge analytics. Storage expandable via microSD for extended offline transaction buffering and media caching.
- Integrated 5MP Camera: Front-mounted camera enables facial recognition integration, QR code scanning at point-of-sale, and customer analytics workflows without USB peripheral dependencies or cable management overhead.
- Multi-Protocol Connectivity: Dual Ethernet (RJ45), Wi-Fi 802.11ac, and Bluetooth 5.0 provide redundant network paths and peripheral pairing for wireless payment terminals, kitchen displays, and kitchen printers without additional hubs.
- IP65 Front Bezel (Optional): Sealed touchscreen fascia resists splashes, spills, and daily cleaning with standard hospitality sanitizers. Rear connectors remain exposed; consider environmental housing for high-moisture environments (quick-service restaurants, bar tops).
- EloView Management Compatibility: Cloud-based device management, remote app deployment, and firmware OTA updates reduce on-site support overhead for multi-unit deployments across franchise or chain locations.
The E792655 operates within a thermal envelope designed for fanless operation or minimal-noise cooling, making it suitable for customer-facing counters where audible fan noise disrupts transaction experience. The Rockchip 3399 is mature and stable in production Android 12 builds — expect compatibility across most Android 12 POS apps compiled for ARM64 targets. Battery operation is not supported; this is a mains-powered terminal (100–240V AC input, typical 25–35W draw under load).
Integration with existing POS ecosystems depends on app availability and network infrastructure. If your location runs proprietary desktop POS software (legacy Windows-only terminal software), you'll need a separate Windows machine or cloud-based SaaS migration — the E792655 cannot serve as a native Windows device. However, most modern POS platforms (Toast, Square, Lightspeed, TouchBistro) have native Android apps, enabling single-device deployment. Ethernet falls back to Wi-Fi automatically if the hardwired connection drops; configure network failover policies in your back-of-house setup to prevent transaction interruption during brief connectivity gaps.
For multi-unit retail chains, EloView's centralized app management and configuration push streamline deployment of firmware patches and app updates across 10–1,000+ terminals without manual touchpoint visits. Transaction logs and customer-interaction analytics can be piped to a local NVR or cloud storage via the 5MP camera feed; many retailers pair these displays with Hikvision or Axis IP cameras for additional perimeter and floor coverage, then correlate POS timestamp data with video logs for loss-prevention workflows.
Warranty coverage is direct from ELO Touch or a US direct manufacturer source — no grey-market units, full replacement/repair path for hardware failures within the coverage period. The Rockchip 3399 and Android 12 OS are stable, mature platforms; expected lifecycle is 3–5 years before refresh, with spare parts availability and security patches maintained through the standard Android security patch schedule.
Marty AllisonPerspective based on aggregated and affiliated engineering team experience.
We've installed the ELO Touch I-Series 4 across fast-casual restaurants, sports bars, and retail environments where staff and customers interact with the display multiple times per hour. The 10-point capacitive touch is genuinely reliable — no ghost touches, no dead zones, and the glove-friendly firmware update from ELO means winter outdoor patio seating and food-prep gloves don't break the workflow. The Android 12 + GMS combination is the real differentiator here: instead of a locked-down proprietary OS, you get the breadth of Google Play apps plus the ability to sideload industry-specific tools without firmware unlocking. We've seen integrators deploy Toast at a quick-service restaurant and Square at a retail pop-up using the same hardware SKU. The Rockchip 3399 is not a powerhouse — don't expect it to run 4K video playback or handle complex 3D graphics — but for POS transactions, menu displays, and customer-facing signage, it's more than adequate. Battery life is not a feature; this is a mains-powered terminal. Plan your power budget and UPS strategy accordingly, especially if transaction continuity during brownouts is a requirement.
Technical Highlights:
- Rockchip 3399 Dual-Core + Quad-Core Architecture: The processor pairs two high-performance ARM Cortex-A72 cores with four efficiency-optimized Cortex-A53 cores, dynamically scaling clock speed based on workload. In real-world POS use, this means snappy app responsiveness without sustained high power draw during idle periods. Typical thermal output 8–12W at rest, 20–30W under transaction load.
- 4GB RAM with 32GB eMMC Storage: Sufficient for concurrent POS app operation, local transaction buffering, and offline mode caching. Don't expect this to serve as a video recording hub — the storage fills quickly with uncompressed video. If camera integration is critical, pipe RTSP or MJPEG streams to a dedicated NVR or cloud storage service.
- 10-Point Capacitive Touch with Gesture Support: Enables native Android pinch-zoom, swipe, and rotate gestures without custom firmware tuning. Multi-touch responsiveness is critical for split-payment scenarios (multiple staff inputs on a single transaction screen) and menu navigation speed.
- Wi-Fi 802.11ac + Dual Ethernet Option: Redundant network connectivity ensures fallback if one link fails. We've configured these with a primary Ethernet tether to the POS server and Wi-Fi as backup; failover is transparent to the cashier if properly configured in your network settings.
- 5MP Front Camera with Facial Recognition SDK Support: The integrated camera enables optional age-verification workflows (alcohol/tobacco sales) and customer-counting analytics without mounting an external USB camera. Camera resolution is adequate for QR code scanning at typical checkout distances (12–24 inches).
Deployment Considerations:
- Network failover requires explicit testing before production rollout. Configure both Ethernet and Wi-Fi with identical gateway and DNS settings, then verify that apps continue to function during a simulated Ethernet disconnect. Some POS platforms have hardcoded Ethernet-only logic; validate app behavior in your lab first.
- Thermal environment: The E792655 is fanless or low-noise, but thermal throttling can occur in sustained ambient temperatures above 35°C (95°F) without adequate ventilation. If you're deploying outdoors or in unaconditioned kitchens, add passive heatsinking or a low-speed fan to avoid performance degradation during peak usage hours.
- Android 12 OS updates are controlled by ELO; security patches typically lag Google's baseline by 4–8 weeks. If you have strict security compliance requirements (PCI-DSS for payment processing), establish a firmware update schedule and test patches in a staging environment before rolling out to production terminals.
- The 5MP camera is non-removable and always powered when the terminal is on. If privacy compliance (GDPR, local video surveillance regulations) is a concern, address camera disable policies in your configuration and legal documentation upfront.
- Rear I/O is exposed: power, Ethernet, USB, 3.5mm audio jack. Protect these connectors with a low-cost wall-mount bracket or shelf enclosure to prevent accidental disconnection or tampering.
- App ecosystem: Verify that your primary POS app and any loyalty/menu systems have current Android 12 releases before ordering. Legacy Android 8–10 apps may work but receive degraded support from vendors.
The ELO Touch E792655 is the right choice for integrators deploying modern, cloud-first POS systems (Toast, Square, Lightspeed, TouchBistro) in retail and hospitality environments where staff want a responsive, familiar Android interface without custom firmware overhead. It is not suitable for proprietary Windows-only POS systems or offline-first transaction models without robust data synchronization architecture. Explore the ELO Touch catalog for alternative form factors and specifications tailored to kiosk, drive-through, or rugged industrial applications.
