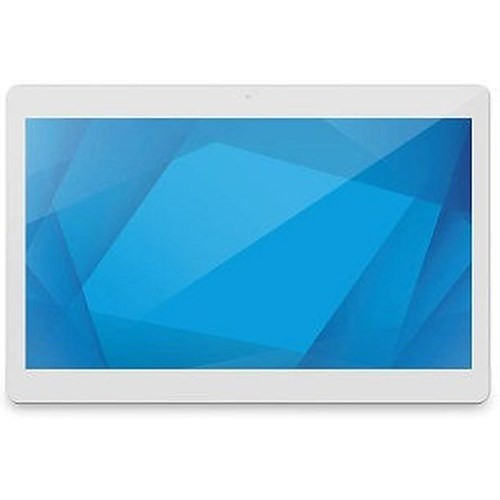

ELO Touch E412421 15.6" Android 10 Touch Monitor
The ELO Touch E412421 is a compact 15.6-inch Android-based touchscreen display designed for point-of-sale, self-service kiosks, and hospitality checkout environments. Built on the I-Series 4 VALUE platform with Android 10 and Google Mobile Services (GMS), it combines a responsive 10-point capacitive touchscreen with integrated networking and imaging capabilities. This form factor targets high-volume deployments where space is constrained, durability matters, and total cost of ownership must remain predictable across a fleet.
Key Features
- 15.6-inch 1920×1080 Display: 16:9 aspect ratio, 1080p resolution. Adequate for menu boards, transaction screens, and customer-facing signage in compact footprints.
- 10-Point Projected Capacitive Touch: Multi-touch capable, responsive to finger input. Works reliably in retail environments without stylus dependency.
- Rockchip 3399 Processor with 4GB RAM: ARM-based SoC; sufficient for Android 10 UI responsiveness and light application workloads. 32GB Flash storage handles OS, apps, and local caching without external storage dependency.
- Android 10 with Google Mobile Services: Full GMS stack — Google Play Store, Chrome, Maps, etc. Simplifies app deployment across retail chains; no custom ROM burden.
- Integrated 5MP Camera: Front-facing, useful for video conferencing, identity verification, or queue analytics. Not a surveillance-grade sensor.
- Dual Network Connectivity: Wi-Fi (802.11 a/b/g/n/ac implied) and Ethernet (RJ45). Bluetooth 5.0 for peripheral pairing (card readers, receipt printers, payment terminals).
- EloView Compatibility: Remote management, fleet provisioning, and monitoring via ELO Touch's cloud platform. Reduces on-site configuration overhead for multi-location operators.
The I-Series 4 VALUE chassis trades premium industrial hardening for accessibility — fanless design, no moving parts, and a sealed front bezel that tolerates food-service and retail splash. IP65 front-panel rating (water and dust resistant) is typical for this class, though the full mechanical rating should be verified against the datasheet. Mounting options include VESA, wall-mount bracket, or integrated stand configurations depending on the specific SKU variant.
Deployment scenarios span quick-service restaurants (QSR) menu boards and order-taking terminals, retail POS displays, hotel check-in kiosks, and self-service ticketing. Android 10 guarantees access to the full ecosystem of consumer and enterprise apps — barcode scanners, payment SDKs (Square, Stripe, PayPal), inventory sync (SAP, NetSuite), and digital signage engines (Xibo, Scala). GMS inclusion eliminates the friction of sideloading or proprietary app stores that plague stripped-down Android variants.
EloView fleet management is the operational lever for multi-unit operators. Centralized provisioning of OS updates, app bundles, and configuration profiles across 50 or 500 units scales without per-device remote-desktop sessions. Audit logs and device health telemetry feed into compliance reporting — useful for franchisees and restaurant groups managing payment-processing certifications (PCI-DSS, TSP). The 5MP camera can also be licensed for promotional video or customer sentiment analytics if the application requires it.
Integration with existing retail infrastructure (POS middleware, payment gateways, loyalty systems) is straightforward via HTTP/REST APIs and native Android libraries. Ethernet and Wi-Fi allow flexible network topology — wired for mission-critical units, wireless for temporary or outdoor kiosk deployments. Bluetooth pairing with barcode scanners and peripheral receipt printers eliminates serial-port clutter and supports high-density installations.
ELO Touch monitors are sourced direct from the manufacturer or US channel partner channels — factory-new, full warranty coverage, and no parallel-import risk. The E412421 carries a standard manufacturer warranty; terms and regional coverage details are confirmed at point of order.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the ELO I-Series 4 VALUE across QSR and retail chains, and the E412421 punches well above its price point for high-volume, single-purpose kiosks. The differentiator isn't raw horsepower — the Rockchip 3399 won't win a processor race — but rather the total operational simplicity: Android 10 + GMS eliminates custom image maintenance, EloView fleet management scales to hundreds of units without a dedicated IT admin, and the 15.6-inch form factor fits standard POS counter footprints that smaller tablets can't match. We've seen integrators spec it for food-court menu boards, retail self-checkout, and hotel guest-facing booking terminals where durability and app ecosystem reach matter more than processing headroom.
The closest alternatives are commercial-grade tablets (iPad Air, Samsung Galaxy Tab S Pro with MDM) and purpose-built POS terminals (Ingenico, Square Terminal). Against tablets, the E412421 wins on mounting flexibility, larger screen real estate, and simpler fleet compliance (no iOS licensing overhead). Against dedicated POS hardware, it wins on software flexibility — Android apps adapt to any payment processor or inventory system, whereas proprietary terminals lock you into a single vendor's ecosystem. The trade-off: it's less rugged than industrial-grade 7-inch field devices and doesn't compete on performance with high-end all-in-one POS systems.
Technical Highlights:
- Rockchip 3399 with 4GB RAM / 32GB Flash: Entry-level ARM SoC, proven in millions of Android tablets and mid-range devices. Handles Android 10 UI, app multitasking, and payment SDK processing without lag. 32GB is sufficient for OS, 3-5 retail apps, and local transaction logging; persistent network access is assumed for cloud sync.
- 10-Point Capacitive Touch, 1920×1080 @ 15.6": Responsive multi-touch — users expect pinch-zoom and gesture input. 1080p sharpness is adequate for menu text at arm's length; higher resolution (1440p) adds cost without meaningful ROI in retail kiosk context.
- Dual Network (Wi-Fi + Ethernet + Bluetooth 5.0): Ethernet for wired installations in restaurants and retail floors where reliability trumps cable routing. Wi-Fi for outdoor kiosks or temporary deployments. Bluetooth pairing with barcode scanners and thermal printers is seamless — no USB hub clutter.
- EloView Fleet Management: Centralized provisioning of OS updates, app deployments, and device configuration policies. Reduces per-device setup time from 30 minutes (manual, remote SSH) to 2 minutes (cloud push). For a 100-unit retail deployment, that's ~46 hours saved across the estate.
- 5MP Front Camera: Adequate for video conferencing, ID verification (passport/driver license scanning), and queue-sentiment analytics. Not surveillance-grade; low-light performance is limited. Useful for optional promotional use cases, not a core security component.
Deployment Considerations:
- Android 10 reached end-of-life status in early 2023 — check whether your compliance posture (PCI-DSS, healthcare privacy) requires security patch coverage. ELO does backport critical fixes, but upgrades to Android 11 or 12 hardware may be mandated by payment processor TSP requirements in 2-3 years.
- Rockchip 3399 SoCs have mixed app compatibility in some barcode scanner SDK libraries and legacy payment middleware — validate against your specific POS integration before ordering fleet quantities. Test one unit in your payment terminal sandbox first.
- Fanless passive cooling means the chassis will accumulate dust in high-grease environments (kitchens, fryers). Schedule quarterly compressed-air intake cleaning to prevent thermal throttling in summer deployments.
- 15.6-inch footprint requires 24-30 inches of linear counter space. Confirm available real estate before committing; some QSR layouts require 10-inch tablets instead due to cramped POS counter geometry.
- Wi-Fi performance in dense retail environments (high-traffic malls, food courts) can degrade with competing 2.4GHz noise. Prioritize wired Ethernet where possible; if wireless is mandatory, 5GHz dual-band support is essential (confirm with your integrator).
The E412421 is purpose-built for integrators managing mid-market retail and QSR deployments where app flexibility, fleet manageability, and compact form factor outweigh raw performance. If you're standardizing Android-based POS hardware across 20+ locations with heterogeneous payment processors and inventory systems, this is a sound choice. For single-location deployments or environments requiring industrial-grade durability (outdoor, maritime, extreme temperature), evaluate higher-spec I-Series models or alternative vendors. Explore the ELO Touch catalog for full-size display options and ruggedized variants.
