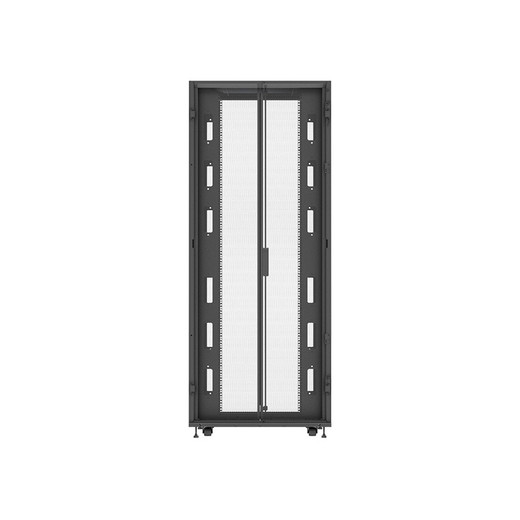

Vertiv GL980ES-3042-W-MS 52U Server Rack Enclosure

The Vertiv GL980ES-3042-W-MS is a 52U, 30-inch-wide by 42-inch-deep server rack enclosure finished in Winter White — a purpose-built cabinet for IT closets, security head-end rooms, and networked AV installations where rack depth is constrained and visual integration with the room matters. The 52U height gives you room to consolidate NVRs, PoE switches, patch panels, UPS units, and cable management in a single footprint without stacking cabinets.

Overview

The GL980ES-3042-W-MS belongs to Vertiv's Geist-line rack enclosure family, engineered for mid-to-large IT and security infrastructure deployments. At 42 inches deep, the cabinet accommodates full-depth 1U servers and network appliances without forcing you to run cables in tight bends — important for heat management and serviceability in a head-end closet. The 30-inch width is the sweet spot for installations where a full 32-inch footprint isn't available but a 19-inch EIA-standard rail pitch is non-negotiable. The Winter White finish is a deliberate choice for environments like healthcare facilities, education campuses, or corporate lobbies where a black cabinet would be visually disruptive.

For those sourcing by alternate search terms, the GL980ES-3042-W-MS is often searched as GL980ES 3042 W MS.

Key Features

• 52U Usable Height: 52U of rack space means you can house a fully built-out security or IT stack — NVRs, managed PoE switches, patch panels, a 2U UPS, and cable management tray — without running out of rail space mid-project. A 42U or 44U cabinet forces triage; at 52U, you have headroom for growth.
• 30-Inch Cabinet Width: The 30-inch external width fits installations where 32-inch cabinets won't clear hallway egress or room dimensions, while still providing the standard 19-inch EIA-310 rail mounting pitch all standard 1U/2U equipment expects. No adapters, no shelf hacks.
• 42-Inch Depth: 42 inches of internal depth comfortably handles full-depth 1U servers, deep NVR chassis, and rear-mounted cable runs. Shallower 24-inch or 36-inch cabinets force you to angle cables or use shelf extenders; this depth eliminates that problem.
• Mesh Contour Front Door: The mesh contour front door allows passive airflow through the door panel without requiring perforation-pattern compromises. Hot air from active equipment exhausts toward the rear rather than recirculating through the front — directly relevant if you're running high-wattage PoE switches or recording appliances without a supplemental cooling unit.
• Mesh Contour Rear Door: Rear mesh exit airflow means the cabinet can function in free-air-cooled environments at moderate heat loads. If your head-end room has adequate HVAC, you may not need active in-rack cooling — reducing cost and noise in occupied spaces.
• Winter White Finish: Where black cabinets visually dominate a room, Winter White integrates cleanly into clinical, educational, or hospitality environments. This isn't cosmetic-only — facility managers in healthcare and education procurement often specify finish as a condition of approval.
• Geist-Series Build Quality: Vertiv's Geist rack line is built for commercial and enterprise deployment, with welded steel construction and adjustable mounting rails. The frame handles the weight distribution demands of fully populated security stacks — dense with recording appliances and switching hardware — without flexing or racking out of square over time.

Integration and Compatibility

The GL980ES-3042-W-MS ships with standard EIA-310 19-inch mounting rails, compatible with all standard 1U, 2U, and larger rack-mount equipment: NVRs from Hanwha, Axis, Genetec Stratocast appliances, Cisco and Ubiquiti managed switches, APC and Vertiv UPS units, and standard 1U patch panels. The 42-inch internal depth accommodates the longest rack-mount appliances in common use. The cabinet is sized for installations that need a network video recorder stack, PoE switches, and cable management in a unified enclosure — a common requirement in enterprise IP camera deployments where the head-end room consolidates 20 or more camera feeds.

The Winter White color variant is particularly well-suited for deployments alongside Vertiv's broader power and infrastructure line, where color-matched PDUs and UPS units are available to keep the installation looking intentional. For installations requiring supplemental in-rack cooling, Vertiv's own cooling units are designed to integrate with this enclosure family.

Cable entry can be managed via the top, bottom, or rear — standard knockouts support brush strips and blanking panels from any major third-party cable management vendor. The rack enclosure category includes both open-frame and enclosed options if your deployment environment calls for a different configuration.

Frequently Asked Questions

Q: What is the exact U capacity of the GL980ES-3042-W-MS?

A: The GL980ES-3042-W-MS is a 52U enclosure. The 52U designation is encoded in the model number and confirmed in the product specifications for this specific SKU.

Q: What are the external dimensions of the GL980ES-3042-W-MS?

A: The GL980ES-3042-W-MS is 30 inches wide and 42 inches deep. These are the external cabinet dimensions for this specific model. Height will correspond to a 52U rack frame; exact floor-to-top dimensions should be confirmed with Vertiv's dimensional drawing for this SKU.

Q: What color is the GL980ES-3042-W-MS?

A: The GL980ES-3042-W-MS is finished in Winter White, as indicated by the
