Middle Atlantic ERK44SPREAR EXT3in. in. D - ERK-44-R-EXT3

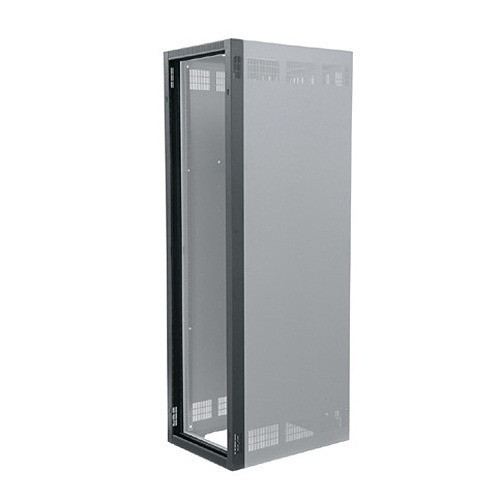

Middle Atlantic ERK-44-R-EXT3 44U Rear Door Rack Depth Extender Bay

Overview

The Middle Atlantic ERK-44-R-EXT3 is a 3-inch rear door extender bay designed specifically for 44U ERK-series open-frame and enclosed rack enclosures. If you're retrofitting deeper network switches, patch panels, cable managers, or AV/security equipment into an existing ERK rack and the rear door no longer closes cleanly, this extender solves the problem without replacing the entire enclosure. It adds exactly 3 inches (7.6 cm) of rear depth — enough to accommodate equipment that overhangs the standard ERK rear plane — while preserving the enclosure's structural integrity and, critically, its seismic rating.

At 44U tall (75.86 inches / 192.7 cm), the ERK-44-R-EXT3 spans the full height of the host rack, delivering a flush, finished appearance in black powder coat. The rear door is integrated; no front door is included, which keeps the unit purpose-built for rear cable management and depth relief rather than full enclosure conversion.

Key Features

• 3-Inch Rear Depth Extension: The 3" (7.6 cm) added depth targets the most common overreach scenario — deep 1U/2U switches and structured cabling hardware that project beyond the ERK's standard rear mounting plane. Rather than buying a deeper replacement rack, you extend what's already installed and cabled.
• 44U Full-Height Compatibility: Matched precisely to the 44U ERK series at 75.86 inches tall, the extender bay aligns with every rack unit position in the host enclosure. Partial-height extenders create airflow disruption and structural gaps — this one covers the full run.
• Seismic Rated: The ERK-44-R-EXT3 carries a seismic rating, which matters if you're deploying in California, the Pacific Northwest, or any jurisdiction with code requirements for equipment anchoring. Security operations centers, campus IDFs, and government facilities in seismic zones can deploy this without losing the host rack's seismic compliance.
• Integrated Rear Door: The rear door is built into the extender unit, so rear access and cable management are maintained after extension. You're not adding depth and then improvising a rear cover — the door is part of the assembly.
• Black Powder-Coat Finish: Matches the standard ERK enclosure finish. In mixed-equipment rooms where aesthetics and equipment identification matter (broadcast, security NOC, structured AV), a mismatched extender bay draws the wrong kind of attention. This one disappears into the rack.
• ERK Base Series Compatibility: Built for the ERK platform specifically — Middle Atlantic's workhorse open-frame and enclosed rack line used across commercial AV, security, and IT deployments. If your rack isn't an ERK-series unit, verify compatibility before ordering; this extender is not a universal fit.
• Shipping Weight 41 lbs: At 41 lbs (18.6 kg) shipping weight, plan for a two-person installation. The unit spans nearly 76 inches fully assembled — a single-person install risks misalignment during mounting.

Integration & Compatibility

The ERK-44-R-EXT3 integrates with Middle Atlantic ERK-series rack enclosures at the 44U height. If you're building or expanding a rack enclosure deployment for a security operations center, enterprise IDF, or AV system rack, confirm your host ERK enclosure model is the 44U variant before specifying this extender — Middle Atlantic produces ERK enclosures in multiple heights, and the extender must match the host unit height exactly for structural and aesthetic alignment.

For security and AV integrators managing deep cable runs or specifying rack accessories alongside the ERK platform, the rear door extender is commonly paired with vertical cable managers, horizontal cable trays, and patch panel extensions. It does not replace a full rear door assembly on a different rack series. Consult the network rack infrastructure category for complementary mounting and cable management hardware.

If you're sizing a new rack build rather than extending an existing one, review the rack selection guide — in many cases, specifying a deeper ERK enclosure from the outset is more cost-effective than adding extender bays later.

Frequently Asked Questions

Q: What rack series is the ERK-44-R-EXT3 compatible with?

A: The ERK-44-R-EXT3 is designed for Middle Atlantic's ERK base series rack enclosures at the 44U height. It is not a universal rack extender — verify your host enclosure is a 44U ERK-series unit before ordering.

Q: Does the ERK-44-R-EXT3 include a front door?

A: No. The ERK-44-R-EXT3 includes a rear door only. No front door is included with this extender bay.

Q: Is the ERK-44-R-EXT3 seismic rated?

A: Yes. The ERK-44-R-EXT3 carries a seismic rating, making it suitable for deployments in seismic zones where equipment anchoring compliance is required.

Q: How much depth does the ERK-44-R-EXT3 add to my rack?

A: It adds exactly 3 inches (7.6 cm) of rear depth to the host ERK enclosure.

Q: What is the overall height of the ERK-44-R-EXT3?

A: The unit is 75.86 inches (192.7 cm) tall, spanning the full 44U height of the ERK host enclosure.

Q: What does the ERK-44-R-EXT3 weigh?

A: The shipping weight is 41 lbs (18.6 kg). Plan for a two-person installation given the unit's 76-inch height and shipping weight.

Ted Perry

The ERK-44-R-EXT3 comes up on jobs where an integrator has already racked a 44U ERK enclosure, then the client adds a managed switch or a deep cable manager that overruns the rear plane by 2-4 inches — exactly the gap this extender closes. At 3 inches of added depth and full 44U height coverage, it's a surgical fix, not a workaround.

Technical Highlights:

• Seismic Rating: The extender maintains the host ERK enclosure's seismic compliance — critical for California Title 24, IBC seismic installations, and any government or healthcare deployment where rack anchoring is code-enforced. Don't assume an aftermarket extender preserves seismic rating; this one does.
• Full 44U Span at 75.86": Partial-height extenders introduce structural weak points and airflow bypass channels. The ERK-44-R-EXT3 covers the full 75.86-inch height — no gaps, no exposed rear mounting rail sections, no cold aisle contamination from a mismatched rear panel.
• Integrated Rear Door: The rear door is part of the extender assembly, not an add-on. That means rear cable access is maintained after extension without sourcing a separate door panel or fabricating a cover — a real time-saver on a tight closeout schedule.

Deployment Considerations:

• At 41 lbs shipping weight and 75.86 inches tall, this is a two-person lift. Budget the extra labor on your install ticket — attempting a single-person alignment on a nearly 76-inch assembly risks misalignment with the host enclosure's rear rail attachment points.
• ERK-series compatibility is strict — the extender is matched to the ERK platform at 44U. If the host rack is a different Middle Atlantic series (WR, BGR, etc.) or a third-party enclosure, this unit will not align correctly. Verify the host rack model before submitting a PO.

Best fit: enterprise IDF closets and security NOC racks running the ERK platform where deep switching hardware was added post-install and the rear door no longer seats — the ERK-44-R-EXT3 recovers the rear door function and seismic compliance in a single assembly.
