Vertiv ESF16 Concise Descriptor

Overview

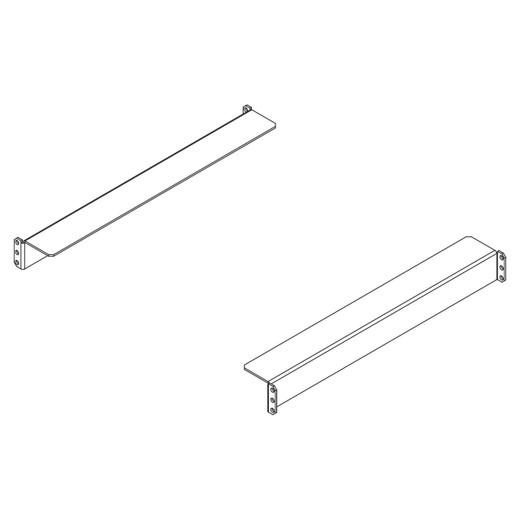

The Vertiv ESF16 is a 16.5" wide equipment support frame designed to provide a stable platform for rack-mounted equipment that may not have standard mounting ears or requires additional support. With a substantial 300 lb weight capacity and a 25.25" maximum tab placement depth, it is suitable for supporting heavier components or those with non-standard chassis dimensions within a standard 19" rack. This frame is ideal for installations where equipment stability is critical, such as in data centers, network closets, or staging areas.

Compatibility

The Vertiv ESF16 support frame is designed for use within standard 19-inch rack systems. Its 16.5" width ensures it fits within typical rack enclosures. The 25.25" maximum tab placement depth accommodates a range of equipment sizes. While specific model compatibility is not detailed, its design targets standard rack-mount equipment requiring enhanced support, including network switches, servers, or specialized surveillance hardware.

Installation Notes

Installation requires mounting the frame to the rack's vertical rails using standard rack screws and cage nuts (not included). The frame's depth allows for flexible positioning to align with the equipment's center of gravity. Ensure the rack itself is rated to support the combined weight of the frame and the equipment being mounted. The 300 lb capacity requires robust rack construction.
