Epson CEPS-001 Null Modem Cable

Overview

The Epson CEPS-001 is a 3-foot null modem serial cable designed to facilitate direct communication between two serial devices. This cable is specifically configured for null modem operation, meaning it crosses the transmit (TX) and receive (RX) lines, along with handshake control signals, allowing two DTE (Data Terminal Equipment) devices to communicate as if they were connected to modems. This is critical for scenarios requiring direct serial data transfer between equipment like industrial controllers, legacy diagnostic tools, or certain types of network hardware where standard straight-through serial connections are insufficient. The CEPS-001 model number ensures you are sourcing the correct cable for this specific serial configuration.

Compatibility

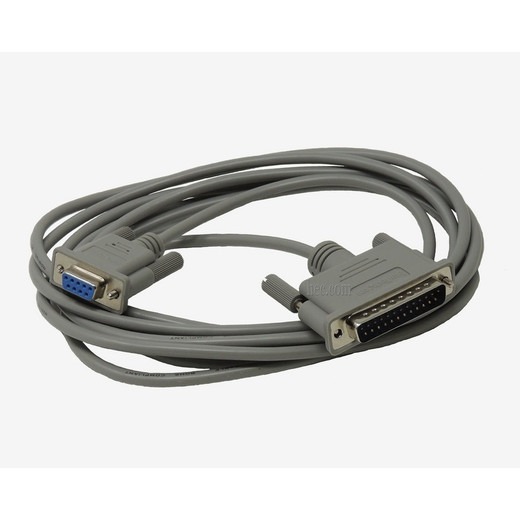

This cable features a DB9 female connector on one end, intended to connect to the DTE device's serial port, and a DB25 male connector on the other end, typically used for connecting to a secondary serial device or a terminal block. It is designed for use with any system or device requiring a DB9 to DB25 null modem serial connection, including various industrial automation controllers, point-of-sale systems, and legacy networking equipment that utilize serial ports for configuration or data logging. Its Japan-origin construction suggests a focus on build quality for reliable serial data transmission.

Installation Notes

The cable is 3 feet in length, providing sufficient reach for close-proximity device connections without excessive slack. As a passive cable, it requires no external power. Ensure the DB9 female connector is securely mated with the host device's port and the DB25 male connector is properly seated in the target device's port. The null modem configuration is fixed within the cable assembly.
