StarTech RKUNITAPE 49U Rack Unit Alignment Tape Strip

Overview

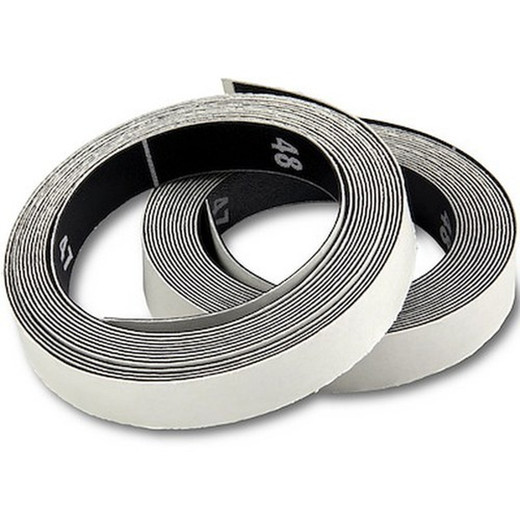

The StarTech RKUNITAPE is a self-adhesive rack unit alignment tape designed to mark unit boundaries on both rails of a standard server rack or open-frame rack enclosure. At 7.6 ft (2.3 m) in length, a single strip covers a full 49U rack from top to bottom — meaning one package of two strips handles both the left and right rails of one complete rack in a single installation pass.

If you've ever wrestled with a tape measure and a marker trying to eyeball rack unit positions before mounting a dense run of 1U switches, patch panels, or security appliances, this tape solves that problem directly. Stick it to the rail, align to the first U marker, and every subsequent unit boundary is already printed and pre-measured. It's a small item that prevents real installation errors — misaligned rails, cross-threaded cage nuts, and equipment mounted at the wrong U position are disproportionately common on fast-paced rack builds.

The RKUNITAPE ships as a 2-piece set — one strip per rail — so a single order equips one full rack. Each strip is 0.3 in (6.4 mm) wide and 0.4 in (1.0 cm) in profile height, keeping it flat against the rail without interfering with adjacent equipment flanges or cable management. Weight per strip is well under an ounce, so there's no structural consideration involved in the install.

Key Features

• 49U Coverage per Strip: Each strip spans a full 49U rack height at 7.6 ft (2.3 m) — one package covers both rails of a single rack completely, eliminating partial-coverage gaps that force you to eyeball the last few units.
• Pre-Printed Unit Markings: Rack unit positions are printed directly on the tape surface, so alignment is visual and immediate. No need to measure, mark, or re-verify during equipment installation — particularly useful when mounting multiple 1U devices in sequence.
• Low-Profile Form Factor: At just 0.3 in wide and 0.4 in in profile, the tape sits flush against the rail without creating a standoff that could interfere with equipment flanges, cable routing, or cage nut installation.
• Lightweight Construction: The full 2-strip set weighs 0.6 oz (18 g) — there's nothing to torque a rail or affect rack weight calculations. Applies cleanly without tools.
• Black Finish: Black color blends with standard black rack finishes, keeping the interior appearance consistent on open-frame and glass-door rack enclosures where visibility matters.
• 2-Pack Included: Two strips per package means one purchase completes one rack — no need to order separately for left and right rails. For multi-rack deployments, order one RKUNITAPE per rack.
• 2-Year Manufacturer Warranty: Backed by a 2-year manufacturer warranty — standard for StarTech rack accessories, and useful to know if adhesive or printing degrades in high-heat rack environments.

Integration and Compatibility

The RKUNITAPE is designed for standard 19-inch rack enclosures and open-frame racks following EIA-310 rack unit spacing (1U = 1.75 in / 44.45 mm). It is compatible with two-post and four-post racks, wall-mount enclosures with standard U spacing, and any rack infrastructure where equipment is mounted using standard cage nuts, clip nuts, or pre-threaded rails.

This tape is particularly useful in network switch and patch panel deployments where sequential 1U device mounting requires precise positional alignment across both rails before any equipment is seated. It also benefits mixed security and IT rack builds — common in enterprise and commercial installations where network video recorders, PoE switches, and access control servers share the same rack enclosure. For teams deploying server rack accessories at scale, pre-marking all racks before the equipment arrives on-site reduces installation time and callback risk. Pair with a rack mounting hardware kit for a complete install toolkit. For guidance on planning rack layouts in security deployments, see the rack infrastructure planning guide.

What's in the Box

• 2x StarTech RKUNITAPE rack unit alignment tape strips (one per rail)

Frequently Asked Questions

Q: How many racks does one RKUNITAPE package cover?

A: One package includes two strips — one for the left rail and one for the right rail — providing complete 49U coverage for a single standard rack. For multi-rack deployments, order one RKUNITAPE per rack.

Q: What rack height does the RKUNITAPE cover?

A: Each strip is 7.6 ft (2.3 m) long and covers up to 49U of rack height, which matches or exceeds most standard rack enclosures (42U is typical; 48U and 45U racks are also covered).

Q: Will the RKUNITAPE interfere with equipment flanges or cage nuts?

A: No. The strip is only 0.3 in (6.4 mm) wide and 0.4 in (1.0 cm) in profile height, so it sits flat against the rail without creating a standoff that would conflict with equipment mounting flanges or cage nut installation.

Q: Is the RKUNITAPE compatible with both two-post and four-post racks?

A: Yes. The tape adheres directly to the rail surface and is compatible with any standard 19-inch rack following EIA-310 unit spacing, including two-post, four-post, open-frame, and enclosed rack enclosures.

Q: What is the warranty on the RKUNITAPE?

A: The RKUNITAPE carries a 2-year manufacturer warranty from StarTech.

Q: How is the RKUNITAPE installed?

A: The strip is self-adhesive. Align the first unit marker with the top or bottom of the rail, press the tape flat along the rail surface, and trim if needed. No tools required. The 0.6 oz total weight (both strips) means no structural considerations apply.

Marty Allison

The RKUNITAPE is one of those rack accessories that sounds trivial until you've spent time correcting misaligned equipment after the fact. The 49U coverage per strip — 7.6 ft of pre-printed unit markings — means you can mark both rails of a full rack in under two minutes before any equipment arrives on the floor, and every device gets seated in the right position the first time.

Technical Highlights:

• 49U Length (7.6 ft per strip): Covers the full height of any standard rack enclosure in one continuous strip — no splicing, no gap at the top, no partial coverage on tall 48U cabinets.
• 0.3 in Width / 0.4 in Profile: Thin enough that it won't lift equipment flanges off the rail or create alignment offsets when seating cage nuts — a real concern with thicker adhesive labels used as substitutes.
• 2-Pack Configuration: Both rails of one rack are covered by a single purchase, which matters for procurement on large deployments — order count equals rack count, no math required.

Deployment Considerations:

• On high-density 1U deployments (security appliances, PoE switches, patch panels stacked sequentially), apply the tape before cage nuts are installed — it's significantly easier to read unit markings on a bare rail than around pre-populated hardware.
• In high-heat rack environments with poor airflow, monitor adhesive performance over time — the 2-year warranty covers defects, but thermal cycling in closed enclosures can affect adhesive bond on any self-adhesive tape product.

The RKUNITAPE is the right call for any rack build where multiple installers are working simultaneously — common on enterprise security rack deployments with NVRs, switches, and access control servers sharing a single enclosure. Consistent U-position marking eliminates the verbal coordination overhead that causes positioning errors on fast builds.
