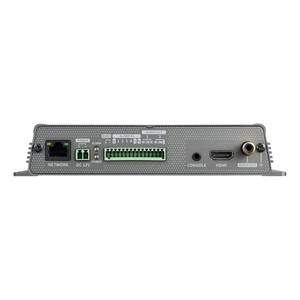

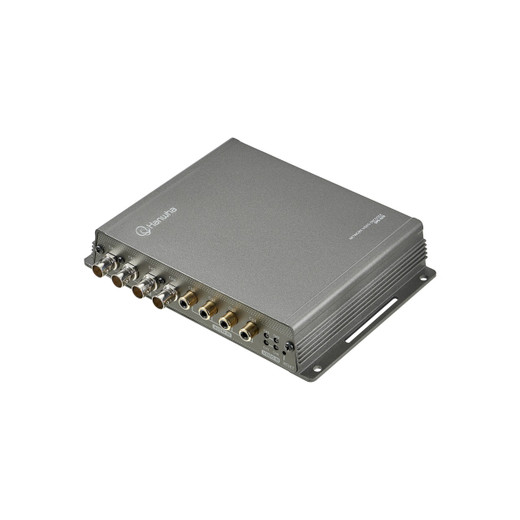

Hanwha SPE-420/KUS 4-Channel Encoder

Hanwha SPE-420/KUS 4-Channel Encoder

The Hanwha SPE-420/KUS is a professional-grade 4-channel video encoder that bridges legacy analog surveillance systems with modern IP-based network infrastructure. Designed for organizations seeking to modernize existing camera investments without full system replacement, this encoder converts analog video signals into standards-compliant IP streams for seamless integration with ONVIF-compatible video management systems.

Key Features

• 4-channel simultaneous analog-to-IP video encoding
• Support for multiple analog formats: AHD, CVI, TVI, and CVBS
• H.265, H.264, and MJPEG compression standards
• Up to 5MP resolution at 12fps per channel
• ONVIF protocol compliance for VMS integration
• PoE power delivery (IEEE 802.3af) or DC 12V alternative
• 4 audio inputs with 1 audio output for integrated sound
• 4 digital inputs and 2 digital outputs for alarm integration
• RS-485/422 interface for PTZ camera control
• HDMI output for local monitoring and verification

Video Encoding & Resolution Performance

The SPE-420/KUS delivers flexible resolution options optimized for different deployment scenarios. At maximum quality, the encoder processes 5MP video at 12fps per channel, while 1080p streams reach 30fps—suitable for real-time monitoring applications. Lower resolutions including 720p, WD1, 4CIF, and CIF are supported at 30fps for bandwidth-constrained environments. The encoder's native H.265 compression reduces storage and bandwidth requirements by up to 50% compared to H.264, while MJPEG remains available for legacy system compatibility.

Connectivity & Integration

This encoder simplifies multi-format analog camera environments through its broad input compatibility. Pelco C protocol support (CVBS mode) and ACP up-coax protocol (AHD mode) enable direct PTZ and device control without additional interfaces. The RS-485/422 serial interface provides an alternative control pathway for complex surveillance architectures. Audio integration includes 4 independent audio inputs and 1 output, enabling voice communication and sound event monitoring across all 4 channels.

Power & Deployment Flexibility

PoE power delivery eliminates the need for dedicated power infrastructure in many installations, reducing deployment complexity and cabling costs. Where PoE is unavailable, DC 12V operation provides an alternative power source. The combination of flexible power options and compact encoder form factor makes the SPE-420/KUS suitable for both retrofit projects and new hybrid surveillance environments.

Typical Applications

• Upgrading analog surveillance systems to IP-based VMS platforms
• Multi-site deployments with mixed analog and IP cameras
• Legacy system modernization without full camera replacement
• Transportation, retail, and facility management environments
• Hybrid surveillance networks requiring long-term transition periods

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The SPE-420/KUS addresses a practical challenge in enterprise surveillance: the need to preserve existing analog camera investments while modernizing infrastructure. Its broad analog format support (AHD, CVI, TVI, CVBS) reflects real-world deployments where camera vendors and ages vary across facilities. H.265 compression is particularly valuable in bandwidth-constrained environments or where storage efficiency directly impacts operational budgets.

The ONVIF compliance ensures compatibility with industry-standard VMS platforms, avoiding vendor lock-in. Audio and digital I/O capabilities enable motion detection, alarm triggering, and intercom functionality—features often required in enterprise security but easily overlooked in encoder specifications. PoE power simplifies cabling infrastructure, particularly valuable in retrofit scenarios where new runs are costly.

The 4-channel capacity makes this encoder cost-effective for moderate-scale analog-to-IP migrations.
