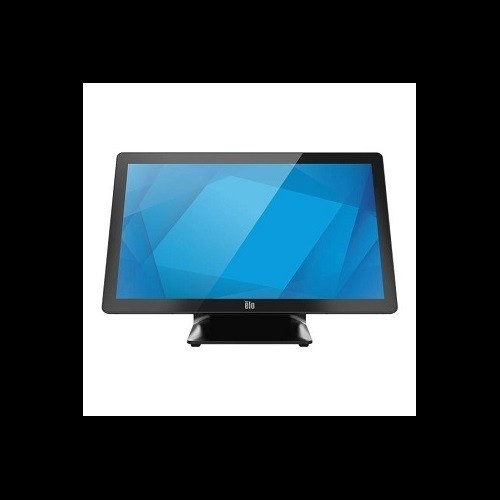

ELO Touch E428276 21.5-inch I-Series 3 All-in-One POS Terminal
Overview
The ELO Touch E428276 is a 21.5-inch integrated point-of-sale system built on Intel architecture, combining a full HD 1920×1080 touchscreen, integrated compute, and connectivity into a single footprint. This all-in-one form factor eliminates the need for separate display and CPU hardware, reducing cable clutter, lowering total installation time, and simplifying integration into retail, hospitality, warehouse, and kiosk environments where space is constrained or aesthetics matter. The E428276 runs Windows 11 or Windows 10, so migration from legacy POS systems and integration with existing software stacks is straightforward.
Key Features
- 21.5-inch Full HD 1920×1080 Display: Resolution sufficient for detailed transaction screens, inventory lookup, and kitchen display applications. The zero-bezel design reduces bezels around the display perimeter—meaningful if you're mounting multiple terminals in a row or need a cleaner retail appearance.
- Intel Celeron Processor: Entry-level x86 compute handles typical POS workloads—transaction processing, receipt printing, database queries—without overprovisioning. Adequate for single-terminal deployments; if you need per-terminal video transcoding or heavy local analytics, consider a higher-tier processor variant.
- 8GB RAM + 256GB SSD: 8GB meets typical POS OS and single-application requirements. 256GB SSD eliminates mechanical disk bottleneck during boot, application launch, and database queries—noticeably faster than older spinning-disk setups, especially in multi-shift retail where uptime matters.
- Projected Capacitive 10-Touch: Multi-touch input allows pinch-to-zoom, gesture-based navigation, and simultaneous multi-finger interaction. Responsive and accurate for both seated and standing operator positions. Works through light gloves (relevant in cold-chain or food-prep environments).
- Anti-glare, Zero-Bezel Panel: Anti-glare coating reduces reflections from overhead lighting and direct sunlight—critical in corner retail or window-facing kiosk placements. Zero-bezel aesthetic improves visual integration into modern POS cabinetry.
- Connectivity: Wi-Fi, Ethernet, Bluetooth 5.2: Ethernet (RJ-45) is the primary integration point—wired, deterministic, no interference concerns in high-density retail networks. Wi-Fi provides fallback or guest connectivity. Bluetooth 5.2 enables wireless pairing of peripherals (barcode scanners, receipt printers, payment terminals) without adding USB hubs or running additional cables.
- Included Stand: Black stand ships in the box, reducing secondary hardware sourcing. Wall-mount compatibility is standard for ELO I-Series terminals, though you'll need a separate VESA adapter.
Integration & Compatibility
The E428276 supports standard POS protocols and middleware. Windows 11/10 native drivers mean integration with major POS platforms (Square, Toast, Lightspeed, Oracle Micros) is vendor-native or via standard Ethernet/USB. Bluetooth 5.2 reduces peripheral cable congestion—pair wireless barcode scanners, label printers, and payment devices without adding external hubs. Projected capacitive touch means no stylus or calibration drift; cleaning is simple (isopropyl alcohol on microfiber cloth).
When to Choose a Different Model
If you need a larger display or higher resolution (for multi-register dashboard or kitchen display with smaller fonts), look at the ELO I-Series 4 or larger-diagonal variants in the same family. If budget is the primary driver and touch is optional, a traditional non-touch monitor paired with a separate compact PC may offer lower per-unit cost in high-volume orders. If you require fanless operation (dust-sensitive kitchens, outdoor food trucks), check for fanless Celeron variants within the ELO I-Series lineup.
Frequently Asked Questions
Q: Does the E428276 support external payment readers?
A: Yes. Bluetooth 5.2 and Ethernet enable wireless or wired connection to standard EMV/NFC payment terminals. Check your POS software documentation for certified reader models.
Q: Can I mount the E428276 to a wall instead of using the stand?
A: The E428276 supports VESA mounting. You'll need a separate VESA-compatible arm or wall bracket (not included); confirm torque and weight rating with the bracket manufacturer.
Q: What is the warranty on the E428276?
A: Contact ELO Touch or the reseller for the specific warranty term. Factory-new units typically include a 1-year manufacturer warranty on parts and labor.
Q: Is the touchscreen responsive in high-traffic retail environments?
A: Projected capacitive touch is accurate and responsive for continuous multi-shift use. The panel is rated for high touch cycle life. Anti-glare coating may slightly reduce peak brightness, but it improves usability in bright retail spaces.
Q: Can I upgrade the RAM or SSD in the E428276?
A: Internal upgrade capability depends on ELO's design. Check the technical documentation or contact ELO pre-purchase if future memory expansion is a requirement.
The ELO Touch E428276 is a solid compact all-in-one for retail and hospitality deployments where you need to minimize hardware footprint and installation labor. The 1920×1080 Full HD resolution paired with 21.5 inches is adequate for standard POS screens and single-application kiosk deployments, but don't expect to cram a multi-register dashboard onto this display—the pixel density and estate are tight for dense data layouts.
Technical Highlights:
- Projected Capacitive 10-Touch: Multi-touch is responsive and consistent across the panel. No calibration drift. Works reliably in high-touch-volume retail (200+ touches per shift per terminal). Anti-glare coating reduces reflections in bright spaces.
- Bluetooth 5.2 + Ethernet: Dual connectivity means you can wire the primary POS connection (deterministic, no latency concerns) and pair wireless barcode scanners and receipt printers without adding a USB hub. Reduces cable clutter in cramped register spaces.
- 8GB RAM + 256GB SSD: Sufficient for Windows 11 + single POS application. SSD boot times are noticeably faster than spinning disk—meaningful when you're rebooting for updates or recovering from a crash during service.
Deployment Considerations:
- The Celeron processor is entry-tier x86 compute. Single-terminal POS workloads are fine, but don't plan per-device video streaming, heavy local backup, or AI-based inventory analytics on this CPU without testing first.
- If you're planning VESA wall-mount instead of the included stand, budget for a secondary arm or bracket and verify weight and VESA pattern compatibility before ordering.
Deploy the E428276 where space is at a premium (corner registers, kiosk cabinets, small food-prep stations) and Windows POS software is non-negotiable. It's a pragmatic, no-frills terminal—not designed to impress on specs, but engineered to keep downtime low and training minimal.
