ELO Touch E543398 EloPOS Z30 15.6-Inch Android POS Terminal
Overview

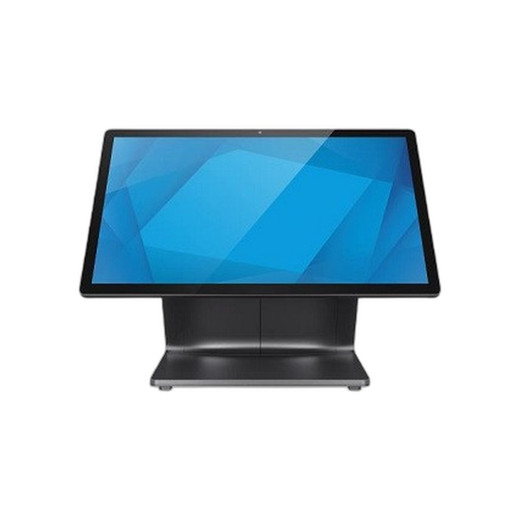

The ELO Touch E543398 is a 15.6-inch all-in-one POS terminal designed for retail, quick-service, and hospitality environments. It combines a 1920 x 1080 projected-capacitive touchscreen with an Android 14 operating system and the Qualcomm 6490 Octa-Core processor—enough processing headroom to handle multiple concurrent POS applications, payment processing, and cloud connectivity without lag. The device integrates Wi-Fi, Ethernet, and Bluetooth 5.2, providing flexible network options for wired stability or wireless deployment. An 8MP camera is included for receipt capture, QR code scanning, or integration with EloView management—useful if your deployment needs device auditing or remote support workflows.
Key Features
- 1920 x 1080 Projected-Capacitive 10-Touch Display: Full HD resolution delivers crisp imagery for menu systems and transaction screens; 10-touch support means multiple staff can interact simultaneously (important in busy kitchens or service counters where speed matters). Projected capacitive is responsive to gloved fingers and resists accidental activation compared to resistive screens.
- Qualcomm 6490 Octa-Core Processor with 8GB RAM: Eight cores provide sufficient throughput for multitasking—running the POS application, payment gateway integration, and background inventory sync without noticeable stalling. 8GB RAM prevents memory bottlenecks that would force app reloads during peak service.
- 64GB Internal Flash Storage: Adequate for the OS, primary POS application, and local transaction logs. If offline operation is critical, confirm your POS vendor supports local queuing; cloud-dependent systems may struggle if connectivity drops.
- Android 14 with Google Mobile Services (GMS): Native Google Play Store access and standard Android APIs simplify app deployment and updates. GMS certification means your POS vendor's Android apps will install without sideloading workarounds, reducing support overhead.
- Dual Connectivity (Wi-Fi + Ethernet + Bluetooth 5.2): Ethernet provides a hardwired backbone for high-traffic environments where Wi-Fi congestion is a risk; Wi-Fi 5.2 Bluetooth adds wireless peripherals (payment terminals, kitchen printers, bar code scanners) without additional USB complexity. Choose Ethernet in table-service or counter-heavy designs where you can run cabling; use Wi-Fi in mobile or temporary setups.
- 8MP Camera: Supports QR code scanning, receipt imaging, or integration with EloView remote management. Not a surveillance-class camera—useful only for transactional workflows or device monitoring, not for loss-prevention video.
- EloView Compatibility: Enables centralized device management, remote troubleshooting, and fleet-wide settings deployment if you operate multiple terminals. Reduces on-site support calls.
- Gray Finish, No Footprint Display (CFD): Compact footprint without a separate customer-facing secondary screen keeps counter space lean. The single display handles both staff interaction and, if needed, customer prompts (e.g., "Insert card")—confirm your POS UI is optimized for this split-use case.
Integration & Compatibility
The E543398 operates on Android 14 with GMS, meaning any POS application available on Google Play will install without vendor-specific workarounds. Ethernet and Wi-Fi connectivity integrate with standard restaurant or retail networks; Bluetooth 5.2 pairs with common peripherals (receipt printers, customer display adapters, payment readers). EloView management console allows remote configuration across multiple terminals, useful for chain operations. Confirm your POS software explicitly supports Android 14 and the Qualcomm 6490 processor—while standard compatibility is high, older or proprietary POS systems may require beta testing.
When to Choose a Different Model
If your use case demands a larger display (22-inch or greater), consider the larger variant in the ELO Touch EloPOS family. If you require a second customer-facing display for transaction confirmation, look for models with dual-screen configuration options. For very light-duty or kiosk applications, a smaller 7-inch or 10-inch tablet-based terminal may reduce cost and footprint. Conversely, if you need full Windows legacy software compatibility or a specific ISV certification, ELO Touch's Windows-based POS terminals in the same line may be more appropriate.
Frequently Asked Questions
Q: Does the E543398 support offline operation if my internet connection drops?
A: The terminal itself will continue running local applications, but POS functionality depends on your software vendor. Some cloud-only POS systems cannot queue transactions locally; others cache data and sync when connectivity resumes. Confirm with your POS provider whether offline capability is supported.
Q: Can I integrate the E543398 with a payment processor like Square or Toast?
A: Yes, if the payment processor offers an Android app (most do). Download from Google Play, configure API credentials, and pair via Bluetooth to any supported card reader. Ethernet or Wi-Fi carries transactions to the processor's gateway.
Q: What is the warranty on the E543398?
A: The unit ships with factory-new status and a full US manufacturer warranty. Contact the distributor or the manufacturer directly for warranty term specifics and coverage details.
Q: Is the 8MP camera suitable for loss prevention or surveillance?
A: No—the 8MP camera is designed for transactional imaging (receipt capture, QR codes, device monitoring via EloView). It lacks the resolution, frame rate, and low-light performance required for security surveillance. Deploy a separate security camera system for loss prevention.
Q: Can I mount the E543398 on an arm or VESA bracket?
A: The terminal supports standard VESA mounting. Confirm bracket compatibility with the 15.6-inch form factor and weight. Wall or swing-arm mounts are common in checkout or counter configurations.
Q: What happens if I need to replace the battery?
A: This is a mains-powered POS terminal (not a battery-operated device). Confirm your electrical and UPS design during site planning—recommend a small UPS to bridge power interruptions and allow graceful shutdown.
The ELO Touch E543398 is a practical fit for mid-market retail and QSR deployments where you need a single, reliable touchscreen terminal without the baggage of legacy Windows licensing. The 1920 x 1080 resolution and 10-touch responsiveness handle typical POS workflows smoothly—menu navigation, card swipes, and staff prompts render without flicker. The Qualcomm 6490 octa-core processor and 8GB RAM give you enough breathing room to run background sync, payment processing, and inventory apps simultaneously without the stuttering you'd see on older or cheaper hardware.
Technical Highlights:
- Android 14 with GMS: Unrestricted Play Store access means your POS vendor's app installs directly—no sideloading, no vendor firmware forks to maintain. Standard Android updates come through Google, not carrier delays.
- Dual Wired + Wireless Connectivity: Ethernet backbone handles high-transaction periods without Wi-Fi contention; Bluetooth 5.2 eliminates USB cable clutter for printers and readers. The combination beats terminals locked to Wi-Fi only—if your network drops, Ethernet keeps you running.
- 64GB Storage + 8GB RAM: Adequate for a single POS application and offline caching. Don't expect to run three concurrent heavy apps—the E543398 is optimized for one well-designed POS suite. If you need multi-app multitasking (POS + inventory + time clock all active), budget for the higher-tier ELO Touch models.
- 8MP Camera + EloView: Transactional imaging (receipt proof, QR scanning) is straightforward; EloView fleet management is handy if you operate 10+ terminals and want centralized config pushes. For smaller chains (2–5 locations), the overhead may not justify the cost.
Deployment Considerations:
- This terminal is mains-powered only—no battery. Plan your electrical layout and strongly recommend a small UPS (500VA–1kVA) to survive brief outages and allow controlled shutdown. A failed graceful shutdown can corrupt local transaction logs.
- Confirm your POS software explicitly supports Android 14 and Qualcomm 6490. Most major vendors (Toast, Square, TouchBistro, MarginEdge) do, but niche or legacy ISV apps may lag. Run a proof-of-concept in a test environment before rolling out across a multi-unit chain.
- The 8MP camera is not a security device. If you need loss-prevention video coverage, budget a separate IP camera system—don't rely on the terminal's camera for that role.
- The 15.6-inch form factor is ideal for counter-mounted or swing-arm configurations in QSR or fast-casual environments. In table-service or lounge settings where smaller tablets are preferable, consider a smaller ELO Touch model instead.
Position the E543398 in greenfield or refresh scenarios where you're willing to adopt Android and your POS software ecosystem already supports it. It excels in quick-service, retail, and hospitality counter setups where simplicity, reliability, and wireless peripherals matter more than ultra-thin form factor or dual-display configurations. Avoid it if you're locked into Windows-only POS legacy apps or require guaranteed offline operation for extended periods—those constraints demand a different platform.
