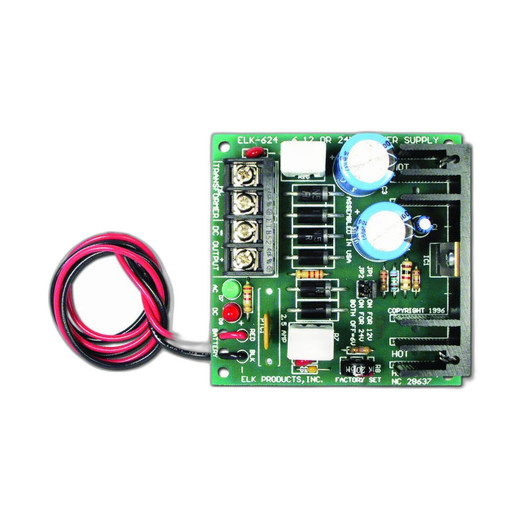

ELK Products ELK-P624 6VDC Battery Charger and Power Supply

Overview

The ELK-P624 is a 6VDC battery charger and power supply engineered to support ELK security system installations where regulated auxiliary power and battery maintenance are required. This accessory delivers stable DC power while simultaneously managing battery charging cycles, ensuring continuous operation during mains power loss. The unit is sized for integration into standard security system enclosures, making it suitable for both residential and commercial security control panel deployments where backup power assurance is critical.

Key Features and Specifications

• 6VDC Regulated Output: Delivers stable, noise-free DC power to ELK control panels and compatible ancillary devices. Regulated output prevents voltage sag that can degrade logic circuits or cause false alarms during high-load transients — a real concern when multiple sensors fire simultaneously.
• Integrated Battery Charging: Built-in charger maintains backup battery condition automatically, eliminating the need for a separate charging module. This reduces component count in the enclosure and simplifies commissioning, since the charger and supply are managed as a single unit.
• Enclosure-Compatible Form Factor: Designed to fit standard security system control panel housings. Its compact footprint means you won't sacrifice internal space for power distribution or risk cramped wiring that invites installation errors.
• ELK System Integration: Purpose-built for ELK control panels requiring 6VDC auxiliary supply and battery float-charging. Always verify compatibility with your specific ELK panel model before ordering, as different ELK generations may have varying power and connector pinouts.
• Backup Power Management: Ensures the system remains operational during AC mains loss, allowing sensors, keypad signaling, and low-power accessories to function until utility power returns or the battery depletes. This is essential in installations where the control panel must maintain zone supervision and alarm communication even during power events.
• Straightforward Integration: Mounts within the control panel enclosure and connects via standard terminal blocks or proprietary ELK connectors. Integration complexity is minimal compared to retrofit power architectures, reducing on-site engineering time and commissioning risk.

Integration and Compatibility

The ELK-P624 integrates with ELK security control systems that require 6VDC auxiliary power or battery charging functionality. It is suitable for installation in standard security system enclosures where backup power and charger functions are required. Verify compatibility with your specific ELK panel model before ordering — ELK's product line spans multiple generations, and connector types, voltage rails, and charging current ratings vary. Contact your system integrator or ELK technical support to confirm the ELK-P624 is the correct fit for your panel revision.

When to Choose a Different Model

If your ELK installation requires a higher auxiliary voltage (e.g., 12VDC) or serves a different security system brand, you will need a purpose-built charger and supply for that platform. Likewise, if your panel already includes an onboard power supply and charger, the ELK-P624 is redundant. For non-ELK systems, consult your control panel's power accessory documentation to avoid compatibility issues.

Frequently Asked Questions

Q: Is the ELK-P624 suitable for retrofit installations on older ELK panels?

A: Possibly, but verify the panel revision and power rail specifications first. Older ELK systems may use different connectors or charging algorithms. Contact ELK support with your panel model to confirm compatibility.

Q: What battery types does the ELK-P624 charger support?

A: The charger is designed to float-charge sealed lead-acid (SLA) or similar 6VDC backup batteries commonly used in security control panels. Consult the ELK-P624 datasheet or ELK technical documentation for approved battery types and capacity ratings to avoid overcharging or battery damage.

Q: Can the ELK-P624 be used as a standalone 6VDC power supply outside an ELK panel?

A: The ELK-P624 is purpose-built for ELK control panel integration. Using it for non-ELK applications may void warranty and create compatibility or safety risks. Stick with the manufacturer's intended use case.

Q: Does the ELK-P624 include mounting hardware?

A: Check the product documentation or contact the supplier for a detailed kit contents list. Mounting hardware may or may not be included depending on your ELK panel enclosure type.

Q: What happens if the ELK-P624 fails during operation?

A: If the charger fails, the backup battery will drain (or fail to maintain charge), and the system will lose auxiliary power when AC mains power is lost. Install the unit in a location accessible for inspection and testing as part of your regular system maintenance cycle.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The ELK-P624 is a straightforward auxiliary power and battery charging solution for ELK security deployments where backup power integrity directly affects panel availability during AC mains outages. In my experience, this is one of those accessories where the choice is not really about features — it's about compatibility lock-in and proper power rail management. You either need this exact unit for your ELK panel revision, or you don't. There's very little wiggle room.

Technical Highlights:

• 6VDC Regulated Output: Voltage stability is critical for microprocessor-based control panels. Sag or ripple on the auxiliary rail can cause false supervision faults, sensor dropout, or unexpected restarts. The ELK-P624's regulated output keeps the panel's logic and sensor circuits stable even during transient load spikes.
• Integrated Float Charging: Built-in battery charger eliminates the need for external charging circuits. This reduces BOM complexity inside the enclosure and ensures charging parameters are matched to the panel's battery expectations — mismatched chargers degrade battery life or fail to maintain full charge capacity.
• Enclosure Integration: Compact form factor fits standard ELK control panel housings. This matters because undersized enclosures with poor thermal dissipation can cause charger thermal derating, which directly impacts battery charge time and long-term health.

Deployment Considerations:

• Verify connector type and voltage rail pinout against your specific ELK panel model. ELK's product family has multiple generations, and older panels may have different auxiliary supply connectors or charging current requirements. Installing a mismatched charger can damage the panel's power distribution circuit or fail to charge the backup battery.
• Battery type matters. The ELK-P624 is designed for standard sealed lead-acid (SLA) backup batteries commonly used in residential and commercial control panels. If your installation uses a different battery chemistry (e.g., lithium), the charger may be incompatible — check the datasheet and ELK's approved battery list.
• The charger depends on stable AC mains input to function. If your mains power is subject to frequent sags, brownouts, or phase imbalance, consider adding upstream conditioning (e.g., UPS or surge protection) to protect the charger circuit and extend its service life.

Best suited for new ELK installations or panel replacements where you're building the power architecture from scratch. If you're retrofitting an older ELK panel, this accessory can work — but always verify the panel revision and charging algorithm compatibility first. A wrong charger will either sit dormant or quietly damage your battery and control panel over time. Don't guess; verify with ELK technical support.
