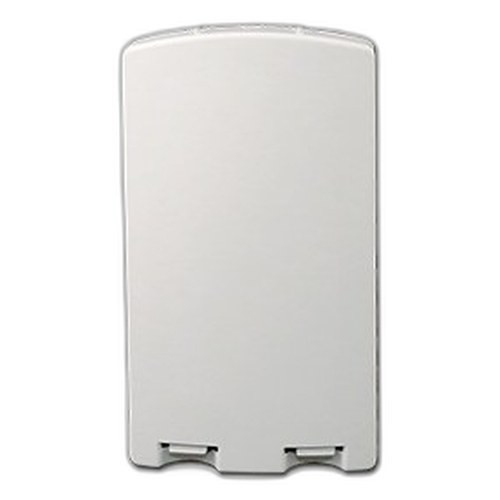

ELK Products ELK-M1XRF2H RF Wireless Receiver Module

Overview

The ELK-M1XRF2H is an RF wireless receiver module engineered for direct integration with ELK M1 series control panels. This accessory module adds wireless communication capability to wired M1 systems, allowing you to deploy wireless sensors and devices without running additional cable runs through walls, ceilings, or conduit — a significant labor savings in retrofit scenarios or buildings where trenching is impractical. The ELK-M1XRF2H (often searched as ELK M1XRF2H) expands your M1 deployment flexibility, particularly useful in residential and small commercial security installations where cost-effective wireless coverage is needed alongside hardwired backbone devices.

Key Features

• M1 Control Panel Integration: Plugs directly into ELK M1 series panels, eliminating the need for external bridges or intermediary gateways. Your existing M1 configuration handles all wireless device management and logic directly from the panel — fewer network dependencies and simpler troubleshooting.
• Wireless Sensor Support: Receives RF signals from compatible wireless door/window sensors, motion detectors, and other battery-powered devices. Avoids the cost and time of running hardwired sensor loops in locations where access is restricted or aesthetic concerns arise.
• Plug-and-Play Module Design: Installs as a direct accessory to the M1 panel without external power supplies or separate mounting hardware. Your installer gets a faster deployment with fewer points of failure in the RF receiver circuit.
• Cost-Effective Coverage: Wireless sensors typically cost less per device than hardwired counterparts when labor for cable installation is factored in. The ELK-M1XRF2H makes that economics even more favorable by integrating RF reception into the M1 itself rather than requiring a standalone receiver box.
• Standard M1 Programming: All wireless devices registered to the ELK-M1XRF2H are managed through native M1 control logic and programming menus. No separate RF management software or additional licensing required — your existing M1 training and tools remain current.
• Compact Form Factor: Module size allows mounting in standard M1 control panel enclosures without significant space penalties, preserving room for future expansion cards or terminal blocks.

Integration & Compatibility

The ELK-M1XRF2H is designed for residential and small-to-medium commercial deployments using ELK M1 control panels. It pairs with the ELK M1 control panel family to add RF wireless device communication without replacing or upgrading the core control system. Wireless devices are programmed into the M1 using standard zone assignment and trigger configuration — no separate software stack needed. This direct integration makes the ELK-M1XRF2H an economical choice for mixed-deployment sites where some zones are hardwired and others benefit from wireless flexibility.

Typical Deployment Scenarios

• Retrofit Installations: Adding perimeter coverage to existing hardwired systems in older buildings where running new sensor cable is prohibitively expensive.
• Interior Area Coverage: Deploying motion detectors and door sensors in interior zones where running conduit through finished spaces creates aesthetic or structural concerns.
• Temporary or Modular Spaces: Warehouses, pop-up facilities, or shared spaces where sensor placement needs to change — wireless devices move easily without rewiring.
• Mixed-Technology Sites: Blending hardwired sensors on critical doors/windows with wireless coverage for secondary zones, optimizing cost and reliability.

When to Choose a Different Approach

If your project demands hardwired-only reliability or operates in an RF-noisy environment (industrial plants with heavy machinery, hospitals with medical RF equipment) consider a fully hardwired M1 configuration or consult ELK on RF interference mitigation. Also verify that the wireless sensors you intend to deploy are certified compatible with the ELK-M1XRF2H receiver before committing to a wireless-heavy design.

Frequently Asked Questions

Q: Is the ELK-M1XRF2H compatible with all M1 control panel versions?

A: The ELK-M1XRF2H is engineered for ELK M1 series panels. Confirm your M1 model supports expansion modules; most do, but consult the M1 hardware guide to verify internal slot availability and firmware requirements before purchasing.

Q: What wireless sensors work with the ELK-M1XRF2H?

A: The module receives RF signals from ELK-compatible wireless sensors. Verify sensor model compatibility with your ELK distributor or the product datasheet before ordering — third-party RF devices may not pair reliably without additional integration work.

Q: Does the ELK-M1XRF2H require a separate power supply?

A: No. The module draws power from the M1 control panel itself through the expansion slot. No external power supply or additional wiring needed — install and configure.

Q: Can wireless sensors programmed to the ELK-M1XRF2H trigger M1 automations and alerts?

A: Yes. Once wireless devices are registered as zones, they behave identically to hardwired zones in M1 programming logic — automations, alerts, and conditional rules all function normally.

Q: What is the RF signal range of the ELK-M1XRF2H?

A: Refer to the product datasheet for specific range specifications. Range varies based on RF band, antenna placement, building materials, and local interference. Test coverage before final deployment in RF-sensitive sites.

Q: Is a separate RF antenna required, or is one integrated?

A: Consult the product documentation to confirm antenna configuration. Some RF receiver modules include integrated antennas; others require external mounting for optimal coverage.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The ELK-M1XRF2H is a straightforward wireless receiver expansion for M1 control panels — if your site already runs an M1 backbone, adding RF coverage is faster and cheaper than running new hardwired sensor loops. The module integrates cleanly into the M1's native programming and zone management, so you're not juggling a separate RF control interface or learning new management software.

Technical Highlights:

• Direct M1 Integration: Module slots into the M1 control panel without external bridges, gateways, or separate RF management software — your M1 handles all wireless device registration and logic directly.
• Native Zone Programming: Wireless sensors appear as standard M1 zones in your programming menus; automations, alerts, and conditional rules all function identically to hardwired devices — no learning curve for existing M1 users.
• Panel-Powered Design: Draws power from the M1 slot itself — no external supply, no additional wiring, no extra enclosure real estate beyond the module footprint.

Deployment Considerations:

• RF range varies significantly with building materials, antenna placement, and interference — test sensor coverage in situ before committing all coverage zones to wireless. Retrofit projects in older masonry buildings often see reduced effective range.
• Wireless device battery life and replacement logistics must be factored into long-term operational costs. Unlike hardwired sensors, RF devices require periodic battery service — plan for a battery replacement schedule in your operations workflow.
• Verify RF sensor compatibility before ordering. ELK-compatible wireless devices are defined in the M1 support matrix; third-party RF sensors may not pair or may require firmware updates to the ELK-M1XRF2H or the M1 itself.

The ELK-M1XRF2H is the right fit for retrofit and mixed-deployment M1 sites where the cost of running new hardwired loops outweighs the operational overhead of RF device maintenance — particularly in commercial buildings where interior perimeter and secondary zone coverage needs wireless flexibility without ripping out walls.
