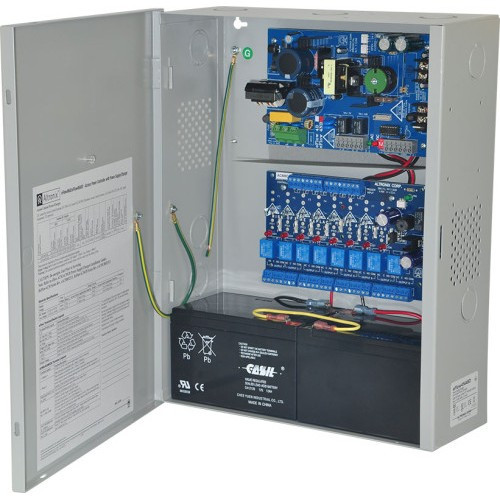

Altronix EFLOW4NX PWR SPLY W/ACM8CB - EFLOW4NA8DV

Altronix EFLOW4NA8DV Concise Descriptor

Overview

The Altronix EFLOW4NA8DV is a versatile power distribution and control system designed for access control applications. It integrates a high-efficiency power supply with an 8-output supervised access control module (ACM8CB) into a single unit. This consolidates power and control, reducing installation complexity and footprint for systems requiring multiple door controllers or lock power outputs. It's ideal for installations where space is at a premium and reliable, supervised power is critical for security.

Compatibility

This unit is designed to integrate with various access control systems that require 12VDC or 24VDC power and utilize supervised outputs. It is directly compatible with Altronix power distribution products and can be used with most major access control brands that accept standard voltage inputs and relay outputs for door status and lock control. The ACM8CB module specifically provides 8 supervised outputs, each configurable for fail-safe or fail-secure operation.

Installation Notes

The EFLOW4NA8DV requires a 115VAC or 230VAC input. The unit provides 12VDC or 24VDC output, selectable via a jumper. Each of the 8 outputs on the ACM8CB module can be individually configured for normally open (NO) or normally closed (NC) operation, supporting a wide range of lock types and signaling devices. The module also includes form C relay outputs for reporting system status.

What's in the Box

• 1x Altronix EFLOW4NA8DV Power Supply w/ ACM8CB
