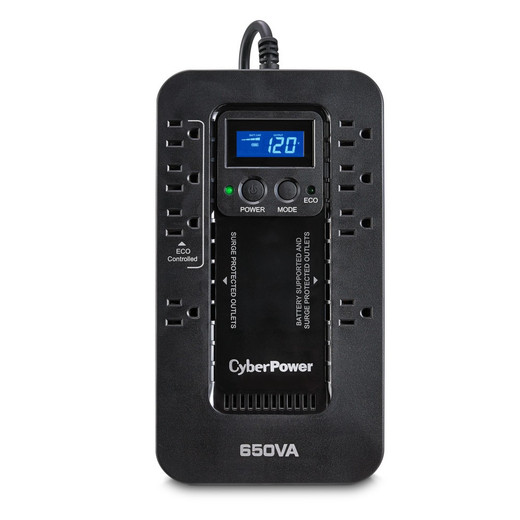

CyberPower EC650LCD Standby UPS

Overview

The CyberPower EC650LCD is a compact standby UPS designed to provide battery backup and surge protection for critical electronics. It solves the problem of unexpected power loss or fluctuations by offering a stable power source for devices like desktop computers, workstations, and networking equipment. Its standby topology means it switches to battery power only when AC power deviates from nominal levels, conserving energy. With its 390W/650VA capacity and 8 NEMA 5-15R outlets, it's suitable for small office or home entertainment setups. The multifunction LCD display provides real-time status updates, and the ECO mode contributes to energy efficiency, earning it an ENERGY STAR certification.

Compatibility

This UPS is compatible with standard 120 VAC equipment. It is suitable for protecting desktop computers, workstations, networking devices, and home entertainment systems. It is not designed for inductive loads such as motors or pumps, or for high-draw equipment exceeding its 390W capacity. The 4 battery+surge protected outlets and 3 ECO controlled outlets offer flexible power distribution for various devices within a typical office or entertainment environment.

Installation Notes

The unit requires a standard NEMA 5-15P grounded outlet for input power. It features a 5 ft cord with a right-angle 45° offset plug to facilitate placement. The operating temperature range is 32-104°F (0-40°C) with 0-90% non-condensing humidity. Its compact form factor (10.6 x 3.1 x 5.9 in) allows for easy placement on a desk or shelf. The unit utilizes a 12V Sealed Lead-Acid battery, providing approximately 2.8 minutes of runtime at full load (390W) and 8.4 minutes at half load (approx. 195W). Recharge time is approximately 8 hours to 100% capacity.
