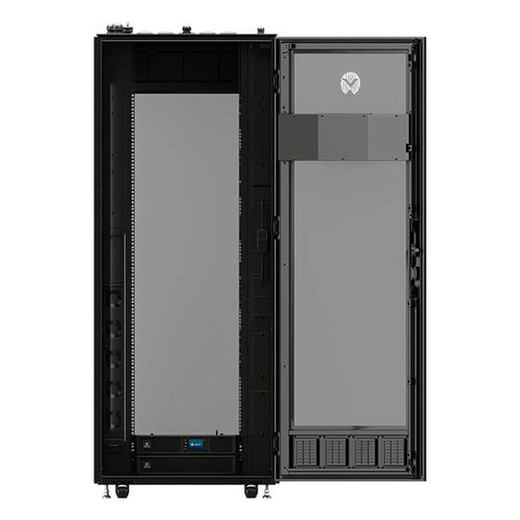

Vertiv 7201E-2436-B-1032 37U Server Rack Cabinet
Overview
The Vertiv 7201E-2436-B-1032 is a 37U rack enclosure built to standard 19-inch EIA rail spacing in a 24-inch-wide, 36-inch-deep black steel cabinet. At 37U of usable rack space, it accommodates a full complement of 1U and 2U servers, network switches, patch panels, and power distribution units in a single enclosure — the right footprint for mid-density IT closets, edge compute deployments, and security head-end rooms where consolidating equipment in one locked column matters. The 36-inch depth handles most 1U rackmount NVRs, managed PoE switches, and 2U servers without forcing tight cable bends at the rear. For network infrastructure deployments pairing cameras with local compute, this depth clears most modern 1U and 2U equipment without modification.
Key Features
- 37U Capacity: 37 rack units of usable space means you can mix 1U patch panels, 1U switches, 2U NVRs, and a 2U UPS in a single enclosure without running out of vertical room — typical for a mid-size surveillance head-end or edge IT room.
- 24-Inch Width: Standard 19-inch EIA rail spacing within a 24-inch-wide outer frame. The extra width beyond the 19-inch rail set leaves room for vertical cable managers on either side, keeping cable runs organized without eating into usable rack units.
- 36-Inch Depth: Deep enough to seat virtually all 1U and 2U rackmount equipment — including most NVRs and PoE switches — without risking rear-panel cable pinch points. Shallower 24-inch racks can force awkward bends on equipment with rear-exit power cabling.
- Black Finish: Black powder-coat finish blends into server room and IDF closet environments without visual clutter. Consistent with standard data center and security equipment room aesthetics.
Integration and Compatibility
The 7201E-2436-B-1032 (often searched as 7201E 2436 B 1032) follows EIA-310 19-inch rail standards, making it compatible with standard rackmount equipment from virtually all vendors. Pair it with managed PoE switches, 1U/2U NVRs, rackmount UPS units, and patch panels. For full Vertiv infrastructure integration, it pairs naturally with Vertiv PDUs and UPS systems that share the same rack family. Consult your equipment vendor for specific rear-depth and rail-depth requirements before ordering — 36 inches of total depth includes the door, so usable interior depth will be slightly less depending on door and frame construction specifics not detailed in available evidence.
Frequently Asked Questions
Q: What is the usable rack space in the Vertiv 7201E-2436-B-1032?
A: The cabinet provides 37U of rack space, accommodating standard 19-inch EIA rackmount equipment.
Q: What is the overall footprint of the 7201E-2436-B-1032?
A: The cabinet is 24 inches wide and 36 inches deep. Height corresponds to 37U plus frame — exact overall height in inches is not available in current evidence; consult the Vertiv datasheet for precise external dimensions.
Q: Is the 7201E-2436-B-1032 compatible with standard 19-inch rackmount equipment?
A: Yes. The cabinet uses EIA-310 standard 19-inch rail spacing, making it compatible with virtually all standard rackmount hardware from any vendor.
Q: What is the maximum load capacity of this rack?
A: Load capacity data is not available in current evidence. Contact Vertiv or refer to the official Vertiv datasheet for static and dynamic load ratings before planning a high-density deployment.
Q: Does the 7201E-2436-B-1032 come with cable management accessories?
A: Package contents including cable management accessories are not confirmed in available evidence. Verify included accessories with the product datasheet or your order confirmation.
The 7201E-2436-B-1032 is the configuration I reach for when a project needs a mid-density column that won't fight the equipment. The 36-inch depth is the spec that matters most in practice — at 36 inches, you're not forcing rear cable elbows on a 1U managed switch or cramming a 2U NVR against the back door, which is a real issue I've seen on 24-inch-deep racks in smaller IDF closets.
Technical Highlights:
- 37U Capacity: Enough vertical space for a full surveillance head-end stack — PoE switch, patch panel, NVR, UPS, and spare units — without a second column.
- 36-Inch Interior Depth: Clears rear-exhaust equipment and full-depth servers; the 24-inch-deep variant of this line would require equipment selection compromises that 36 inches avoids.
- 24-Inch Width: Standard outer width leaves room alongside the 19-inch rails for vertical cable management without consuming rack units — a practical cable routing advantage over narrower frames.
Deployment Considerations:
- Confirm available floor footprint before ordering — 24x36 inches is the cabinet shell, and you'll need clearance in front and rear for door swing and airflow; plan for at least 36 inches of front access clearance in tight IDF rooms.
- Load capacity and static/dynamic ratings are not confirmed from available evidence — for high-density server or UPS deployments, verify the rated weight limit from the Vertiv datasheet before populating all 37U.
This cabinet is the right fit for a security or IT head-end room where you're consolidating a full NVR stack, PoE switching, and power management in one column — specifically where 24-inch-deep racks have caused rear-cable problems in past installs.
