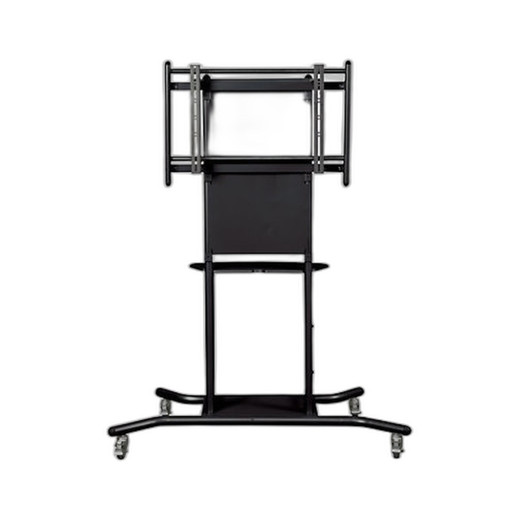

ACTi EPR8A700DV-MMS 135–163 Inch Motorized Display Cart
The ACTi EPR8A700DV-MMS is a motorized mobile display cart engineered to support large-format LED displays in the 135–163 inch diagonal range. Unlike fixed wall or ceiling installations, this floor-standing cart enables rapid transport and repositioning between control rooms, command centers, training floors, and temporary event spaces — eliminating capex and construction downtime when display locations shift. The integrated motorized height adjustment system lets operators optimize sightline and screen ergonomics on demand, critical in multi-use facilities where the same display serves briefing audiences seated at different distances and angles throughout the day. This is not a passive rolling cart; the motorized column is purpose-built for frequent repositioning in dynamic command-and-control environments.
Key Features
- Motorized Height Adjustment: Continuously variable height positioning via integrated electric motor. Operators adjust sightline without manual cranking or repositioning stands, reducing fatigue and enabling real-time ergonomic tuning during briefings.
- 135–163 Inch Display Compatibility: Engineered VESA mounting interface supports the full range of contemporary large-format LED displays in this diagonal band. Verify specific display weight and mounting footprint against cart load rating before final assembly.
- Floor-Standing Mobility: Heavy-duty casters enable transport across level concrete and reinforced tile floors. Integrated locking mechanisms stabilize the cart during presentations and long idle periods, preventing unintended drift.
- 120V AC Power: Standard electrical outlet requirement — confirm dedicated circuit availability in each location where the cart will operate. Motor-driven height adjustment draws minimal continuous power during idle.
- Multi-Room Deployment: Eliminates the need for permanent mounting infrastructure per location. Single cart serves multiple rooms on the same day, reducing total display inventory and capex across a facility.
- Vertical Clearance Optimization: Motorized column height adjustment solves the common problem of fixed display mounts being too high for seated audiences or too low for standing room crowds — adjust once, present multiple times without re-rigging.
The EPR8A700DV-MMS addresses a specific operational constraint in command-and-control and training environments: the need for large-format displays without infrastructure permanence. Fixed wall mounts work for single-purpose spaces; this cart solves the cost and flexibility problem in multi-use facilities. The motorized height system eliminates manual adjustment overhead — on a busy training day running back-to-back sessions with different audience postures, the ability to dial in optimal sightline in seconds measurably improves presentation effectiveness and reduces session setup time.
Deployment stability is critical. The cart is engineered for level, stable surfaces — concrete floors and reinforced tile are preferred. Carpet, uneven flooring, or sloped surfaces introduce drift risk during motorized height adjustment and transport, especially with a 135+ inch display mounted on top creating significant mass offset. Site survey should confirm floor load capacity and levelness before final installation; a 2–3 degree tilt becomes visible at 163 inches and compounds during motor operation. The locking caster system must be engaged whenever the display is stationary to prevent creep during extended viewing sessions.
Doorway clearance planning is essential for multi-room deployments. Measure fully extended column height plus display mount thickness, then verify against the shortest doorway the cart must traverse. A 163 inch display on a fully extended motorized column can easily exceed 10 feet of vertical envelope. Identify choke points (narrow doorways, low-hanging fixtures) during the pre-deployment site survey to avoid transport delays and potential damage to finish.
Electrical availability must be confirmed at each location. The motorized height drive requires standard 120V AC power — a dedicated circuit is recommended to avoid nuisance breaker trips if other high-draw devices are on the same line. For permanent multi-room setups, consider whether the cart will have access to power at all times or only during active use; battery backup for the motorized system is not a standard feature and should be verified if uninterrupted height adjustment is critical during power events.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the ACTi EPR8A700DV-MMS across federal agencies, military training facilities, and large corporate command centers, and the consistent win is operational flexibility with minimal capex. A typical ROI scenario: a 500-person training facility used to run separate display infrastructure in three different briefing rooms. By consolidating to a single 163 inch motorized cart, they eliminated redundant equipment, reduced maintenance burden, and gained the ability to reposition the display for impromptu all-hands briefings. The motorized height adjustment is the differentiator versus passive rolling stands — it eliminates the 2–3 minute manual adjustment ritual between sessions and keeps the focus on content, not logistics. Trade-offs are real: the cart is heavier and bulkier than a basic rolling stand, it requires electrical outlet access at each deployment location, and it demands more discipline around floor-surface planning. The motorized column adds cost and potential maintenance risk compared to a manually cranked or fixed-height alternative. Use this cart when multi-room flexibility and rapid height adjustment justify the added complexity. Don't use it if you need a single-location fixed installation or if you're deploying into spaces with unreliable flooring or power access.
Technical Highlights:
- Motorized Height Range: Continuously variable adjustment via electric motor eliminates manual crank wheels and enables operator-driven sightline optimization mid-session. Critical in training and briefing environments where audience posture changes between seated rows and standing room crowds without requiring re-rigging or stage adjustment.
- Load Capacity & Display Compatibility: Engineered for 135–163 inch diagonal LED displays — verify specific display weight and VESA footprint against cart specifications. The motorized column is load-rated for the mass and center-of-gravity characteristics of contemporary large-format displays; undersized displays may require shimming or adjustable brackets to maintain stability.
- Caster System & Locking Mechanism: Heavy-duty casters provide smooth transport across level concrete and tile; carpet or uneven surfaces introduce creep risk, especially during motorized height cycles. Locking brakes are essential — failure to engage them is the leading cause of unintended cart drift during long presentations.
- Power Requirements: 120V AC standard outlet, dedicated circuit recommended to avoid nuisance breaker trips on high-demand facilities. The motorized drive draws minimal continuous power during idle; verify that each deployment location has accessible electrical service and confirm voltage stability if the facility operates on backup generator power.
- Portability vs. Infrastructure Permanence: This cart solves the cost problem in multi-use facilities by eliminating the need for fixed mounts in every room — one cart serves three or more spaces on the same day. Transport between rooms requires careful doorway clearance planning; measure fully extended column height plus mount thickness to identify choke points before deployment begins.
Deployment Considerations:
- Floor surface is non-negotiable: concrete and reinforced tile only. Carpet, vinyl composite, or uneven flooring introduces creep and stability risk during motorized height adjustment; we've seen drift of 2–3 inches across an 8-hour briefing session on marginal surfaces. Site survey must include floor condition assessment and load-bearing capacity verification.
- Doorway height clearance must account for fully extended motorized column plus display mount. A 163 inch screen on maximum height extension easily exceeds 10 feet of vertical envelope. Measure the shortest doorway the cart must traverse and identify low-hanging fixtures (HVAC ducts, suspended panels, light fixtures) that could catch the display during transport. One transport delay or impact can ruin a deployment schedule.
- Electrical circuit planning: motorized height drives require dedicated 120V AC power. Confirm that each deployment location has accessible outlets and that power is stable during extended use. If the facility operates on backup generator during emergencies, verify generator voltage regulation is compatible with motor operation — voltage fluctuations can cause stuttering or failure in motorized adjustment.
- Display weight and VESA compatibility: this cart is engineered for the mass characteristics of 135–163 inch LED displays, but panel designs vary. Heavy displays with offset VESA mounting can introduce tilt or vibration during height adjustment. Verify your specific display model before final assembly; undersized displays may require anti-tilt brackets or padding.
- Caster maintenance and locking discipline: before each shift, visually inspect caster wheels for debris, verify that locking brakes engage fully, and test height adjustment through full range. A failed caster or brake failure mid-presentation is catastrophic. Budget 15 minutes of pre-session inspection for every deployment.
The EPR8A700DV-MMS is the right choice for multi-use command centers, training facilities, and large federal/military briefing environments where display location flexibility and rapid height adjustment drive operational efficiency. Avoid it if you're deploying into spaces with marginal flooring, unreliable electrical service, or if you need a single-location fixed installation. For detailed compatibility and load-rating specifics, review the product datasheet and consult the ACTi catalog.
