Panduit DUCT COVER PVC 3W X 6 LGRAY - C3LG6

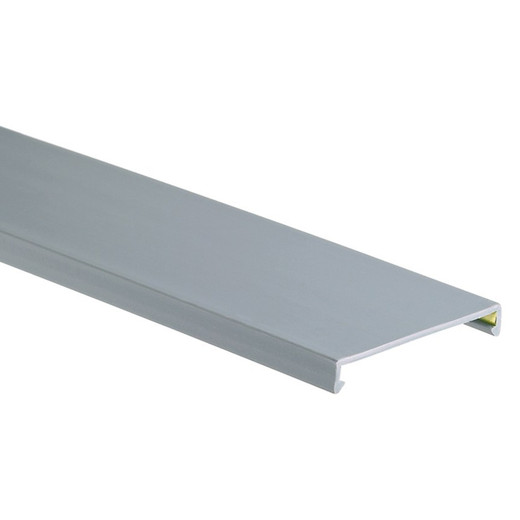

Panduit C3LG6 PVC Snap-On Duct Cover, 3-Inch Wide, 6-Foot Length, Light Gray

Overview

The Panduit C3LG6 is a snap-on PVC duct cover designed for use with 3-inch-wide (76.2 mm) cable management duct systems. At 6 feet (1.8 m) per section, it provides continuous, clean coverage over open-slot wire duct runs in control panels, server racks, and structured cabling environments. If you're running Panduit wire duct in an industrial panel or data center cabinet, the C3LG6 is the matching cover that locks the installation together — mechanically and aesthetically. Light gray finish is the standard for most cable management deployments where color-coded infrastructure isn't required.

Key Features

• Snap-On Installation: The snap-on mount method means no tools, no fasteners, no additional hardware — covers seat directly onto the duct with hand pressure. On a large panel build with dozens of duct sections, this saves meaningful time compared to screw-retained covers.
• 3-Inch (76.2 mm) Duct Width: Sized specifically for 3-inch duct — not a universal fit. Verify your installed duct is Panduit 3-inch series (overall cover width is 82.6 mm) before ordering. One millimeter of mismatch means the snap won't seat cleanly.
• 6-Foot (1.8 m) Sections: Full 6-foot length minimizes the number of cover joints per run. Fewer joints means a cleaner visual line and fewer potential snag points when pulling cables after installation.
• PVC Construction: PVC provides chemical resistance and dimensional stability appropriate for indoor industrial environments. It won't corrode in high-humidity control rooms the way metal alternatives can, and it holds its form at the rated temperature range.
• UL94 V-0 Flame Rating: V-0 is the most stringent vertical burn classification under UL 94 — material self-extinguishes within 10 seconds, with no dripping of flaming particles. Required by many building codes and panel standards for enclosed electrical enclosures. If your project spec calls out V-0, the C3LG6 meets it.
• 122°F (50°C) Maximum Continuous Temperature: Rated for continuous operation up to 50°C — suitable for most commercial and industrial control panel interiors. If your cabinet runs hotter than 50°C continuously (heavy VFD environments, for example), confirm thermal conditions before specifying PVC duct covers.
• Multi-Standard Compliance: UL Recognized, CSA Certified, CE Compliant, and RoHS Compliant. That combination covers North American electrical panel requirements (UL/CSA) plus European CE marking and the EU RoHS hazardous-substance directive — useful when building panels destined for both markets from a single BOM.
• Light Gray Color: Standard light gray matches the majority of Panduit duct in commercial and industrial panel builds. Consistent color across duct body and cover simplifies documentation photos and makes panel audits easier when tracing wire routes.
• Profile Dimensions: Overall height of 9.4 mm and overall width of 82.6 mm. Low-profile cover doesn't add meaningful depth to a duct run — relevant when cabinet real estate is tight and every millimeter of clearance matters for door closure.

Integration & Compatibility

The C3LG6 is designed to mate with Panduit's 3-inch wire duct product family. Snap-on covers are system components — they're engineered to the specific duct body profile, so mixing brands or duct widths typically results in covers that won't seat or won't stay seated. Confirm the installed duct SKU is a Panduit 3-inch series before specifying this cover. For cable management accessories including reducers, dividers, and fittings, stay within the same Panduit duct family to maintain consistent snap retention across the installation. This cover is an indoor-rated component — it is not designed for outdoor or wet-location use. For panel builders sourcing through a wire duct covers program, the C3LG6 is a standard catalog item that ships with other Panduit duct components.

Frequently Asked Questions

Q: What duct width does the C3LG6 fit?

A: The C3LG6 is designed for 3-inch (76.2 mm) wide Panduit wire duct. The cover's overall width is 82.6 mm. It is not a universal cover — confirm your installed duct is Panduit 3-inch series before ordering.

Q: How does the C3LG6 attach — does it require screws or tools?

A: It uses a snap-on mount method. No tools, screws, or additional hardware are required. The cover seats onto the duct body with hand pressure.

Q: What is the flame rating for the C3LG6?

A: The C3LG6 carries a UL94 V-0 flammability rating — the most stringent vertical burn classification. The material self-extinguishes and does not drip flaming particles, meeting the requirements of most electrical panel and building codes that specify V-0 materials.

Q: What certifications does the C3LG6 carry?

A: UL Recognized, CSA Certified, CE Compliant, and RoHS Compliant. This covers North American panel requirements plus European CE/RoHS directives.

Q: What is the maximum operating temperature for the C3LG6?

A: The maximum continuous operating temperature is 122°F (50°C). It is suitable for typical commercial and industrial panel interiors. Verify cabinet thermal conditions if your environment exceeds 50°C continuously.

Q: Can the C3LG6 be used outdoors?

A: No. The C3LG6 is an indoor-rated PVC duct cover. It is not rated for outdoor, wet-location, or direct exposure installations.

Marty Allison

The C3LG6 is one of those parts that seems trivial until you're standing in front of a half-built panel trying to source a matching cover — get the duct body and cover SKUs aligned at the BOM stage. The snap-on profile here is engineered specifically to the 3-inch Panduit duct series (82.6 mm overall cover width), and the UL94 V-0 rating means it satisfies panel fire-containment requirements without any separate documentation chase.

Technical Highlights:

• UL94 V-0 Flame Classification: Self-extinguishes in under 10 seconds with no flaming drip — the V-0 designation satisfies the fire-material clauses in NEC panel enclosure specs and most integrator project submittals without additional testing documentation.
• 50°C (122°F) Continuous Rating: PVC duct covers in control panels can see elevated temps from adjacent heat-producing equipment. The 50°C ceiling covers the majority of commercial panel builds, but worth cross-checking against cabinet thermal audits in dense VFD or power-electronics environments.
• 6-Foot (1.8 m) Sections: Longer sections mean fewer cover-to-cover joints per run. In a tall 42U or 84U panel with multiple vertical duct runs, fewer joints translates directly to a cleaner build and less fussing with alignment during cable pulls.

Deployment Considerations:

• Snap-on covers seat by hand but require the mating Panduit 3-inch duct body — do not mix with other manufacturers' duct or the snap geometry won't engage correctly. Confirm duct SKU family before issuing purchase orders, especially on renovation projects where the existing duct may be from a different series.
• Maximum continuous temperature is 50°C — confirm cabinet airflow is sufficient if you're installing near high-density power components. Exceeding the rated temp long-term can cause PVC to soften and lose snap retention over time.

For panel builders standardizing on Panduit duct infrastructure in commercial security or industrial control enclosures, the C3LG6 is the correct cover to pair with 3-inch duct runs — particularly on builds where UL94 V-0 and CSA compliance appear on the project specification sheet.
