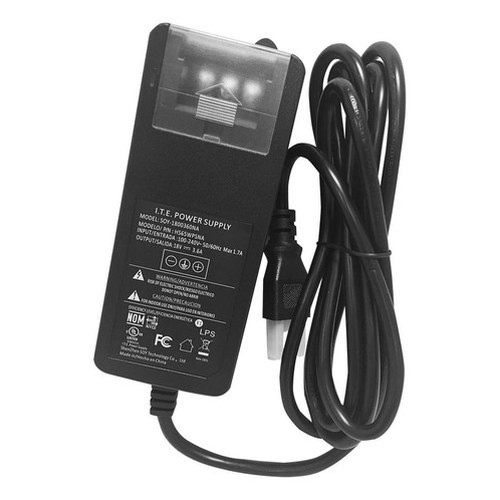

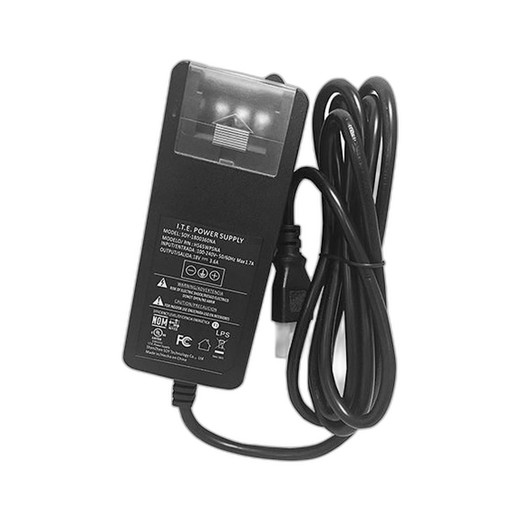

DSC HS65WPSNA Wall-Mounted Power Supply
The DSC HS65WPSNA is a compact, wall-mounted power supply engineered for security systems, access control installations, and integrated building automation applications. This unit delivers regulated 12 VDC output at 3.5 amperes, making it suitable for powering door locks, readers, intercoms, and supplementary security peripherals in small-to-medium installations. The HS65WPSNA accepts standard 16.5 VAC input and converts it to clean, stable 12 VDC output, essential for maintaining reliable operation across temperature-sensitive electronic components.
Key Features
- Output Voltage: 12 VDC regulated, suitable for access control readers, electric strikes, and auxiliary security devices
- Output Current: 3.5 A capacity supports multiple door lock controllers and credential readers simultaneously
- Input Voltage: 16.5 VAC standard, compatible with standard transformer circuits and UPS backup systems
- Form Factor: Wall-mount enclosure minimizes floor space and integrates seamlessly into electrical closets and telecommunications racks
- Operating Temperature Range: 0°C to 49°C (32°F to 120°F), suitable for indoor controlled environments and non-climate-critical installations
- Compact Design: Space-efficient profile enables installation alongside other security equipment without requiring dedicated cabinet real estate
Integration & Compatibility
The HS65WPSNA serves as a backbone power module in distributed access control architectures, particularly in small commercial buildings, educational facilities, and multi-tenant properties. Its 3.5 A output capacity accommodates HID iCLASS, Salto, Nedap, and similar credential reader families when deployed in groups of two to four readers per circuit. The unit's 16.5 VAC input integrates directly with existing 24 VAC transformer infrastructure commonly found in alarm system and HVAC control panels, reducing installation complexity in retrofit scenarios. When paired with UPS backup modules or battery backup systems, the HS65WPSNA provides failsafe power continuity for emergency egress scenarios.
Security integrators deploying the HS65WPSNA in single-door or dual-door installations benefit from its straightforward voltage regulation and minimal thermal dissipation. The 12 VDC output remains stable under typical building power fluctuations (±10% mains variation), preventing reader lockouts and credential verification delays common in undersized or poorly regulated supplies. For installations requiring higher amperage—such as larger reader networks, electric strikes with auxiliary solenoids, or integrated intercom systems—a supplementary power distribution module or larger-capacity PSU should be considered.
Environmental Considerations
The 0°C to 49°C operating window positions the HS65WPSNA for deployment in controlled indoor spaces: server rooms, electrical closets, secure entry vestibules, and climate-managed utility areas. Extended outdoor exposure or uninsulated enclosures exceed rated temperature limits and may degrade component lifespan. For perimeter or outdoor reader applications, integrators should specify environmentally hardened power supplies with extended temperature ratings and IP65+ enclosure ratings.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I have specified the DSC HS65WPSNA in numerous small-footprint access control rollouts across retail and office environments. This unit delivers reliable, uninterrupted 12 VDC output with minimal configuration overhead—a practical choice when budget and space constraints limit options.
Technical Highlights:
- Regulated 12 VDC Output: Maintains voltage stability across typical building power variance, eliminating credential reader dropout caused by voltage sag
- 3.5 A Capacity: Sufficient for two to four HID or Salto reader circuits, with headroom for future expansion
- 16.5 VAC Input Compatibility: Integrates seamlessly into existing 24 VAC alarm and control infrastructure without transformer replacement
Deployment Considerations:
- Confirm available AC input capacity before installation; undersized or shared circuits may introduce voltage ripple affecting reader performance
- Position the unit in climate-controlled environments within the 0°C to 49°C operating window to ensure component longevity and prevent thermal shutdown
- For installations exceeding 3.5 A demand (large reader networks or multi-strike configurations), evaluate larger PSU options or secondary distribution modules to avoid nuisance outages
The HS65WPSNA is a dependable foundation for entry-level and mid-market access control systems. Pair it with proper UPS backup for critical egress applications, and verify input circuit capacity before final sign-off.
