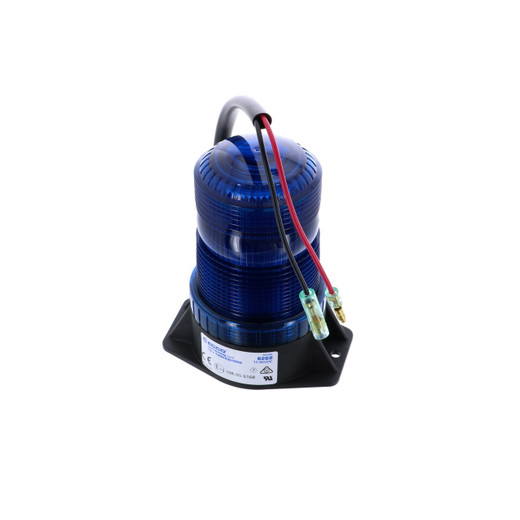

Code Blue 40297 Dome Top LED Strobe Assembly
Overview
The Code Blue 40297 is a dome-mounted LED strobe assembly designed to provide high-visibility alert signaling in security and surveillance installations. Flash rates up to 375 per minute cut through ambient lighting—critical when you need instantaneous operator awareness at access control points, perimeter zones, or emergency response locations. The 40297 operates across -40°F to +158°F (-40°C to +70°C), handling both indoor and outdoor temperature extremes without performance degradation. At 2.2 lbs with a 5.5-inch dome footprint, it integrates into existing security architectures as a triggered visual beacon—fired by access control systems, VMS alarms, or dedicated strobe controllers.
Compatibility
The 40297 functions as a standalone visual alert device for any security system architecture—access control panels, video management platforms, or alarm control modules that output a trigger signal. It is not camera-specific; rather, it pairs with control systems that manage alert workflows. Common integration points include entrance vestibules, server room doors, sensitive storage areas, and perimeter fence lines where visual notification of security events is mandatory. Consult the strobe's electrical specifications (12–24V AC/DC input) against your control system's output voltage and trigger relay capacity to confirm compatibility.
Installation Notes
The dome assembly is rated IP56, meaning direct water spray and dust ingress are blocked—suitable for outdoor mounting under eaves or semi-protected locations. Do not rely on IP56 for full submersion or high-pressure wash scenarios. Operating temperature range of -40°F to +158°F permits year-round installation in extreme climates. The unit draws power from 12–24V AC/DC input; confirm your control panel can supply the required amperage. Flash mode selection (21 modes available) typically requires physical switch configuration or controller software assignment at installation. UL 62368-1 and NEMA 4 compliance verify electrical safety and enclosure robustness for commercial deployments.
