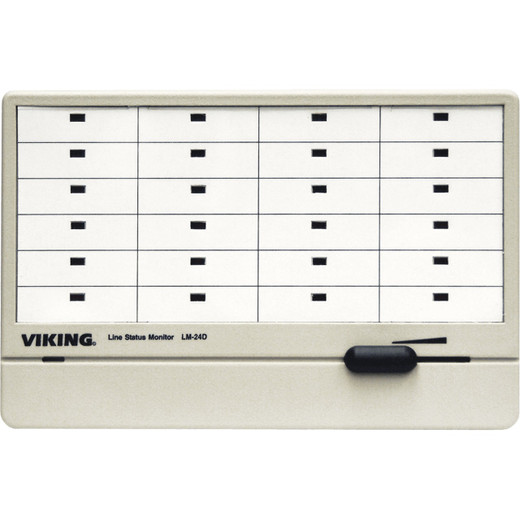

Viking Electronics LM-24D Line Status Display

The Viking Electronics LM-24D is a dedicated line status display designed to work alongside the Viking LC-6 Line Concentrator, giving technicians and front-desk operators a clear, at-a-glance view of port activity across every connected line. If you're deploying an LC-6-based intercom or telephone entry system and need a remote monitoring point — without pulling a separate control run or adding software overhead — the LM-24D is the straightforward hardware answer. It ships as a self-contained unit with a single RJ11 connection, adjustable audio volume, and a compact 7.25" × 4.7" footprint that fits easily on a reception desk or security console.

Key Features

• LC-6 Line Concentrator Status Monitoring: The LM-24D is purpose-built to display the status of all ports on a Viking LC-6 Line Concentrator — not a generic status board. If your deployment centers on an LC-6, this display gives operators real-time visibility into every port state without requiring access to the concentrator itself. That matters in facilities where the LC-6 is mounted in a telecom closet but operators need status on the floor.
• Adjustable Audio Volume: On-board volume adjustment means the audible alert can be tuned to the ambient noise level of the installation environment — useful in noisy lobbies or quiet administrative offices where a fixed-volume buzzer would either go unheard or cause complaints. Set it once during commissioning and it stays put.
• Single RJ11 Connection: One RJ11 jack handles the entire interface. No multi-conductor control wiring, no proprietary connector. If you have phone-grade cabling already run to the display location, installation is a matter of terminating that run — field time is minimal.
• Flexible Multi-Display Cabling Distances: Distance limits vary by configuration: a single display runs up to 500 ft on 24 AWG wire, two displays drop to 400 ft, and three displays to 200 ft. Plan your wire run against these numbers before roughing in — a three-display lobby installation at 250 ft is within spec; at 450 ft it isn't. Use 24 AWG as the minimum gauge; heavier wire won't hurt but won't extend the limits.
• Compact Desktop Footprint: At 7.25" × 4.7" × 1.5" (184mm × 119mm × 38mm) and 1.3 lbs, the LM-24D sits on any surface without consuming desk space. The shallow 1.5" depth also means it can be flush-mounted in a shallow recess if the installation requires a cleaner appearance.
• Controlled Operating Environment: Rated 32°F to 90°F (0°C to 32°C) with 5% to 95% non-condensing humidity. This is an indoor unit — don't install it in unheated vestibules, mechanical rooms, or anywhere temperature swings below freezing or above 90°F. The humidity range covers all typical occupied interior spaces, including coastal or humid-climate facilities, as long as condensation isn't forming on the unit.
• Two-Year Limited Warranty: Viking Electronics backs the LM-24D with a two-year limited warranty — solid coverage for a display peripheral in a commercial deployment.

Integration & Compatibility

The LM-24D (sometimes searched as LM 24D) is explicitly designed for use with the Viking LC-6 Line Concentrator. It is not a standalone line monitor or a universal telephone status display — compatibility outside the LC-6 ecosystem is not documented in available evidence, and you should not assume it will function correctly with other concentrators or telephone systems without verification from Viking technical support.

Multiple LM-24D displays can be wired in parallel on the same LC-6, subject to the distance constraints above: one display at up to 500 ft, two at up to 400 ft, three at up to 200 ft, all on 24 AWG wire. For larger facilities where a reception desk and a secondary security station both need visibility, a two-display run is straightforward as long as total wire length stays inside the 400 ft envelope. Explore the full Viking Electronics communications line for compatible entry systems, intercoms, and line equipment that pair with this display.

For facilities deploying structured telephone entry or access control systems where line status monitoring is part of the operator workflow, the LM-24D integrates into the console without additional hardware beyond the RJ11 run. Pairing it with a Viking intercom system and an LC-6 concentrator gives operators full port-by-port status visibility at the reception point. If your project also involves telephone entry systems, confirm the LC-6 is in the signal path before specifying this display.

Frequently Asked Questions

Q: What does the LM-24D actually display?

A: The LM-24D shows the status of all ports on a Viking LC-6 Line Concentrator. It is purpose-built for that specific unit — it monitors which lines on the LC-6 are active, giving remote operators visibility into port state without being physically at the concentrator.

Q: How far can I run the LM-24D from the LC-6?

A: Distance depends on how many displays are on the run. One display: up to 500 ft on 24 AWG wire. Two displays: up to 400 ft. Three displays: up to 200 ft. These are maximums — stay inside them and use 24 AWG minimum gauge.

Q: Can I install more than one LM-24D on the same LC-6?

A: Yes, up to three displays can be connected, subject to the distance limits above. At three displays, the maximum run drops to 200 ft on 24 AWG wire.

Q: What is the warranty on the LM-24D?

A: Viking Electronics covers the LM-24D with a two-year limited warranty.

Q: Is the LM-24D suitable for outdoor installation?

A: No. The LM-24D is rated for 32°F to 90°F (0°C to 32°C) operating temperature with non-condensing humidity. It is an indoor unit only — do not install it in unheated spaces, vestibules, or any environment subject to freezing temperatures or condensation.

Q: What connection type does the LM-24D use?

A: A single RJ11 jack. Standard telephone-grade wiring at 24 AWG is all that's required for the data/signal run from the LC-6.

Ted Perry

The LM-24D solves a specific problem: your LC-6 Line Concentrator is in a closet, but the operator who needs to know whether a door line is active is at a reception desk 300 feet away. The display's single RJ11 interface and 500 ft maximum single-display run on 24 AWG makes that scenario completely straightforward to wire — no conduit rethink, no special cable, just a standard phone run.

Technical Highlights:

• 500 ft single-display run distance: On 24 AWG wire, one LM-24D reaches 500 ft from the LC-6 — enough for most single-building deployments without upsizing wire gauge or adding signal boosters.
• Adjustable audio volume: Field-adjustable alert volume matters in mixed-use buildings where the display might sit in a quiet admin area one week and a busy lobby the next. Set it at commissioning, not after the first noise complaint.
• Compact form factor — 7.25" × 4.7" × 1.5": At 1.5" deep and 1.3 lbs, it drops onto any desk surface or fits in a shallow equipment shelf without dedicated mounting hardware.

Deployment Considerations:

• Multi-display runs cut distance significantly — going from one to three displays drops your maximum run from 500 ft to 200 ft. Map your wire paths before roughing in; retrofitting a longer run after the fact is the most avoidable job-site problem on this product.
• The 90°F upper operating limit is tighter than most commercial interiors, but watch for equipment rooms, server closets, or south-facing reception windows in summer where ambient temps can spike. This is an indoor-only unit with no thermal headroom for uncontrolled environments.

The LM-24D is the right specification for a staffed reception or security desk in a commercial building where the LC-6 concentrator is remotely located — school main offices, multi-tenant lobbies, or healthcare facility entry points where operators need persistent line status without walking to the telecom room.
