Digital Watchdog DWC-VFJUNCW Junction Box White
Overview

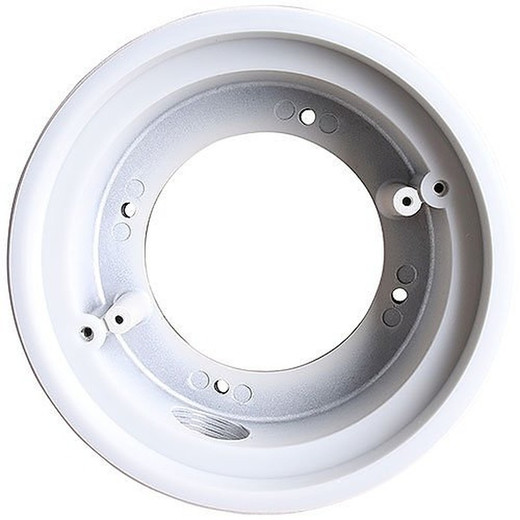

The DWC-VFJUNCW is a purpose-built junction box for securing and organizing cable connections at the point of installation on Digital Watchdog vandal dome and turret cameras. This aluminum housing protects exposed wiring from weather, dirt, and deliberate tampering—common failure modes in retail, industrial, and outdoor deployments where camera placement puts connectors at arm's reach.
Key Features
- Aluminum alloy construction: Resists corrosion in wet or coastal environments and won't degrade like plastic housings do under UV exposure over 3–5 years of service.
- White powder-coated finish: Blends into most interior/exterior architectural schemes without standing out. Easier to keep clean on light-colored surfaces than darker alternatives.
- Side and front 3/4" conduit entrances: Accepts standard electrical conduit fittings, so you're not locked into proprietary connectors. Flexible routing—run cable from below, from the side, or from behind depending on your mounting geometry.
- Spacious interior: Room for multiple cable connections, splice blocks, or terminal connectors without crowding. Reduces the risk of pinched or stressed connections that fail early in service.
- Compatible with Digital Watchdog vandal dome and turret camera lines: Pre-verified fitment means no surprises during rough-in or final assembly. Mounting points align without field modification.
- Professional-grade cable management: Designed for integrators and technicians who need to bundle and label connections neatly. Poor cable management hides faults and slows troubleshooting when problems arise.
Integration & Compatibility
This junction box is engineered for Digital Watchdog's vandal dome and turret camera families. If you're deploying a IP camera system from this manufacturer, verify your specific model's mounting pattern against the product datasheet before ordering—camera mounting lugs and the box's conduit entry points need to align with your bracket configuration. When you're wiring a multi-camera install, consider how many junction boxes you'll need: one per camera is standard practice if each camera sits at a different height or angle, reducing the strain on individual drop cables.
Deployment Context
Junction boxes like the DWC-VFJUNCW address a real pain point in outdoor camera installs: exposed RJ-45 and power connectors at the camera head degrade quickly when exposed to rain, salt spray, or UV-degraded conduit. This housing moves those vulnerable connection points into a weatherproof enclosure. It's not a substitute for proper network video recorder selection or switching infrastructure—but it significantly extends the life of individual camera drops and reduces field failures caused by moisture ingress or vandal damage to the connector interface itself.
When to Choose a Different Model
If you need NEMA 4X (stainless steel) rated protection for corrosive salt-air or chemical environments, or if your installation requires integrated surge suppression or PoE polarity reversal protection, consider a more specialized junction enclosure from Digital Watchdog's industrial line. If conduit entry options beyond 3/4" are required, verify availability before committing to this model. For simple indoor mounting where weather is not a factor, a basic wall-mounted conduit box may be overkill.
Frequently Asked Questions
Q: Is the DWC-VFJUNCW (often searched as DWC VFJUNCW) suitable for coastal or marine installations?
A: The aluminum alloy and powder coat offer good corrosion resistance for typical coastal spray zones. If you're within 500 meters of saltwater and expect heavy salt fog, verify that your supplier has tested this model in equivalent salt-spray conditions (ASTM B117). Stainless steel variants exist for more severe exposures.
Q: Can I mount the DWC-VFJUNCW on a pole or wall, or only on the camera itself?
A: It is designed to mount directly to the camera bracket or housing. Pole or wall mounting is not a standard use case. If you need a standalone junction box at the base of a pole, consider a larger conduit box designed for that application.
Q: Will the 3/4" conduit entrances accept PVC or metal conduit fittings?
A: Standard 3/4" threaded fittings (EMT, rigid, or PVC) will fit. Confirm that your specific fitting brand threads smoothly into the entry ports before installation to avoid cross-threading.
Q: Does the DWC-VFJUNCW include strain relief or cable glands?
A: The box provides the conduit entries. You will need to supply and install conduit fittings (such as strain-relief connectors or liquid-tight fittings) appropriate to your cable gauge and environment.
Q: How do I clean the white finish if it gets dirty during installation?
A: Mild soap and water work well on powder-coated aluminum. Avoid abrasive scrubbers or solvents that can degrade the coat. Install a cap or dust cover during rough-in to minimize dirt accumulation before final commissioning.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The DWC-VFJUNCW solves a specific, recurring headache in camera deployments: the exposed RJ-45 and power connector at the head of a vandal dome or turret becomes a liability the moment UV, rain, or a careless hand find it. This aluminum box moves that vulnerability into a sealed, weatherproof enclosure—a simple detail that often determines whether a camera installation lasts three years or eight.
Technical Highlights:
- Aluminum alloy + powder coat: Won't crack, yellow, or degrade like plastic housings under prolonged UV exposure. Aluminum's thermal conductivity also helps prevent connector corrosion inside the box by minimizing condensation buildup.
- Dual 3/4" conduit entries (side + front): Routing flexibility is underrated. In practice, a camera mounted at an awkward angle or in a tight soffit often requires that side entry option. Standard threaded fittings mean you're not locked into proprietary connectors.
- Spacious interior: Room for multiple drops, splice blocks, and label tape without cramping wires. A cramped box leads to pinched connections and early thermal stress failures.
Deployment Considerations:
- This is a mount-to-camera design, not a standalone pole or wall box. If you need a consolidation point away from the camera, you'll need a different form factor.
- The box itself provides the structure; you supply the conduit fittings. Strain-relief connectors or liquid-tight fittings are essential if your environment sees vibration or wind-driven rain.
Deploy the DWC-VFJUNCW in multi-camera retail or warehouse estates where camera drops run 40–100 feet and connectors sit exposed at height. It's not glamorous, but it is the difference between predictable maintenance and emergency rewires when moisture gets into a connection.
