Bosch DSI 2008 Digital System to System Interface Adapter

Overview

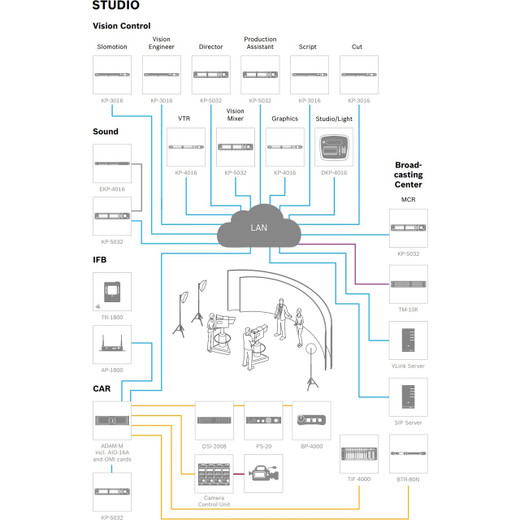

The Bosch DSI 2008 is a compact interface adapter designed to bridge communication between different Bosch security system components. It specifically converts two channels of RTS (Real-Time Streaming) two-wire communication to a standard four-wire interface. This unit is critical for integrating legacy or specific Bosch control panels and peripherals that utilize RTS TW signaling with systems requiring a four-wire connection, ensuring interoperability in complex security deployments.

Compatibility

This adapter is engineered for use with Bosch control panels and devices that employ RTS two-wire signaling. It is intended for integration with specific Bosch alarm and access control systems where a direct four-wire interface is necessary for sensor loops, keypads, or other input/output modules. Consult your system design documentation for exact compatibility with Bosch panels such as the B426-M or similar RTS TW input modules.

Installation Notes

Installation requires careful attention to wiring termination. The DSI 2008 accepts two-wire RTS TW inputs and provides four-wire outputs. Ensure proper polarity is maintained on all connections to prevent system malfunction. The unit is designed for indoor installation within a control panel enclosure or a clean, dry environment. Power is typically supplied by the connected Bosch control panel, drawing minimal current. Verify power requirements against the host system's capacity.
