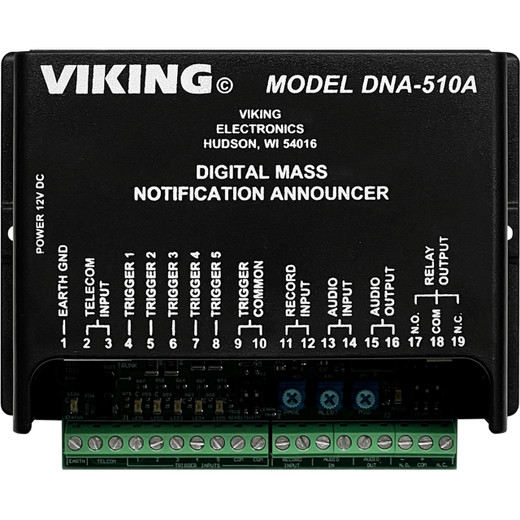

Viking Electronics DNA-510A Digital Mass Notification Announcer

The Viking Electronics DNA-510A is a wall-mount digital mass notification announcer engineered for facilities that need reliable, locally stored emergency audio — no cloud dependency, no network latency. With 5.25 minutes of total digitally recorded message capacity and 10 built-in alert tones, the DNA-510A (often searched as DNA 510A) gives emergency planners enough headroom for multi-zone instruction scripts, evacuation sequencing, or shelter-in-place messaging across a single announcer unit.

Overview

Mass notification in a self-contained package is the design premise here. The DNA-510A stores voice messages at 80 Kbps locally — no server, no VoIP trunk required. When a trigger event fires, the unit plays back the assigned message through a line-level audio output at +8 dBm / 2V RMS across a 600-ohm load, which is clean enough to drive most commercial paging amplifiers directly. The dual-power architecture — 120V AC primary with 12V DC 500mA backup input — means the announcer stays online through a power disruption when paired with an appropriate UPS or DC backup supply. At 1.3 lbs and 5.25" x 3.58" x 1.75", it mounts flush in a standard electrical enclosure or on a backboard without consuming rack space.

Key Features

• 5.25-Minute Total Recording Capacity: The DNA-510A supports up to 5.25 minutes of combined message time — configurable as one full-length recording, two 2.6-minute messages, or three shorter segments. That flexibility matters when you need separate scripts for fire, hazmat, and lockdown events on a single device rather than provisioning three units.
• 10 Alert Tones Built In: Ten selectable alert tones give integrators the ability to assign acoustically distinct signals to different event types before any voice message plays. This is standard practice in life-safety and industrial notification — the tone pattern primes occupants before they hear the instruction, which measurably improves compliance in noisy environments.
• 80 Kbps Sampling Rate: At 80 Kbps, recorded voice is intelligible and consistent across the full message duration — important when instructions include specific assembly points, phone numbers, or procedural steps that cannot be garbled by compression artifacts from an overly aggressive codec.
• +8 dBm / 2V RMS Line Output Across 600 Ohm: This is a balanced, paging-amplifier-compatible output level. Most commercial horn/speaker amplifiers accept a 600-ohm line input directly, so the DNA-510A drops into an existing paging infrastructure without a matching transformer or external level pad.
• Page Trigger Output — 12V DC (20mA) or NO/NC Relay: The trigger output gives you two integration paths: a 12V DC dry voltage signal (up to 20mA) or a dry-contact NO/NC relay closure. That covers both PLC-style inputs on industrial systems and the contact inputs found on most commercial access control and fire alarm panels — you're not locked into one architecture.
• Dual-Source Power — 120V AC / 12V DC 500mA: Primary AC power with a DC backup input is the right design for life-safety applications. During a grid event, the unit transfers to DC without message interruption, provided your backup supply is pre-wired. Maximum consumption is 10 watts, so even a modest UPS covers it for hours.
• 32°F to 90°F Operating Range, 5–95% RH Non-Condensing: Practical for climate-controlled commercial and institutional interiors — lobbies, corridors, warehouses with HVAC. Not rated for unheated outdoor enclosures or environments that regularly drop below freezing.
• Compact Form Factor — 5.25" x 3.58" x 1.75", 1.3 lbs: Small enough to mount inside a standard surface-mount box or behind a wall plate. This keeps the installation tidy and reduces the enclosure cost in retrofit deployments where real estate is tight.

Integration & Compatibility

The DNA-510A integrates into existing paging and emergency notification infrastructure through its line-level audio output and dual trigger paths. The 600-ohm output drives commercial paging amplifiers from most major manufacturers without modification. The NO/NC relay and 12V trigger output connect to fire alarm control panels, access control systems, or any relay-based automation controller. For multi-zone deployments, multiple DNA-510A units can be triggered independently from a central control point, with each unit playing its locally stored message for its assigned zone. Consult the Viking Electronics product line for companion paging and intercom equipment that pairs with this announcer in larger notification systems.

Frequently Asked Questions

Q: Can the DNA-510A store multiple separate messages, or is it one continuous recording?

A: The DNA-510A supports up to 5.25 minutes of total message time, which can be configured as a single recording, two recordings of approximately 2.6 minutes each, or three shorter segments. This allows you to assign different messages to different trigger events on a single unit.

Q: What amplifier or speaker load does the DNA-510A output connect to?

A: The audio output is +8 dBm at 2V RMS across a 600-ohm impedance — a standard balanced line level that feeds commercial paging amplifiers directly. It is not a speaker-level output and should not be connected to a raw horn or speaker without an amplifier in between.

Q: How does the DNA-510A handle a power outage?

A: The unit accepts both 120V AC and 12V DC 500mA inputs. With a DC backup supply or UPS pre-wired to the DC input, the DNA-510A continues operating through an AC power failure. Maximum power draw is 10 watts, so most small UPS units provide several hours of runtime.

Q: What trigger types does the DNA-510A support?

A: Two trigger output types are available: a 12V DC signal (up to 20mA) and a dry-contact NO/NC relay. This covers integration with fire alarm panels, access control systems, PLCs, and relay-based automation controllers without needing additional interface hardware.

Q: Is the DNA-510A suitable for outdoor or unheated enclosure installation?

A: No. The operating temperature range is 32°F to 90°F (0°C to 32°C), and humidity tolerance is 5% to 95% non-condensing. It is designed for climate-controlled commercial interiors. Installations in unheated spaces that experience sub-freezing temperatures are outside the rated operating envelope.

Q: How many alert tones are available, and can they be customized?

A: The DNA-510A includes 10 built-in alert tones selectable by the installer. The evidence does not indicate user-uploadable custom tones — the 10 factory tones are what are available. For custom tone requirements, review the full Viking Electronics product family for models with that capability.

Marty Allison

The DNA-510A is the unit I spec when an integrator needs a standalone mass notification trigger point that doesn't depend on a network path or a server being online during the event that actually matters. With 5.25 minutes of onboard message storage and dual AC/DC power inputs, it stays operational through the scenarios you're actually building the system for.

Technical Highlights:

• 5.25-Minute Message Capacity: Enough to script three discrete emergency instruction sets on one device — fire evacuation, shelter-in-place, and hazmat response can each get their own segment without adding hardware.
• Dual Trigger Output: The 12V DC (20mA) and NO/NC relay outputs in parallel means you're writing one wiring spec that covers both PLC-style discrete inputs and traditional fire alarm dry contacts — no interface relay required in most installs.
• 10-Watt Maximum Draw: At 10W on a 12V DC backup input, a 7Ah sealed lead-acid battery gives you well over 8 hours of standby — long enough for any credible emergency scenario without oversizing the backup power supply.

Deployment Considerations:

• The 600-ohm line output at +8 dBm integrates cleanly with commercial paging amps, but verify your amp's input impedance matches before finalizing the wiring diagram — a mismatched low-impedance input will load down the output and reduce level.
• Operating temperature ceiling is 90°F. In mechanical rooms, attic-adjacent spaces, or server rooms with intermittent cooling, measure ambient before mounting — this unit is not rated for environments that routinely exceed that threshold.

The DNA-510A earns its place in K-12 school buildings, community college campuses, and mid-size commercial facilities where the emergency notification budget doesn't support a full IP-networked paging system but the liability of a silent building during an event is unacceptable. It does one job and does it without dependencies.
