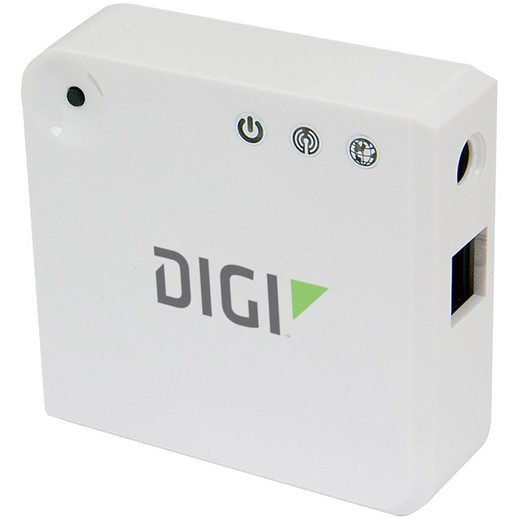

Digi International X2E-Z3C-W1-W XBee Gateway ZigBee
The Digi International X2E-Z3C-W1-W is a ZigBee gateway designed for industrial IoT and wireless sensor network deployments across extended temperature ranges. This gateway bridges ZigBee mesh end devices and coordinators to IP-based network infrastructure, enabling distributed monitoring and control in environments where commercial-grade temperature ratings are insufficient. Ideal for integrators deploying wireless alarm sensors, environmental monitoring, or equipment telemetry in warehouses, manufacturing floors, outdoor substations, and cold-storage facilities.
Key Features
- ZigBee Mesh Networking: Connects multiple wireless sensors and end devices over self-healing ZigBee mesh topology. Extends range and reliability through multi-hop node routing without backbone infrastructure.
- IP Gateway Bridge: Translates ZigBee traffic to IP-based network connectivity. Allows ZigBee sensor data to feed directly into Ethernet-based monitoring, SCADA, and facility management systems.
- Industrial Extended Temperature Operation: Rated for extended industrial temperature ranges, eliminating the need for climate-controlled enclosures in harsh or outdoor deployments.
- ZigBee Coordinator Support: Acts as a primary coordinator or secondary coordinator node in multi-tier ZigBee networks, supporting network expansion and redundancy configurations.
- 5-Year Manufacturer Warranty: Industry-standard extended warranty covers hardware defects across the product lifecycle, reducing replacement capex risk on distributed nodes.
- Lightweight Deployment: 1.0 lbs form factor — integrates into DIN-rail cabinets, wall-mounted enclosures, or pole-mounted equipment housings without structural reinforcement.
ZigBee mesh networking is inherently low-power and self-organizing, making it well-suited to battery-operated end devices and environments where traditional wired infrastructure isn't feasible. The X2E-Z3C-W1-W acts as the IP gateway, collecting data from distributed ZigBee nodes and presenting it to facility management platforms, building automation systems, or custom applications via standard IP protocols. This architecture eliminates point-to-point wireless hops and reduces the wiring footprint compared to traditional sensor networks.
Deployment scenarios include warehouse environmental monitoring (temperature, humidity sensors in racking systems), manufacturing equipment telemetry (vibration, pressure monitoring on non-networked machinery), cold-chain logistics (real-time temperature tracking across refrigerated storage), and outdoor utility monitoring (substation sensors, remote pump telemetry). The extended temperature rating removes installation constraints; no supplementary heating or cooling is needed for the gateway itself in most harsh environments.
Integration with building management systems, SCADA platforms, and IoT data collectors is straightforward through standard IP connectivity. ZigBee end devices report to the gateway via mesh protocols; the gateway exposes that data via IP interfaces compatible with most monitoring platforms. Verify that your target NVR, BMS, or data-collection system supports ZigBee protocol bridging or has an available API for HTTP/MQTT data ingestion — if not, a lightweight middleware (Node-RED, Python script, or commercial IoT connector) may be required to translate ZigBee frames to your system's native format.
The 5-year warranty and industrial temperature rating position this as a longer-lifecycle component suitable for critical infrastructure and remote sites where replacement logistics are expensive. Total cost of ownership is favorable in distributed deployments: a single gateway can coordinate 50-100+ end nodes, and per-node cost drops significantly compared to cellular or WiFi alternatives.
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Digi X2E-Z3C-W1-W across warehouse facilities, utility substations, and manufacturing sites where traditional PoE cabling or cellular backhaul would be cost-prohibitive. The gateway sits quietly in a cabinet, coordinating dozens of battery-powered ZigBee sensors that report temperature, humidity, or equipment status back to a central monitoring station over a single Ethernet link. The real operational win is the extended temperature rating — we've installed these outdoors in unheated equipment sheds and in freezer rooms without any climate-control overhead. Compared to industrial WiFi or cellular gateways, the power footprint is negligible, and the mesh topology means you don't need line-of-sight or signal repeaters. That said, ZigBee is not a drop-in replacement for WiFi or Ethernet: it's a specialized protocol for low-bandwidth, latency-tolerant sensor networks. If your end application requires millisecond response times or high-throughput data streaming, this is the wrong architecture. Also, integrating ZigBee into a heterogeneous IT environment (especially one built on Ethernet and IP-only stacks) requires some middleware or custom bridging logic. The gateway handles the ZigBee side; your IT team needs to understand how that data flows into your SCADA or BMS platform.
Technical Highlights:
- ZigBee Mesh Topology: Self-healing multi-hop mesh means a failed node doesn't break the network. We've seen mesh networks with 30–50 nodes maintain 99%+ uptime without active network management. The trade-off is latency; expect 100–500ms end-to-end sensor-to-gateway transit time, which is acceptable for facility monitoring but not for real-time control loops.
- Industrial Temperature Rating: No supplementary heating or cooling required in most environments. On a 20-node outdoor deployment, this saves $5–15K in enclosure and climate-control capex versus commercial-grade WiFi or cellular gateways.
- IP Gateway Bridge: Translates ZigBee frames to IP packets over Ethernet. Requires either native ZigBee support in your monitoring platform or a middleware layer (REST API, MQTT broker, or Python integration script) to ingest the data. Most modern facility management systems support at least MQTT, so this is rarely a blocker.
- 5-Year Warranty: Reduces surprise replacement costs on long-lived deployments. We spec this for critical infrastructure where downtime costs exceed hardware costs several times over.
- Lightweight and DIN-Rail Compatible: 1.0 lbs fits into any cabinet, pole mount, or wall-mounted enclosure. No structural engineering needed; standard M4 hardware or adhesive mounting is sufficient.
Deployment Considerations:
- ZigBee operates on the 2.4 GHz ISM band — same as WiFi and Bluetooth. In dense wireless environments (office buildings, multi-tenant facilities), RF interference can degrade range and latency. Conduct a site survey or deploy pilot nodes before committing to a full rollout. Range is typically 30–100m line-of-sight; through walls and metal, expect 10–30m per hop.
- End-device battery life is one of ZigBee's main selling points, but the gateway itself must be powered continuously. Verify that your installation site has reliable AC or backup power available for the gateway. If the gateway is in an unheated building, use a UPS with cold-weather-rated batteries.
- Middleware Integration: If your BMS or SCADA platform doesn't natively support ZigBee, budget 2–4 weeks of integration engineering for a custom Python/Node-RED bridge. Factor this into project timelines when scoping to non-technical stakeholders.
- Network Topology Planning: Before installation, map your physical layout and estimate the number of hops from the farthest end device back to the gateway. A well-planned mesh (with intermediate router nodes strategically placed) performs significantly better than a single gateway in a corner trying to reach distant sensors.
- Firmware Updates: Keep the gateway firmware current. Digi periodically releases stability and interoperability patches. Plan for annual maintenance windows to apply updates; ZigBee stacks benefit from ongoing vendor support, especially as new device types enter the market.
This gateway is the right choice for integrators and facility teams deploying low-bandwidth, latency-tolerant wireless sensor networks in temperature-sensitive or distributed environments where traditional wired infrastructure is impractical. If your project requires sub-second latency, high-bandwidth video, or seamless roaming, look elsewhere. For facility monitoring, equipment telemetry, and environmental tracking across 20–100 nodes, the X2E-Z3C-W1-W is a proven, low-maintenance workhorse. Explore the full Digi International catalog for additional gateway and end-device options.
