Panduit CD-525 Pan-Term Crimping Tool Die Insert

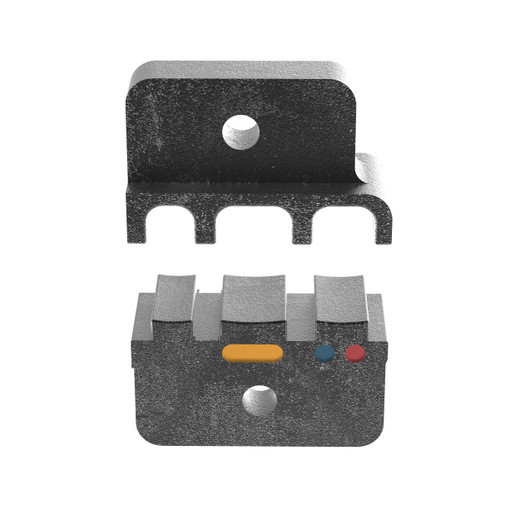

The Panduit CD-525 is a precision-engineered crimping die insert designed for installing Pan-Term connectors across multiple Panduit crimping platforms. Compatible with the CT-2300/ST BlackFin battery-powered crimper, CT-2500/L hydraulic crimper (with CT-2500CH head), and UP14ZLW benchtop press, this die delivers consistent, code-compliant terminations in low-voltage security, data, and electrical installations. The black oxide finish provides corrosion resistance and reduced friction during high-volume termination runs.

Key Features

Cross-platform compatibility with CT-2300/ST, CT-2500/L, and UP14ZLW Panduit crimping tools

Black oxide finish for corrosion resistance and extended service life

Precision die geometry ensures proper compression on Pan-Term connectors

Single-die package for replacement or tool capability expansion

Designed for high-cycle commercial and industrial installations

Proper crimping dies are critical for creating gas-tight, code-compliant electrical connections in security and low-voltage systems. The CD-525's machined die cavity matches the geometry of Pan-Term connector barrels, applying uniform radial compression that cold-welds the conductor to the terminal without damaging stranding. This creates a connection with pull strength exceeding 90% of the conductor's rated capacity while maintaining full conductivity across the termination. The black oxide surface treatment—a conversion coating that penetrates the steel substrate—provides rust resistance in damp mechanical rooms and prevents galling during the thousands of crimp cycles typical in large-scale integrator deployments. Unlike generic aftermarket dies, Panduit's OEM tooling is ground to tolerances that prevent over-crimping (which work-hardens copper and creates brittle joints) and under-crimping (which allows conductor pullout under vibration or thermal cycling).

Integrators running Panduit's CT-series hydraulic crimpers or BlackFin battery tools will need the CD-525 when adding Pan-Term termination capability or replacing worn dies after extended field use. In multi-brand installations where you're standardizing on Pan-Term connectors for battery strings, UPS DC feeders, or grounding systems, this die insert ensures every lug or splice meets the same mechanical and electrical spec regardless of which tech is swinging the crimper. The cross-tool compatibility matters in shops that maintain both benchtop presses for pre-fab work and portable hydraulic crimpers for field terminations—you can swap the same die between platforms without recalibrating or adjusting crimp depth. For data center builds where hundreds of battery interconnects or DC distribution lugs need termination in a single shift, having a spare CD-525 on hand prevents delays if a die chips or wears past inspection limits.

The CD-525's steel construction and black oxide finish are engineered for the 10,000+ cycle duty typical in commercial integration environments, and the precision die profile ensures UL-compliant crimps that pass pull-test inspection without rework. Cross-platform compatibility across Panduit's benchtop, hydraulic, and battery tool families reduces spare-parts inventory and training overhead when your crew runs mixed tooling on large projects.
