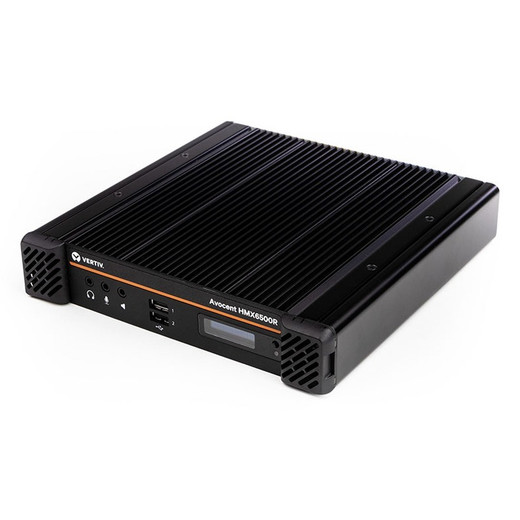

Vertiv HMX6500R-400 High Performance KVM Receiver with VDI

Overview

The Vertiv Avocent HMX6500R-400 is a high-performance KVM receiver that consolidates access to unlimited physical and virtual machines through a single human-machine interface — without requiring additional hardware for each new virtual session. Unlike conventional KVM extenders that demand a dedicated transmitter per source, the HMX6500R-400 embeds Virtual Desktop Infrastructure (VDI) protocols directly in the receiver, letting administrators grant permissions centrally while operators switch instantly between physical and virtual targets. It is designed for demanding environments — broadcast suites, control rooms, and collaborative operator floors — where reliable, low-latency access to multiple sources from a single workstation is the baseline requirement, not a nice-to-have.

For teams evaluating Vertiv KVM and infrastructure solutions, the HMX6500R-400 represents the high-performance tier of the Avocent HMX receiver line. Note that this product was discontinued by the manufacturer on June 9, 2026; remaining stock should be confirmed before placing orders for long-horizon deployments.

Key Features

• Single 1GbE transport for KVM + VDI: All video, audio, and USB 2.0 traffic rides a single Gigabit Ethernet link at 1 Gbps — no secondary cables, no dedicated fiber runs. This simplifies infrastructure in control rooms where cable management is already constrained and structured cabling is already in place.
• Integrated VDI access without added hardware: By incorporating VDI protocols into the receiver itself, the HMX6500R-400 eliminates the need to provision a physical transmitter for every virtual session. An administrator configures access permissions in the management system; users get immediate access to new virtual machines without a rack-side hardware change. In large deployments, this can dramatically reduce the per-session infrastructure cost.
• Unlimited physical and virtual machine switching: Operators can switch between an unrestricted number of physical machines and virtual machines from the same receiver interface — no pre-defined channel limits. For broadcast galleries or process-control rooms where operators routinely jump between sources, this removes a bottleneck that fixed-channel KVM matrices impose.
• USB 2.0 extension: Full USB 2.0 support is included over the 1GbE link, so peripherals — keyboards, mice, and USB devices at the operator desk — communicate cleanly with both physical and virtual targets without latency-induced input lag that undermines operator precision.
• Single-head and dual-head display support: Physical machine sessions support dual-head (two monitors at the receiver desk); virtual machine sessions support single-head display. This distinction is worth noting at the design stage: dual-head VDI is not available simultaneously with dual-head physical — plan your display configuration per workstation accordingly.
• Accessible anywhere on any device: The receiver is designed for flexible access, allowing operators to reach their assigned machines from their own workstation without a dedicated KVM console. In environments where operators hot-desk or shift-rotate, this reduces the need for fixed per-operator console hardware.
• Broadcast, control room, and collaborative environment targeting: The HMX6500R-400 is explicitly positioned for high-demand, mission-critical control environments — not general IT switching. If you are deploying in a 24/7 NOC, broadcast master control, or industrial SCADA workstation cluster, the architecture aligns with those operational patterns.

Integration and Compatibility

The HMX6500R-400 pairs with the Avocent HMX management platform, where virtual machine endpoint permissions are configured centrally. Virtual machines count toward endpoint licensing — factor this into license planning before deployment. The receiver operates over standard 1GbE network switching infrastructure, which simplifies integration into existing enterprise LAN fabric. For organizations building or expanding KVM extension infrastructure, the HMX line supports both physical and virtual targets under a unified management interface, reducing the toolset operators need to learn. Review KVM extender selection considerations when comparing receiver-only deployments versus full matrix deployments for your site.

Frequently Asked Questions

Q: What is the difference between physical machine access and virtual machine access on the HMX6500R-400?

A: Physical machine sessions support dual-head (two monitors) at the receiver workstation. Virtual machine sessions support single-head (one monitor) only. You cannot run dual-head physical and dual-head virtual simultaneously — plan your per-workstation display setup with this constraint in mind.

Q: Does the HMX6500R-400 require a dedicated transmitter for each virtual machine?

A: No. That is the core advantage of the HMX6500R-400's integrated VDI architecture. Virtual machine access is provisioned through the Avocent HMX management system — an administrator enables permissions without installing new hardware at the server or rack. Physical machines still require a transmitter; virtual machines do not.

Q: How many machines can the HMX6500R-400 access simultaneously?

A: The receiver provides access to unlimited physical and virtual machines, switchable from a single operator workstation. There is no fixed channel cap on the number of sources — access is governed by the management system's permission configuration and endpoint licensing.

Q: Do virtual machines consume endpoint licenses on the HMX6500R-400?

A: Yes. Virtual machines count toward endpoint licensing in the Avocent HMX management platform. Budget for VM endpoints when sizing your license pool — particularly in VDI-heavy deployments where the VM count can exceed the physical machine count significantly.

Q: Is the HMX6500R-400 still available for purchase?

A: Vertiv discontinued the HMX6500R-400 on June 9, 2026. Remaining inventory may still be available through distribution channels. Confirm stock availability before committing to a multi-unit deployment — and evaluate whether the application requires a current-production successor model.

Q: What cabling infrastructure does the HMX6500R-400 require?

A: The receiver operates over a single standard 1GbE network connection — the same structured Cat5e/Cat6 cabling already deployed in most enterprise environments. No dedicated fiber, no secondary cables. If your facility has a standard 1GbE LAN infrastructure, no additional cabling investment is required.

Marty Allison

The HMX6500R-400 (often searched as HMX6500R 400) is a receiver I recommend specifically when a control room or broadcast facility needs to reduce per-operator hardware without giving up physical KVM access. The embedded VDI protocol is the differentiator — you get real KVM-grade control over physical machines on the same 1GbE link that carries your virtual sessions, rather than running parallel infrastructure for each access type.

Technical Highlights:

• 1 Gbps single-link transport: Video, audio, and USB 2.0 all ride one GbE connection — no secondary cabling, no dedicated video extender runs. In a dense operator floor this simplifies the structured cabling plan significantly.
• Integrated VDI in the receiver: Virtual machine access requires zero rack-side hardware additions. Permissions are managed in software, so adding a new VM session to an operator's workstation is a configuration change, not a field install.
• USB 2.0 extension: Full USB 2.0 is extended over the IP link, keeping keyboard, mouse, and USB device latency low enough for precise operator interaction — relevant in broadcast and process-control environments where input lag creates real errors.

Deployment Considerations:

• Dual-head display works for physical machine sessions only — virtual machine sessions are limited to single-head. Map this constraint against your operators' actual display needs before committing to a desk layout; a mixed physical/VDI workstation may need a separate monitor managed outside the KVM path.
• This model was discontinued June 9, 2026. For multi-year deployments or large rollouts, verify available stock and check whether Vertiv has released a successor in the HMX line before finalizing procurement — spare availability and firmware support timelines matter for mission-critical control environments.

The HMX6500R-400 is the right fit for broadcast master control galleries and 24/7 NOC deployments where operators need instant switching between physical SCADA or broadcast servers and a high-density pool of virtual machines — all without dedicated transmitter hardware per VM and without leaving the 1GbE network fabric they already have.
