Description

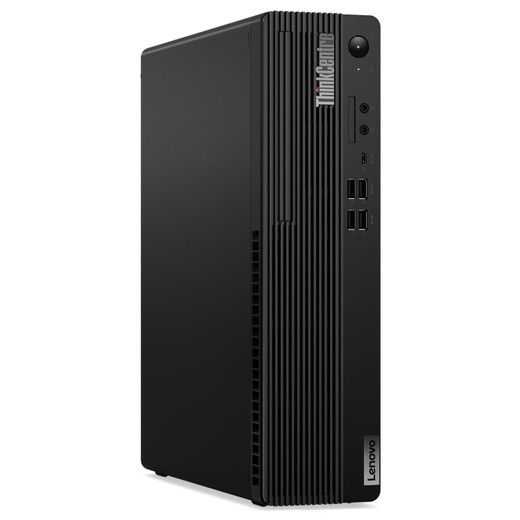

Lenovo 12V4000CUS ThinkCentre M90s Gen 5 Desktop Workstation

Overview

The Lenovo ThinkCentre M90s Gen 5 desktop, model 12V4000CUS, is engineered for demanding business environments. It features an Intel Core i5-14500 vPro processor with Ecores reaching up to 3.70GHz and 24MB cache, providing robust performance for multitasking and complex applications. This system is pre-loaded with Windows 11 Pro 64-bit, offering advanced security and management features essential for enterprise deployment. The compact slim form factor saves valuable desk space without compromising on power or expandability.

Compatibility

This desktop is designed as a versatile workstation compatible with a wide range of business peripherals and network infrastructure. It supports standard USB devices, Bluetooth 5.1 or above, and Intel AX211 vPro Wi-Fi 6E for reliable wireless connectivity. The inclusion of a Slim DVD RAMBO drive offers optical media compatibility. It is suitable for integration into existing IT environments requiring a stable, high-performance computing platform for applications such as video surveillance management software, data analysis, or CAD.

Installation Notes

The Lenovo 12V4000CUS comes with a 3-Year Onsite warranty, ensuring prompt support for hardware issues. Its traditional desktop design facilitates easy placement and access to ports. The system includes a 256GB M.2 2280 PCIe Gen4 TLC Opal SSD, delivering rapid boot times and application loading, crucial for efficient workflow in security operations centers or IT departments.

What's in the Box

  • 1x Lenovo ThinkCentre M90s Gen 5 Desktop (12V4000CUS)
  • 1x Power Cord
  • 1x Keyboard
  • 1x Mouse
  • 1x Windows 11 Pro 64-bit
  • 1x User Guide
Specifications
Overview: ThinkCentre M90s Gen 5, Intel Core i514500 vPro Ecores up to 3.70GHz, 24MB, Windows 11 Pro 64, 32.0GB, 1x256GB SSD M.2 2280 PCIe Gen4 TLC Opal, Intel UHD Graphics 770, Slim DVD RAMBO, BT 5.1 or above, Intel AX211vPro, 3 Year Onsite, USB, Traditional,
Processor: Intel Core i5-14500, 14C (6P + 8E) / 20T, P-core 2.6 / 5.0GHz, E-core 1.9 / 3.7GHz, 24MB Intel Smart Cache
Graphics: Integrated Intel UHD Graphics 770
Chipset: Intel Q670 Chipset
Memory: 2x 16GB UDIMM DDR5-4400
Memory Slots: Four DDR5 UDIMM slots, dual-channel capable
Max Memory: Up to 128GB DDR5
Storage: 256GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0
Max Storage: Up to four drives, 1x 3.5" HDD + 1x 2.5" HDD + 2x M.2 SSD • 3.5" HDD up to 2TB • 2.5" HDD bay is only for customer self upgrade • M.2 SSD up to 2TB each
Speakers: 1Wx1
Power Supply: 310W 92%
Stand: None
Dimensions (WxDxH: 92.5 x 297.7 x 339.5 mm (3.6 x 11.7 x 13.4 inches)
Weight: Around 5.3 kg (11.7 lbs)
Wireless: Intel Wi-Fi 6E AX211, 802.11ax 2x2 + BT5.3, vPro
Ethernet: Integrated 100/1000M
Front Ports: 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with 15W charging; 2x USB-A (USB 5Gbps / USB 3.2 Gen 1); 2x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x headphone / microphone combo jack (3.5mm); 1x microphone (3.5mm)
Ports: 4x USB-A (USB 5Gbps / USB 3.2 Gen 1); 1x HDMI 2.1 TMDS; 2x DisplayPort 1.4a (HBR2, DSC); 1x Ethernet (RJ-45); 1x line-out (3.5mm)
Security Chip: Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Warranty: 3-year, Onsite
Operating System: Windows 11 Pro, English
Prop 65 Warning: WARNING: This product can expose you to chemicals including Both, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Country of Origin: Mexico
UNSPSC: 43211508
Q&A
Reviews

Lenovo Desktop TC M90S GEN 5 I514500 32G N W11P - 12V4000CUS

$2,229.00
$2,228.99
