Description

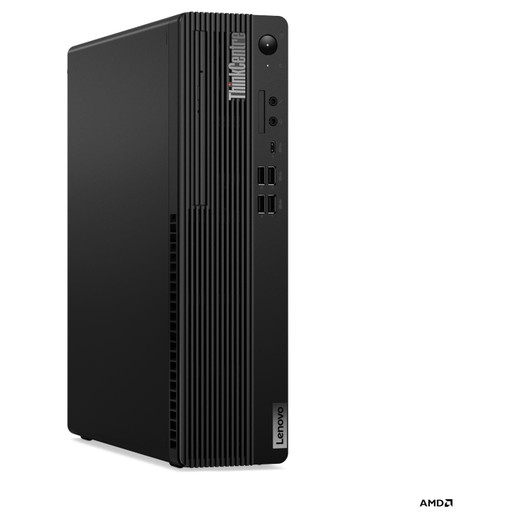

Lenovo 12TA0016US Desktop TC M75S GEN 5 A5P8600G 32G N W11

Overview

The Lenovo ThinkCentre M75s Gen 5, model 12TA0016US, is a compact desktop workstation designed for demanding business environments. It provides the processing power and memory necessary to run multiple applications simultaneously, making it suitable for tasks ranging from general office productivity to more intensive data analysis and CAD work. Its small form factor allows for flexible deployment in space-constrained offices or server rooms.

Compatibility

This system is configured with an AMD Ryzen Pro processor and 32GB of RAM, running Windows 11 Pro. It is designed to integrate with standard business peripherals and network infrastructure. Specific compatibility for surveillance applications would depend on the VMS software and hardware requirements, as this is a general-purpose computing platform, not a dedicated surveillance appliance.

Installation Notes

The M75s Gen 5 features a tool-less chassis for easy internal access, simplifying upgrades or maintenance. It supports standard display connections (HDMI, DisplayPort) and multiple USB ports for peripherals. Network connectivity is provided via Gigabit Ethernet.

What's in the Box

  • 1x Lenovo ThinkCentre M75s Gen 5 Desktop (12TA0016US)
  • 1x Power Cord
  • 1x Keyboard
  • 1x Mouse
  • 1x Windows 11 Pro Recovery Media
Specifications
Overview: DESKTOP TC M75S GEN 5 A5P8600G 32G N W11
Processor: AMD Ryzen 5 PRO 8600G (6C / 12T, 4.3 / 5.0GHz, 6MB L2 / 16MB L3)
Graphics: AMD Radeon RX 6400 4GB GDDR6
Chipset: AMD PRO665 Chipset
Memory: 2x 16GB UDIMM DDR5-5200
Memory Slots: Two DDR5 UDIMM slots, dual-channel capable
Max Memory: Up to 64GB DDR5-5200
Storage: 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0
Max Storage: Up to three drives, 1x 3.5" HDD + 2x M.2 SSD • 3.5" HDD up to 2TB • M.2 SSD up to 2TB each
Speakers: 1Wx1
Power Supply: 260W 90%
Stand: None
Dimensions (WxDxH: 92.5 x 297.7 x 339.5 mm (3.6 x 11.7 x 13.4 inches)
Weight: Around 4.6 kg (10.1 lbs)
Wireless: AMD Wi-Fi 6E RZ616, 802.11ax 2x2 + BT5.3
Ethernet: Integrated 100/1000M
Front Ports: 1x USB-C (USB 5Gbps / USB 3.2 Gen 1), with 15W charging; 4x USB-A (USB 5Gbps / USB 3.2 Gen 1); 1x headphone / microphone combo jack (3.5mm); 1x microphone (3.5mm)
Ports: 4x USB-A (Hi-Speed USB / USB 2.0); 1x HDMI 2.1 TMDS; 2x DisplayPort 1.4a (HBR2, DSC); 1x Ethernet (RJ-45); 1x line-out (3.5mm)
Security Chip: Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Warranty: 3-year, Onsite
Operating System: Windows 11 Pro, English
Country of Origin: Mexico
UNSPSC: 43211508
