Description

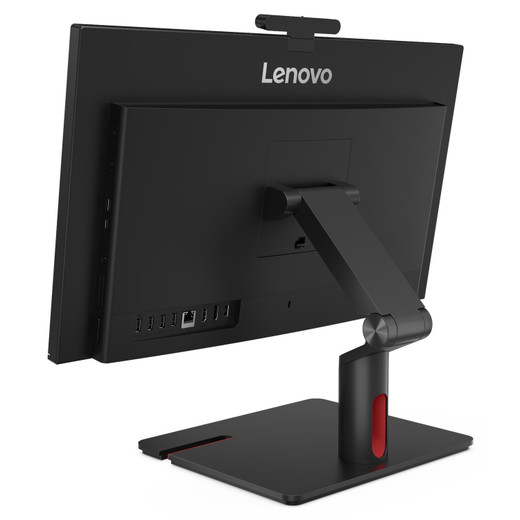

Lenovo 13AY000GUS Desktop TC M70A GEN 6 U7265T 32G 512G W1

Overview

The Lenovo 13AY000GUS is a ThinkCentre M70a Gen 6 All-in-One desktop computer designed for business environments. It integrates a 21.5-inch display with a 12th Gen Intel Core i3 processor, 32GB of RAM, and a 512GB SSD, providing a capable platform for general productivity and surveillance workstation tasks. This model is suited for deployments where a compact, all-in-one form factor is required to minimize desk clutter and simplify setup.

Compatibility

This system is compatible with Windows 11 Pro. It can support multiple monitors via its DisplayPort output. While not a surveillance device itself, its processing power and memory capacity make it suitable for running VMS client software to monitor feeds from various IP camera brands that adhere to ONVIF standards, or specific manufacturer SDKs. It's designed to integrate into standard business IT infrastructure.

Installation Notes

The integrated design means setup involves connecting power and peripherals. The adjustable stand allows for ergonomic positioning. Ensure adequate ventilation around the unit, as it's an all-in-one design where heat dissipation is managed within the chassis. The 512GB SSD offers fast boot times and application loading, crucial for responsive VMS client operation.

What's in the Box

  • 1x Lenovo ThinkCentre M70a Gen 6 (13AY000GUS)
  • 1x Power Cord
  • 1x Keyboard
  • 1x Mouse
Specifications
Overview: DESKTOP TC M70A GEN 6 U7265T 32G 512G W1
Processor: Intel Core Ultra 7 265T, 20C (8P + 12E) / 20T, Max Turbo up to 5.3GHz, 30MB Intel Smart Cache
NPU: Integrated Intel AI Boost, up to 13 TOPS
Graphics: Integrated Intel Graphics
Chipset: Intel Q870 Chipset
Memory: 1x 32GB SODIMM DDR5-5600
Memory Slots: Two DDR5 SODIMM slots, dual-channel capable
Max Memory: Up to 64GB DDR5-5600
Storage: 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0
Max Storage: Up to two drives, 2x M.2 SSD • M.2 SSD up to 1TB each
Speakers: 2Wx2
Camera: 5.0MP + IR Hybrid
Power Supply: 90W 89% Adapter
Display: 23.8" FHD (1920x1080) IPS Anti-glare 250nits, 120Hz, 99% sRGB, hardware low blue light, flicker free, eyesafe, touch
Touchscreen: 10-point Multi-touch
Stand: UltraFlex V Stand
Mounting: VESA mount
Dimensions (WxDxH: Lowest in flat mode: 539.6 x 333.45 x 224.10 mm (21.24 x 13.13 x 8.82 inches) Highest in vertical mode: 539.6 x 264.91 x 455.94 mm (21.24 x 10.43 x 17.95 inches)
Weight: 7.16 kg (15.79 lbs, maximum configuration)
Wireless: Intel Wi-Fi 6E AX211, 802.11ax 2x2 + BT5.3, vPro
Ethernet: Integrated 100/1000M
Ports: 2x USB-A (USB 10Gbps / USB 3.2 Gen 2); 2x USB-A (USB 5Gbps / USB 3.2 Gen 1), one supports Smart Power On; 1x HDMI (HDMI in 1.4 / HDMI out 2.1 TMDS combo port); 1x DisplayPort 1.4a (HBR2); 1x Ethernet (RJ-45)
Security Chip: Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Warranty: 3-year, Onsite
Operating System: Windows 11 Pro, English
Country of Origin: Mexico
UNSPSC: 43211508
