StarTech SFP1GTEMCST Dell EMC Compatible 1GbE Copper SFP Transceiver Module

Overview

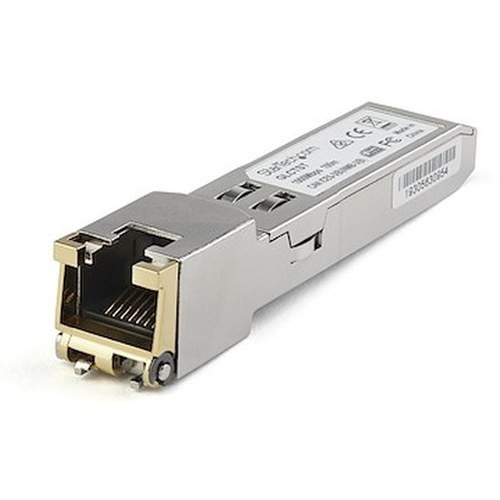

The StarTech SFP1GTEMCST is a 1000BASE-T copper SFP transceiver module designed to drop into Dell EMC switch and router SFP slots and behave identically to the OEM Dell EMC SFP-1G-T. If you're running Dell EMC networking hardware and need to add or replace a copper Gigabit uplink without paying OEM pricing, this is the module to evaluate. It connects via standard RJ-45 — meaning you're running Cat5e or Cat6 copper runs, not fiber — and tops out at 100 meters, which covers the overwhelming majority of horizontal structured cabling installations in commercial buildings and data centers.

Unlike fiber SFP modules that require careful handling of glass connectors and patch panels, the RJ-45 interface on the SFP1GTEMCST plugs directly into standard patch panels, copper switches, and wall jacks. That makes it a practical choice for edge deployments, ToR (top-of-rack) connections, and any scenario where you're connecting a fiber-capable switch to a copper-only device.

Key Features

• 1 Gbps Full-Duplex Throughput: Runs at 1000BASE-T spec — 1 Gbps in both directions simultaneously. This matters in surveillance and IT environments where uplink saturation from concurrent camera streams or backup traffic would throttle a half-duplex link. Full-duplex operation eliminates collision-domain concerns on the segment.
• RJ-45 Copper Interface: Terminates on standard Cat5e/Cat6 copper — no fiber patch cords, no cleaning kits, no LC/SC adapter headaches. If your cable plant is copper, this module lets your SFP-equipped Dell EMC switch speak the same language without a media converter in the path.
• 100-Meter Maximum Reach: Matches the IEEE 802.3ab (1000BASE-T) spec ceiling of 100 meters, which aligns with TIA-568 horizontal cabling limits. If your run is under 100m on quality Cat5e or Cat6, you're within spec. Runs beyond that require a switch or media converter — plan accordingly during rack and stack.
• Dell EMC SFP-1G-T Compatibility: Programmed with the Dell EMC vendor ID so the host switch accepts it without generating unsupported-transceiver errors or requiring CLI overrides. This is the critical difference between a generic SFP and a compatibility-coded module — the switch firmware sees what it expects to see.
• MTBF of 4,655,371 Hours: That calculates to roughly 531 years of mean time between failures — a reliability figure relevant when you're deploying modules across a large switching infrastructure and need confidence in long-term uptime. For a passive copper transceiver, this rating is consistent with commercial-grade silicon and conservative thermal design.
• Compact Form Factor — 58 x 14 x 13 mm, 30 g: Standard SFP mechanical profile means it populates any SFP cage without clearance issues in dense 1U switches. At 30 grams, there's no mechanical stress concern on the SFP port even in vertically mounted chassis.
• Plug-and-Play Installation: No drivers, no firmware updates, no configuration required. Insert the module into the SFP slot, connect your RJ-45 patch cord, and the link negotiates automatically. This keeps deployment time to under two minutes per module in structured cabling environments.

Integration and Compatibility

The SFP1GTEMCST is coded for StarTech's Dell EMC compatibility profile, targeting switches and routers in the Dell EMC PowerSwitch, Force10, and legacy PowerConnect lines that accept SFP-1G-T transceivers. If you're building out network switching infrastructure with Dell EMC hardware and need copper Gigabit ports where your switch only has SFP cages, this module fills that gap directly.

For surveillance network planning, copper SFP modules like this are commonly used at the aggregation layer — connecting an SFP-uplink-only core switch back to a copper distribution switch that feeds PoE closets running IP cameras. They also appear in NVR-to-switch uplinks where the NVR has a copper Gigabit NIC but the switch only has SFP slots available on its uplink ports. If you need guidance on sizing your switching layer for camera bandwidth, the PoE switch buying guide covers uplink planning in detail.

Note that this module operates at 1000BASE-T only — it does not auto-negotiate down to 100BASE-TX or 10BASE-T in standard use. Verify your cabling plant meets Cat5e minimum requirements for the full 100-meter distance at Gigabit speeds before deploying.

Frequently Asked Questions

Q: Will the SFP1GTEMCST work in a Dell EMC PowerSwitch without triggering an unsupported transceiver error?

A: Yes. The SFP1GTEMCST is programmed with the Dell EMC vendor compatibility ID, which tells the switch firmware it's reading a supported transceiver. This prevents the unsupported-module warnings that generic uncoded SFPs often generate in Dell EMC equipment.

Q: What cable category is required to reach the full 100-meter distance?

A: 1000BASE-T requires Cat5e or better (Cat6 preferred for new installations). The 100-meter limit is a hard IEEE 802.3ab spec ceiling — runs beyond that will experience link instability or no-link conditions regardless of cable quality.

Q: Can the SFP1GTEMCST operate in half-duplex mode?

A: No. This module is rated for full-duplex operation only. 1000BASE-T as a standard does not define a half-duplex mode, so this is consistent with the specification — not a limitation unique to this module.

Q: What is the MTBF for the SFP1GTEMCST, and how was it calculated?

A: StarTech rates the SFP1GTEMCST at 4,655,371 hours MTBF. This is a calculated reliability figure based on component-level failure rate modeling, not an observed field measurement — it represents the statistical mean failure interval under normal operating conditions.

Q: Does this module support fiber connections or only copper?

A: Copper only. The SFP1GTEMCST terminates on an RJ-45 connector and operates exclusively over copper cabling (Cat5e/Cat6). For fiber runs, a different SFP module with LC or SC fiber interface would be required.

Q: What are the physical dimensions and weight of the SFP1GTEMCST?

A: The module measures 58mm (W) x 14mm (L) x 13mm (H) and weighs 30 grams — standard SFP mechanical form factor compatible with any SFP cage.

Jerry Tildsen

The SFP1GTEMCST comes up in Dell EMC environments where the integrator needs copper Gigabit uplinks from an SFP-cage-only switch — and the 4,655,371-hour MTBF is worth noting when you're stocking spares or planning refresh cycles across a multi-site deployment. This module is coded specifically for Dell EMC, which is the detail that separates a clean installation from a firmware compatibility argument at 2am.

Technical Highlights:

• Dell EMC Vendor Coding: Programmed to match the Dell EMC SFP-1G-T identity — the switch accepts it without CLI workarounds or unsupported-transceiver alerts that would otherwise require disabling transceiver checking globally (a security risk on managed infrastructure).
• Full-Duplex 1 Gbps: 1000BASE-T full-duplex means the full 1 Gbps is available in both directions simultaneously — relevant on uplinks carrying both inbound camera stream ingress and outbound VMS playback traffic at the same time.
• 100-Meter Copper Reach: Hits the IEEE 802.3ab ceiling at 100m, which maps directly to TIA-568 horizontal run limits. If your structured cabling was installed to standard, you're covered — no fiber conversion needed for in-building runs.

Deployment Considerations:

• Verify the specific Dell EMC switch model accepts SFP-1G-T transceivers before ordering — some Dell EMC platforms use SFP+ slots that are backward-compatible with 1G SFPs, while others have dedicated SFP-only slots. The cage type determines whether a 1G copper SFP populates correctly.
• At 30 grams and standard SFP dimensions (58 x 14 x 13 mm), clearance in high-density 1U switches is not an issue — but confirm your Cat5e runs are under 100 meters with margin, since the 1000BASE-T spec offers no grace beyond that distance.

This module is the right fit for Dell EMC aggregation-layer switches in IP surveillance closets where structured copper cabling connects to NVRs or downstream PoE switches — clean vendor-coded compatibility, no media converters, no fiber plant required.
