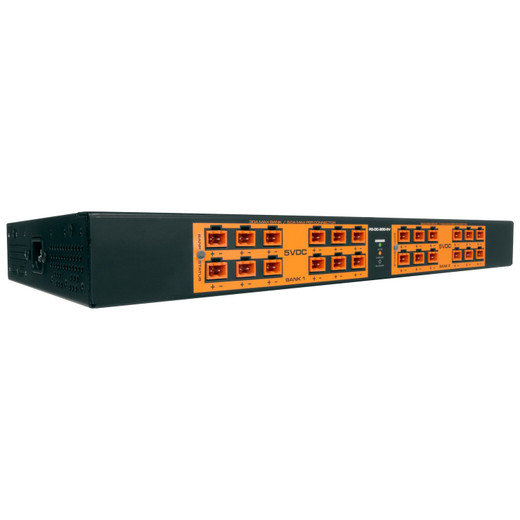

Middle Atlantic PD-DC-200-5V DC Power Distribution Unit — 200W, 24-Outlet, 5V

Overview

The Middle Atlantic PD-DC-200-5V is a 200W DC power distribution unit purpose-built to consolidate low-voltage 5V device feeds in rack and cabinet installations. If your current setup relies on a cluster of wall wart adapters or consumer-grade power strips to power 5V devices — IP intercoms, access control readers, small edge devices, or USB-powered peripherals — this unit replaces that mess with a single, managed 24-outlet DC distribution solution. The PD-DC-200-5V (often searched as PD DC 200 5V) is part of Middle Atlantic's PD series, a line focused on purpose-built power infrastructure for integrated AV, security, and IT enclosures.

Unlike generic power strips, this PDU is engineered for rack environments: it handles up to 200W total load distributed across 24 discrete outlets at a fixed 5V output, with a 10A total current capacity and active thermal management via a thermostatically controlled fan. That fan only spins up when the internal temperature actually demands it — quieter operation in ambient-temperature conditions, and automatic protection when the load and heat climb.

Key Features

• 200W Total Capacity: Supports up to 200 watts across all 24 outlets simultaneously. In practice, that's enough headroom to run 24 devices drawing roughly 8W each — a realistic load for 5V-powered readers, sensors, or edge devices — without tripping the unit or throttling individual outputs.
• 24 Independent Outlets: Twenty-four discrete 5V DC outputs mean you can distribute power to a large number of endpoints from a single rackmount unit, dramatically reducing cable clutter compared to daisy-chained wall warts. Each device gets its own dedicated feed rather than a shared tap.
• Fixed 5V Output: The PD-DC-200-5V delivers a consistent 5V output, which is the correct supply voltage for a wide range of low-voltage devices including USB-compatible edge hardware, access control readers, and compact processing nodes. Fixed-voltage design eliminates mis-configuration risk — no accidental over-voltage from a shared rail.
• 10A Total Current Rating: With 10 amps of capacity shared across all 24 outlets, you have sufficient headroom for typical multi-device security or AV distributions. Budget your per-device draw carefully — devices pulling 0.4A each fill the 10A rail with 25 devices at 5V (200W); the outlet count lets you fill all 24 at moderate per-device draws.
• Thermostatically Controlled Cooling Fan: The unit includes an integrated fan that activates based on internal temperature rather than running continuously. This matters in rack environments where constant fan noise is a concern — the fan only engages when thermal conditions require it, extending fan life and reducing ambient noise during lighter-load periods.
• Eliminates Wall Wart Clutter: Middle Atlantic positions this unit explicitly as a replacement for the tangle of individual power adapters common in multi-device rack builds. A single PDU with 24 outputs consolidates what would otherwise be 24 separate transformer bricks, simplifying cable management, reducing failure points, and making the installation audit-ready.
• Part of the Middle Atlantic PD Series: The PD series from Middle Atlantic — a Legrand Group brand — is designed for system integrators building structured rack and cabinet installations. The series supports mixed-voltage environments, meaning this 5V unit can sit alongside companion units at other voltages in the same rack, optimizing the overall power architecture for installations where multiple DC voltage rails are required.

Integration & Compatibility

The PD-DC-200-5V is designed for rack and cabinet installations where 5V DC distribution is required across multiple endpoints. It is particularly well-suited for installations pairing with power distribution infrastructure in structured security or AV enclosures. Integrators deploying Middle Atlantic rack systems can coordinate this PDU alongside Middle Atlantic UPS units and surge-protected rackmount power solutions to build a complete, managed power stack. For installations with mixed DC voltage requirements, the PD series supports multi-unit configurations — pair this 5V unit with the appropriate companion voltage unit for 12V or other rails rather than relying on single-voltage compromises. When selecting NVRs or access control panels that require 5V auxiliary feeds, this PDU handles the ancillary device power without pulling additional circuits. Consult a power planning guide to size the total load correctly before commissioning — the 10A / 200W ceiling is firm, and adding devices beyond that threshold without accounting for inrush current risks nuisance tripping.

Frequently Asked Questions

Q: How many outlets does the PD-DC-200-5V provide, and what is the per-outlet voltage?

A: The PD-DC-200-5V provides 24 outlets, each delivering a fixed 5V DC output. Total capacity is 200W at 10A across all outlets combined.

Q: Can the PD-DC-200-5V handle devices with different current draws on individual outlets?

A: Yes. The unit distributes up to 10A total across 24 outlets at 5V. Individual device draws can vary, provided the aggregate load across all active outlets does not exceed 200W (10A at 5V). Budget total load before commissioning.

Q: Does the cooling fan run continuously?

A: No. The PD-DC-200-5V uses a thermostatically controlled fan that only activates when the internal temperature requires it. During lighter loads or cooler ambient conditions, the fan remains off.

Q: Is this unit intended to replace wall wart power adapters in a rack installation?

A: Yes. Middle Atlantic designed this PDU specifically to replace the cluster of individual wall wart adapters and consumer power strips common in multi-device rack builds, consolidating 24 separate 5V feeds into a single managed unit.

Q: What brand family does the PD-DC-200-5V belong to?

A: The PD-DC-200-5V is part of Middle Atlantic's PD power distribution series, manufactured under the Legrand Group umbrella. The PD series is purpose-built for structured rack and cabinet installations in security, AV, and IT integration environments.

Q: Can this PDU be used alongside other Middle Atlantic PD units at different voltages in the same rack?

A: The Middle Atlantic PD series is designed to support installations with varying voltage requirements, allowing multiple PD units at different DC voltages to coexist in the same rack enclosure — enabling a clean, organized multi-rail DC power architecture.

James Everett

The PD-DC-200-5V addresses a real pain point I see frequently in access control and small-footprint security rack builds: the back of the enclosure turns into a rat's nest of individual 5V wall warts, each on its own power strip, with no consolidated load visibility and no thermal management. This unit changes that by putting 24 outlets and 200W of 5V DC capacity into a single managed PDU with an onboard thermostatically controlled fan — the kind of infrastructure spec that makes an installation look professional and behave reliably over a multi-year service life.

Technical Highlights:

• 24-Outlet Density at 5V: Twenty-four discrete outputs at a fixed 5V means each connected device gets its own dedicated feed — no shared-rail voltage sag when multiple devices draw simultaneously. At the 10A ceiling, you can sustain roughly 0.4A per port at full population, which covers the vast majority of 5V-powered readers, sensors, and edge nodes.
• 200W / 10A Total Capacity: The 200W ceiling is generous enough for dense installations but firm — inrush current from devices with capacitive loads can briefly spike above steady-state draw, so factor in a 15–20% derating buffer when sizing the load. Don't commission at 100% nameplate on day one.
• Thermostatically Controlled Fan: This is a small detail with real operational impact. A fan that only activates under thermal load lasts longer and keeps the rack quieter during normal operation — relevant in environments like reception desks or small closets where fan noise is noticeable.

Deployment Considerations:

• The 10A total current limit is shared across all 24 outlets. Before installation, audit every device's steady-state and inrush draw and sum them — exceeding the rail under inrush conditions is the most common commissioning mistake with multi-outlet DC PDUs.
• This unit is fixed at 5V output only. If your rack also needs 12V DC feeds (common for cameras, door controllers, or powered locks), you'll need a separate PD series unit at the appropriate voltage — the PD-DC-200-5V cannot be reconfigured for other voltages.

For a security integrator building a structured access control or low-voltage device rack where 5V distribution across 15–24 endpoints is the requirement, the PD-DC-200-5V is a direct fit — particularly in builds where wall wart elimination and thermal-safe operation in a closed enclosure are non-negotiable installation standards.
