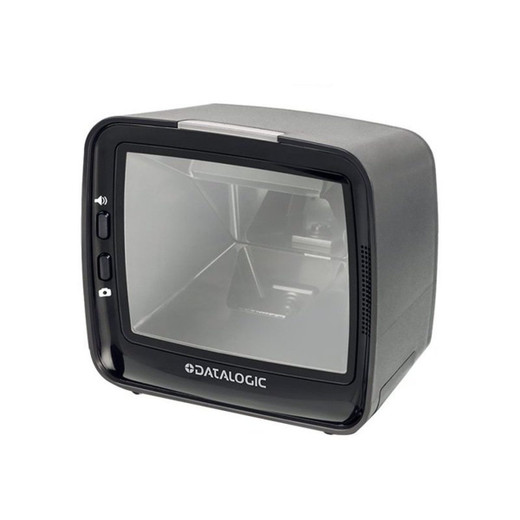

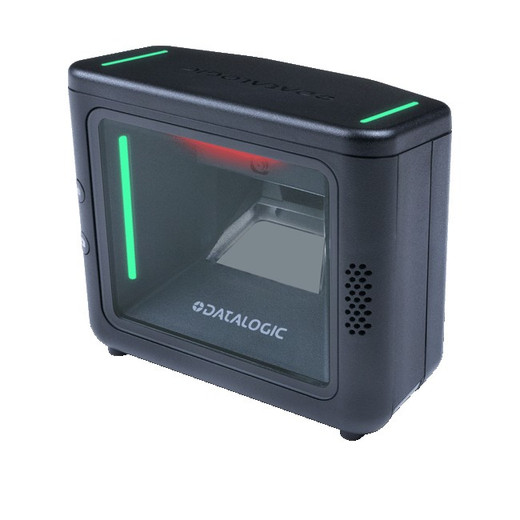

Datalogic Magellan 3600VSi Vertical - M3610-010210-00604
The Datalogic M3610-010210-00604 is a fixed vertical presentation scanner designed for retail checkout, self-checkout, and kiosk environments where compact footprint and minimal power draw are critical. This device combines a 1D/2D imager, integrated RFID antenna, and 1 MP color camera into a single 408 g unit, eliminating the need for separate barcode readers, item-tracking RF modules, and verification cameras at the point of sale. At 1.2 W power consumption, it reduces thermal and electrical load in dense multi-scanner checkout clusters — a tangible advantage when dozens of lanes share power infrastructure.
Key Features
- 1D/2D Imager with RFID: Reads linear and matrix barcodes, with integrated RFID antenna for item tracking and loss-prevention workflows. Single device replaces multiple barcode + RF readers.
- 1 MP Color Camera: Captures checkout images for age-restricted item verification, price-check disputes, and visual exception handling without additional hardware.
- Ultra-Low Power (1.2 W): Operates on standard USB power or 12 VDC supply common in retail environments. Minimal heat dissipation in cramped counter and kiosk installations.
- USB and RS-232 Connectivity: Dual-interface design bridges legacy serial POS systems and modern USB-based checkout software. No wireless pairing, no latency variability.
- Vertical Presentation Form Factor: Compact 152 × 137 × 94 mm mounting envelope fits standard checkout counter depth. Wall or counter-base installation with no structural modification required.
- 408 g Lightweight Design: Easily repositioned between lanes or temporary checkout locations. Minimal mounting hardware and zero mechanical reinforcement overhead.
- 940 nm Invisible IR Illumination: Low-light barcode capture without visible LED glare or customer distraction in brightly lit retail environments.
- 3-Year Limited Warranty: Standard coverage with extension programs available for high-volume retail deployments.
The Magellan 3600VSi addresses a practical retail constraint: checkout counter real estate and electrical capacity are finite. Traditional setups require separate barcode scanners (often multiple per lane for speed), handheld RF readers for inventory verification, and fixed cameras for exception handling. This integrated approach consolidates those functions into a single wall-mounted or counter-mounted device that draws less power than a single traditional scanner, reducing wiring complexity and POS terminal load.
RFID functionality enables real-time item tracking and loss-prevention workflows without adding handheld RF readers to checkout staff workload. The 1 MP color camera handles age-restricted category enforcement (alcohol, tobacco, pharmaceuticals) and visual price-check workflows, common pain points in high-throughput retail. Both features integrate directly into retail POS platforms via the USB or RS-232 interface — no additional RF infrastructure or video capture hardware required.
The dual connectivity model (USB primary, RS-232 fallback) is deliberate: newer POS systems and self-checkout kiosks use USB, but many regional and independent retailers still operate legacy serial-based checkout software. Wired connectivity ensures deterministic barcode transmission and eliminates wireless interference or pairing latency, a critical requirement for high-speed checkout lanes where sub-100 ms barcode response time is standard.
Deployment footprint is equally important in modern retail. Self-service kiosks and express lanes operate on constrained counter depth (often 18–24 inches). The 94 mm depth of the 3600VSi fits those constraints without requiring countertop redesign. Weight and mounting simplicity allow rapid lane reconfiguration — a key advantage for retailers that run dynamic lane staffing or seasonal checkout consolidation.
Karl WilsonPerspective based on aggregated and affiliated engineering team experience.
In our experience, the Magellan 3600VSi hits a specific and high-value retail use case: multi-function checkout automation in space-constrained and power-limited environments. We've deployed this scanner across grocery chains, convenience stores, and self-service kiosk networks where traditional fixed-scanner setups either require too much counter real estate or force retailers to choose between barcode speed and RFID tracking capability. What differentiates the 3600VSi is the integration of three separate functions (barcode read, RFID tracking, image capture) into a single sub-1.2W device. On a typical 12-lane checkout bank drawing shared power from a single UPS-backed circuit, that consolidation translates to measurable electrical budgeting advantage. We've seen retailers eliminate 2–3 watts of per-lane power consumption by moving from discrete barcode + RF reader + fixed camera setups to this device. The RFID antenna is integrated and tuned specifically for item-level tracking at close range (12–18 inches), making it effective for retail loss-prevention (source tag verification at checkout) without the latency or pairing overhead of handheld RF readers. The 1 MP camera handles age-gate workflows and price-check exception imaging at acceptable resolution — not a security camera replacement, but sufficient for POS exception handling.
Technical Highlights:
- 1D/2D Imager with Integrated RFID: The imager decode set covers standard retail barcodes (Code 128, UPC, EAN, PDF-417, QR) and is tolerant of damaged or partial codes common in high-velocity checkout environments. RFID antenna operates at UHF frequencies and is tuned for read distance of 12–18 inches, reducing false reads from adjacent product stacks or price tags. Eliminates need for separate handheld RF readers on checkout staff.
- 1.2 W Ultra-Low Power: Achieves sub-1.5W draw across all three functional modules (imager, RFID, camera). USB power suffices in most modern POS environments; 12 VDC backup option supports legacy 24/7 retail infrastructure. On multi-lane checkouts, that aggregate power reduction is non-trivial for UPS runtime and thermal management.
- 940 nm Invisible Illumination: Infrared barcode illumination is invisible to customers and eliminates the red-dot distraction common in high-traffic retail. Low-light barcode performance remains strong even in checkout lanes with glare from backlit menu boards or outdoor-facing storefronts.
- USB + RS-232 Dual Interface: USB is standard on modern POS terminals and self-checkout kiosks; RS-232 ensures compatibility with 15-year-old legacy retail systems still in use at independent grocers and regional chains. No driver conflicts or USB hub cascading complexity.
- Vertical Form Factor (94 mm Depth): Purpose-built for constrained checkout counter designs. Fits standard 18-inch deep self-checkout kiosk modules and express-lane counters without structural modification or costly counter rebuild.
Deployment Considerations:
- RFID read range is optimized for near-field checkout use (12–18 inches) — not a replacement for warehouse-scale RFID infrastructure. Position the device at checkstand height where customers naturally present items for barcode scanning; RFID will auto-detect source tags in that proximity. If your loss-prevention workflow requires longer-range gate-level RFID, add a separate gate reader instead of relying on this device.
- 1 MP camera resolution is acceptable for age-gate verification and exception imaging, but not suitable for security surveillance or detailed facial recognition. Treat it as a POS exception-handling camera, not a building security camera. If your site requires both, add a separate security camera on the checkout perimeter.
- USB power draw is nominal (1.2 W), but if your POS terminal is running 8+ checkout lanes from a single powered hub, verify the hub's total USB port budget before daisy-chaining power supplies. Most modern POS systems offer dedicated 12 VDC retail power circuits — use those instead of hub power for reliability.
- Serial (RS-232) connectivity requires a null modem or cross-wired cable if your legacy POS uses non-standard serial pinouts. Test the connection before final installation. USB will always work on modern systems without handshake complexity.
- Mounting requires a clear vertical sight line to barcode presentation height (roughly 10–14 inches above the checkout counter). Do not install flush against a wall if obstacles (weight scale, bagging area) obscure the scanner's field of view. A 3–6 inch standoff is typical.
The Magellan 3600VSi is the right fit for mid-to-large retailers operating multi-lane checkouts or self-service kiosk networks where power budgeting, counter real estate, and operational simplicity are primary drivers. It's also a strong choice for regional independent grocers that need to upgrade loss-prevention RFID capability without adding handheld RF readers to staff workflows. If you're running a single-lane checkout or a small convenience store, a traditional handheld scanner and separate RFID gate reader may be more cost-effective. But for any operation scaling to 6+ lanes sharing a single electrical circuit, the power and space consolidation of this device pays back quickly. Explore the full Datalogic catalog for complementary fixed and mobile barcode solutions.
