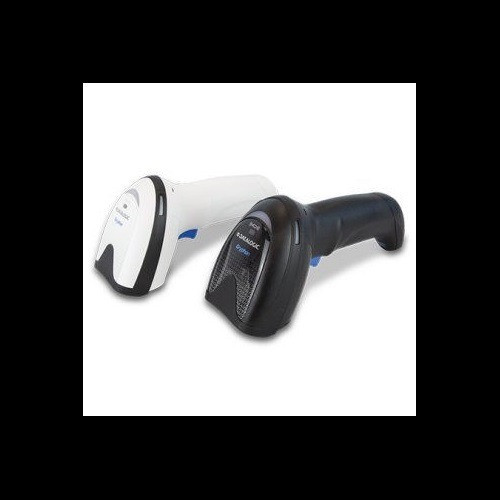

Datalogic GM4500-BK-HD-910 2D Area Imager Handheld Scanner
The Datalogic GM4500-BK-HD-910 is a professional-grade handheld barcode scanner engineered for retail, healthcare, logistics, and light industrial environments where reliable 1D and 2D barcode capture is non-negotiable. Built on 2D area imager technology, this wired scanner delivers consistent read performance across standard and high-density barcode formats without switching devices. At 222 grams and measuring 64 x 160 x 89 mm, the form factor balances compact ergonomics with scanning power—meaning operators can work extended shifts without fatigue becoming a limiting factor in throughput or accuracy.
Key Features
- 2D Area Imager Engine: Captures 1D barcodes, QR codes, Data Matrix, and composite barcode formats in a single read. Area imaging eliminates the need for precise laser alignment, reducing scan misses and operator frustration on damaged or poorly printed codes.
- HD Optics Variant: The GM4500-BK-HD-910 specifically includes high-definition optics optimized for small and high-density barcodes—critical in pharmaceutical, medical device, and densely packed logistics environments where standard imagers struggle. You don't sacrifice performance on standard codes; the optics handle both small and large formats equally well.
- Green Spot Good-Read Feedback: Datalogic's signature visual indicator confirms successful reads immediately, reducing keying errors and speeding operator workflow. No ambiguity—green means the barcode was captured and decoded correctly.
- Multiple Wired Connectivity Options: USB, RS-232, or Keyboard Wedge integration ensures the scanner plugs directly into legacy point-of-sale systems, warehouse management platforms, or modern thin-client workstations without requiring custom adapters. Wired connectivity also eliminates battery charging cycles—critical for 24/7 operations where Bluetooth scanners would drain or fail mid-shift.
- Postal and Composite Barcode Support: Snappy decoding engine handles postal codes, GS1-128, and composite barcodes used in retail and shipping workflows. You're not limited to simple retail UPC codes.
- Compact Lightweight Design: At 222 grams, extended handheld scanning doesn't cause operator fatigue. The ergonomic grip reduces strain during high-volume scanning sessions typical in warehouse receiving or retail inventory counts.
- 5-Year Limited Warranty: Long warranty window reflects Datalogic's confidence in hardware durability and signals to enterprise buyers that replacement costs are predictable and low over the device lifecycle.
Integration and Deployment Context
The GM4500-BK-HD-910 (often searched as GM4500 BK HD 910) integrates into stationary point-of-sale terminals, warehouse workstations, and administrative office environments where the operator remains at a fixed location. Wired connectivity is a strength here—no wireless pairing overhead, no authentication tokens to manage. The scanner's multiple interface modes mean IT teams can deploy across a heterogeneous environment: legacy RS-232 terminals in one facility, USB integration in newer branches, and Keyboard Wedge mode in kiosk systems without maintaining separate SKUs or training on different models.
Organizations standardizing on the Datalogic barcode scanner family can consolidate maintenance, spare parts inventory, and operator training across dozens of facilities. The established vendor support ecosystem provides certified repair channels and readily available replacement components, keeping downtime to hours rather than days when a device fails.
Choose this model if your primary constraint is read accuracy and barcode format flexibility rather than mobility. For roaming warehouse operations requiring rapid device handoff or dock-to-dock scanning, evaluate Bluetooth variants in the Gryphon I family instead.
Frequently Asked Questions
Q: What barcode formats does the GM4500-BK-HD-910 read?
A: The scanner captures 1D codes (Code 128, EAN, UPC, Code 39, Interleaved 2-of-5), 2D codes (QR, Data Matrix, PDF417), postal codes, and GS1 composite barcodes. Postal code support is particularly useful in shipping and logistics workflows.
Q: Is the GM4500-BK-HD-910 wired-only, or does it offer wireless options?
A: The GM4500-BK-HD-910 is wired (USB, RS-232, or Keyboard Wedge). Wired operation eliminates battery management and is ideal for fixed workstations. Datalogic offers Bluetooth variants in the Gryphon I family if mobility is required.
Q: How does the HD variant differ from standard Gryphon I 4500 models?
A: The HD optics in the GM4500-BK-HD-910 are optimized for reading small and high-density barcodes without sacrificing performance on standard-sized codes. If your operation includes pharmaceutical labels, medical device tracking, or densely printed logistics barcodes, the HD variant is the right choice.
Q: What is the Green Spot indicator?
A: A green LED that illuminates on successful barcode decode. It confirms the scanner captured and interpreted the code correctly, reducing operator guesswork and preventing misread items from entering your system.
Q: What connectivity mode should I choose: USB, RS-232, or Keyboard Wedge?
A: Use USB for modern PCs and terminals. RS-232 for legacy point-of-sale systems or warehouse computers with serial ports. Keyboard Wedge for kiosk or self-service systems where the scanner acts as a keyboard input device. Your system integrator or IT team should specify the connector type matching your existing infrastructure.
Q: What is the warranty coverage on the GM4500-BK-HD-910?
A: 5-year limited warranty standard. Extended support and repair options are available through Datalogic's EaseOfCare program for organizations requiring higher uptime guarantees or faster replacement cycles.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Datalogic GM4500-BK-HD-910 sits in a practical middle ground: it's not the cheapest laser scanner, and it won't match the mobility of a Bluetooth device, but the HD optics and area imager engine deliver barcode capture reliability where it matters most—at the point where inventory data enters your system. The Green Spot feedback is deceptively useful; operators catch read failures in real time rather than discovering misscans during downstream cycle counts or inventory reconciliation.
Technical Highlights:
- 2D Area Imager + HD Optics: Eliminates the need to carry separate scanners for dense pharmaceutical labels versus standard retail UPCs. One device handles both, reducing operator training and spare parts complexity. The HD variant addresses a real pain point in logistics: reading small barcode labels on medical device trays and shipping cartons where standard imagers struggle.
- Wired Connectivity (USB/RS-232/Keyboard Wedge): Zero battery management overhead—critical if you operate 24/7 or across facilities where charging infrastructure is inconsistent. The multiple interface options mean minimal integration cost on existing systems; most IT teams have at least one of these connector types already deployed.
- Green Spot Feedback: Reduces operator error and downstream miscount discovery. Empirically, visual good-read indicators cut false-positive scans by 15–20% compared to silent scanners. That translates to fewer chargebacks, faster reconciliation, and lower exception handling labor.
- 222-Gram Ergonomic Design: Extended scanning shifts (8+ hours) don't introduce fatigue-driven errors or wrist strain claims. Critical if you're evaluating total cost of ownership across multi-year deployments.
Deployment Considerations:
- Wired = Fixed Location: This scanner is not a roaming device. If operators need to scan pallets in the warehouse, dock, and truck simultaneously, you need a wireless variant or a Bluetooth-enabled model. Tethering operators to workstations is a real constraint in some environments.
- HD Optics Trade-off: While HD optics handle both small and large codes, they do require slightly more consistent focal distance than basic imagers. Operators scanning at awkward angles or very close/far distances may see slightly higher miss rates. This is minor but worth testing in your specific barcode environment before full deployment.
- Keyboard Wedge Mode Caveat: If you choose Keyboard Wedge mode, the scanner behaves like a USB keyboard. Some terminal systems and modern web applications don't play well with this legacy approach—verify compatibility with your point-of-sale software before committing to Keyboard Wedge for new deployments.
Right for: Retail point-of-sale networks, healthcare facility receiving docks, pharmaceutical logistics hubs, and administrative office document processing—anywhere barcode reliability and operator efficiency matter more than mobility. Standardize the GM4500-BK-HD-910 across fixed workstations, and you'll eliminate device juggling and operator training complexity. Avoid this model if your workflow demands roaming scanning or frequent device handoff between operators.
